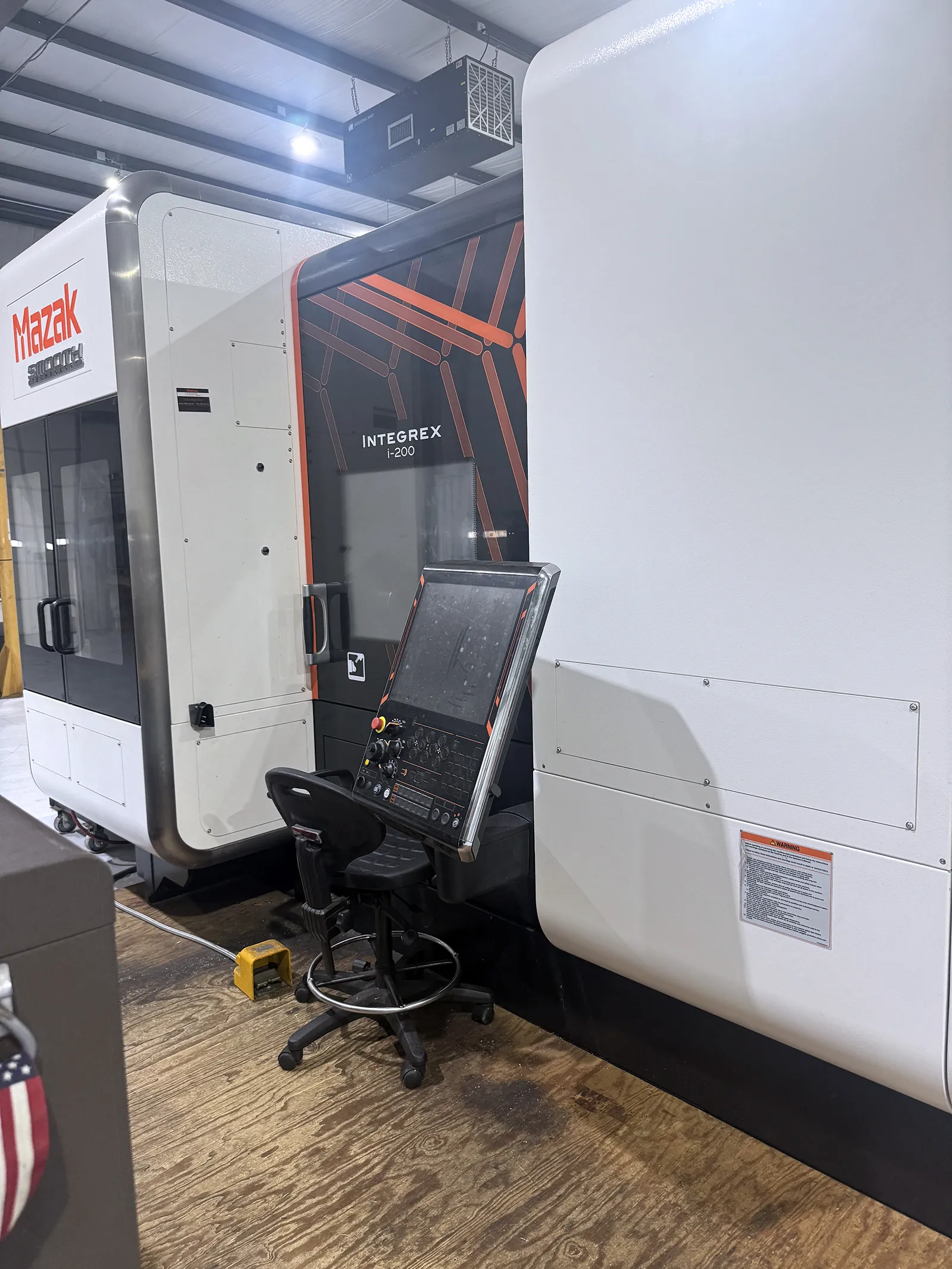

Mazak Integrex I-200 2020

machine specifications

• Swing:

  25.4"

• Max Machining Diameter:

  25.4"

• Max Machining Length:

  39.8"

• X Travel:

  24.21"

• Z Travel:

  42.4"

• Y Travel:

  10.24"

• B Index:

  -30°~210°

• Chuck Size:

  8"

• Main Spindle RPM:

  3300RPM

• Main Spindle Nose:

  A2-8

• Spindle Bore Cap.:

  4.41"

• Milling Spindle Type:

  Single Spindle Turret ATC

• Mill Spindle Speed:

  12,000 RPM

• B Axis Increment:

  .0001°

• Tool Storage Cap.:

  36

• Tailstock Travel:

  40.39"

• Spindle Motor:

  40HP / 30HP

• Milling Spindle Motor:

  30HP / 20HP
