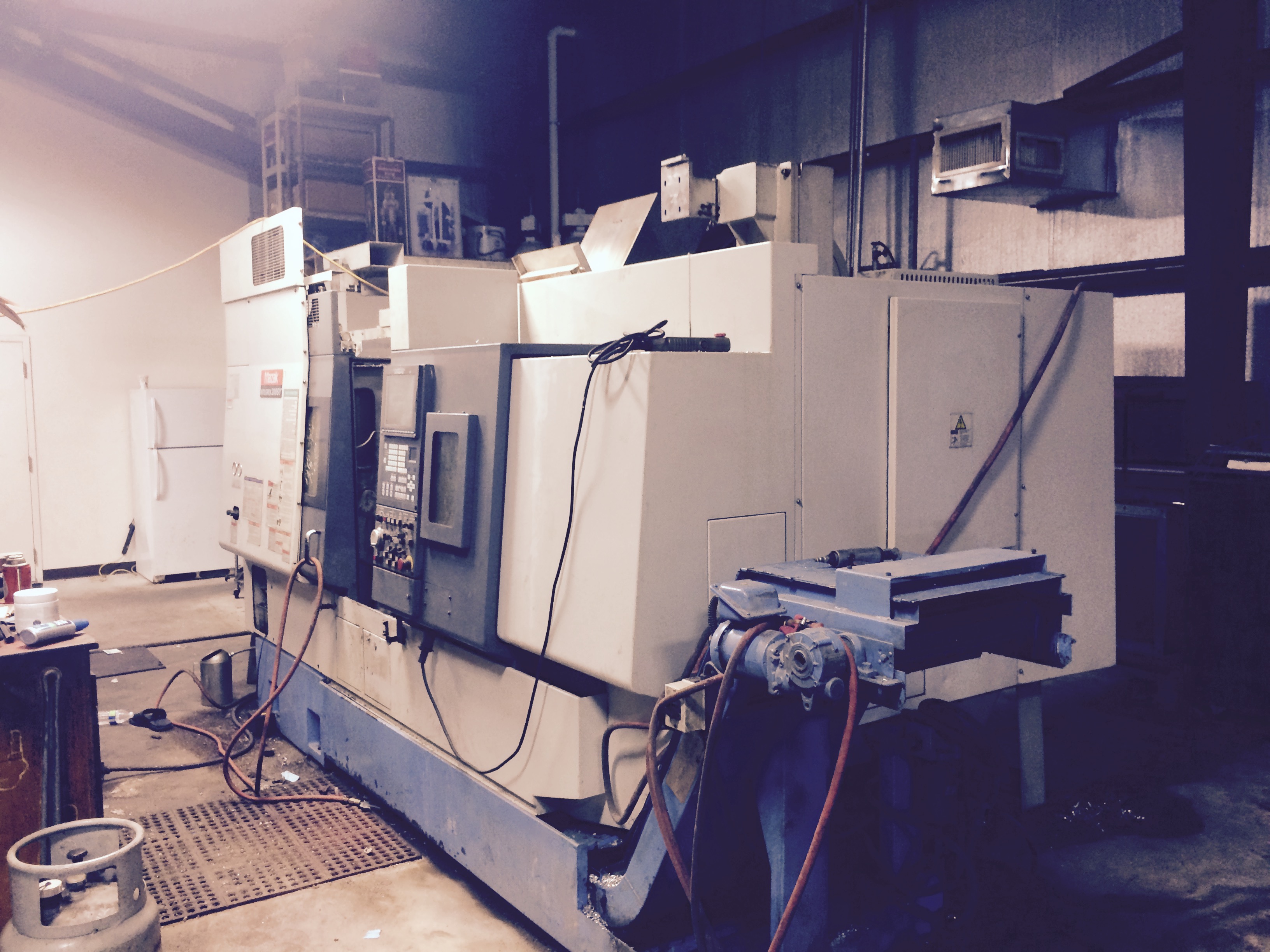

Mazak Integrex 200SY 2000

machine specifications

• Max Swing (inches):

  17.32"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Turret Capacity:

  8 Positions

• Maximum Swing / Over Carriage:

  21.25" / 20.47"

• Maximum Cutting Diameter:

  21.25"

• Spindle Nose / Spindle Bore:

  A2-6" / 2.40"

• Subspindle Speed/Subspd. Travel:

  5000 RPM / 39.56"

• Subspindle Motor:

  10 HP

• Maximum Tool Diameter/Length/Weight:

  4.72" / 9.84" / 15 Lbs

• Rotary Tool Spindle Speed:

  6000 RPM

• Rotary Tool Horsepower:

  10 HP

• Rapid Traverse X / Y / Z:

  1181/590/1299 IPM

• Rapid Traverse C / 2nd Spindle:

  400/787 IPM
