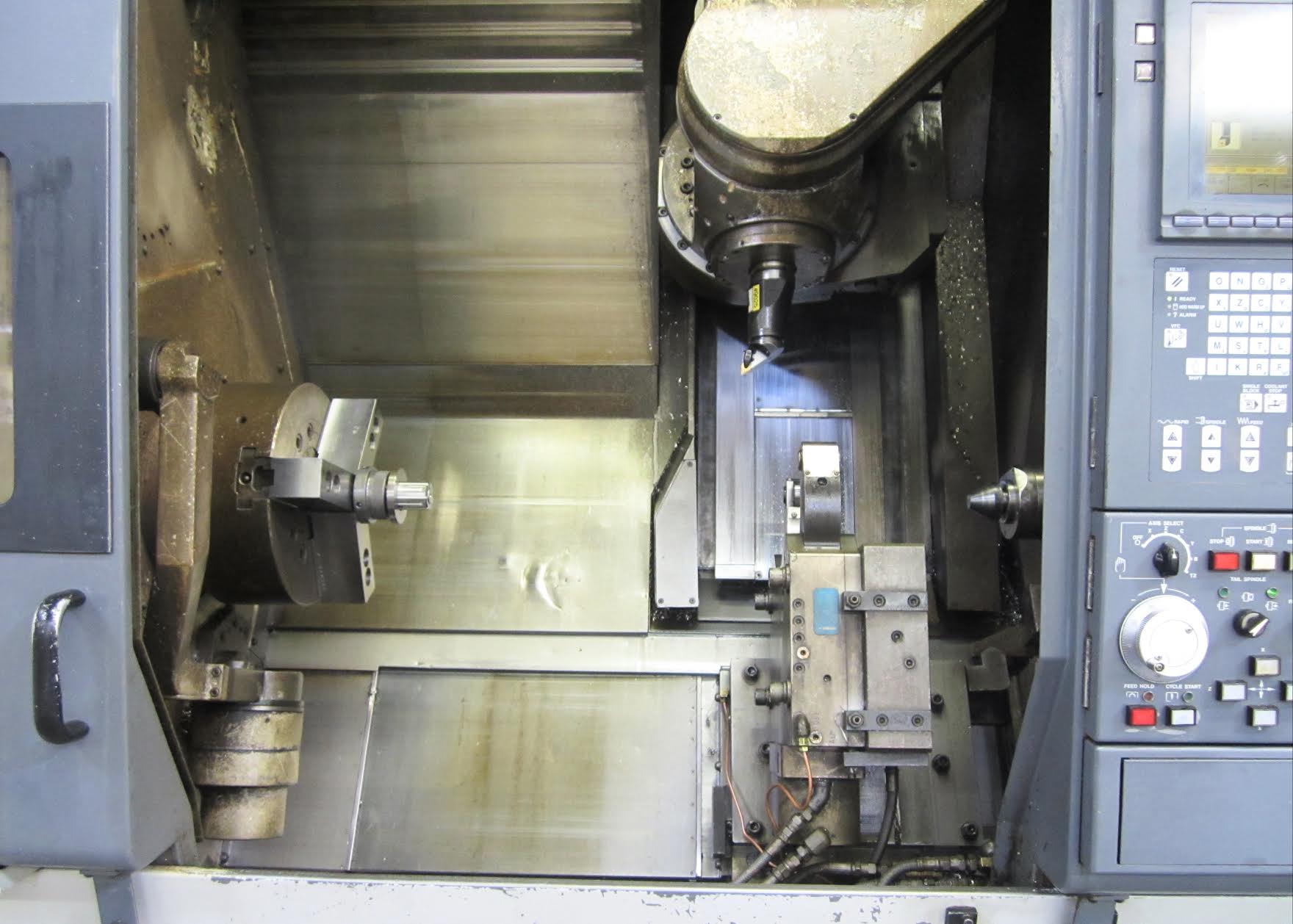

Mazak Integrex 300 II-Y 2001

machine specifications

• Wire Traveling Speed:

  22

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Resonator ( Type ):

  55

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• B-Axis Travels:

  30-195 Deg.

• C-Axis Rapid Rates:

  300 RPM

• X/Z-Axis Rapid Rates:

  1181 IPM

• Y-Axis Rapid Rates:

  590 IPM

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30/35 HP

• Main Spindle Nose:

  2-8

• Main Spindle Bore:

  3.46"

• Spindle Index (Programmable):

  0.001 Degree

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Maximum Swing Over Carriage:

  15.35" - 24.01"

• Maximum Cutting Diameter Chucking:

  24.01"

• Maximum Cutting Length:

  40"

• Maximum Bar Diameter:

  3.03"

• Max. Tool Dia. W/All Pockets Full:

  3.54"

• Max. Tool Dia. W/Adjacent Pockets Empty:

  4.72"

• Max. Tool Length (From Gage-Line):

  11.81"

• Maximum Tool Weight:

  22 lbs.

• ATC Tool Shank:

  Mazak KM63

• Tool Size (Boring Bar Max. Dia.):

  1.5"

• Tool Changer Type:

  60 ATC

• Tool Shank Height:

  1.0"

• Tool To Tool ATC Time:

  1.3 Sec.

• Rotary Tool Torque:

  88.21 Ft-Lbs

• Maximum Face Mill:

  4"

• Maximum End Mill:

  1.25"

• Maximum Tap:

  1-3/8 – 8 UNC

• Maximum Drill:

  1.25"

• Spindle Torque:

  470 Ft-Lbs

• Type of Turret:

  1 Position, W/ATC
