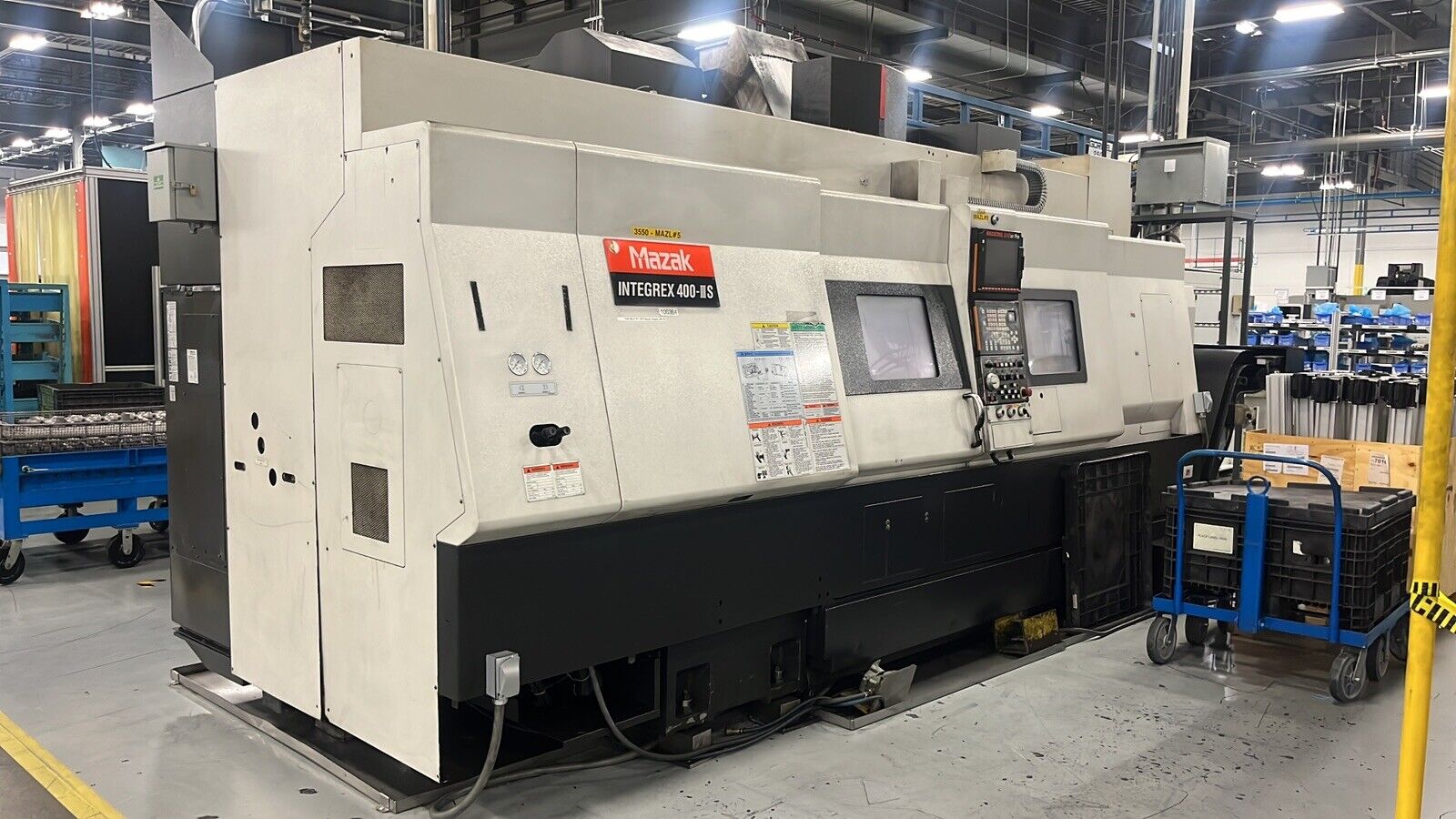

Mazak Integrex 400-3S 2005

machine specifications

• Maximum Swing :

  30"

• Maximum Swing over Cross Slide:

  30"

• Maximum Swing Using Y-Axis:

  26" - 30"

• Maximum Cutting Diameter Chucking:

  30"

• Maximum Cutting Length:

  60"

• Main Spindle Nose:

  A2-8

• Main Spindle Bore:

  4.4"

• Maximum Distance Between Chuck Faces:

  60"

• Maximum Bar Work Diameter:

  4.0" Dia

• Main Spindle Speed:

  3,300 rpm

• Main Spindle Index:

  0.0001 Deg

• Main Spindle Horsepower:

  (Cont./30 Mins.) 35/40 HP (AC)

• Main Spindle Torque:

  891.6 ft-lbs.

• Second Spindle Nose:

  A2-8

• Second Spindle Speed:

  4,000 rpm

• Second Spindle Indexing:

  0.0001 Deg. C-Axis

• Second Spindle Bore:

  3.46"

• Maximum Bar Work (Not Thru):

  3" Dia

• Second Spindle Horsepower (Cont./30 Min.):

  30-35 HP (AC)

• Second Spindle Torque:

  368.8 ft-lbs.
