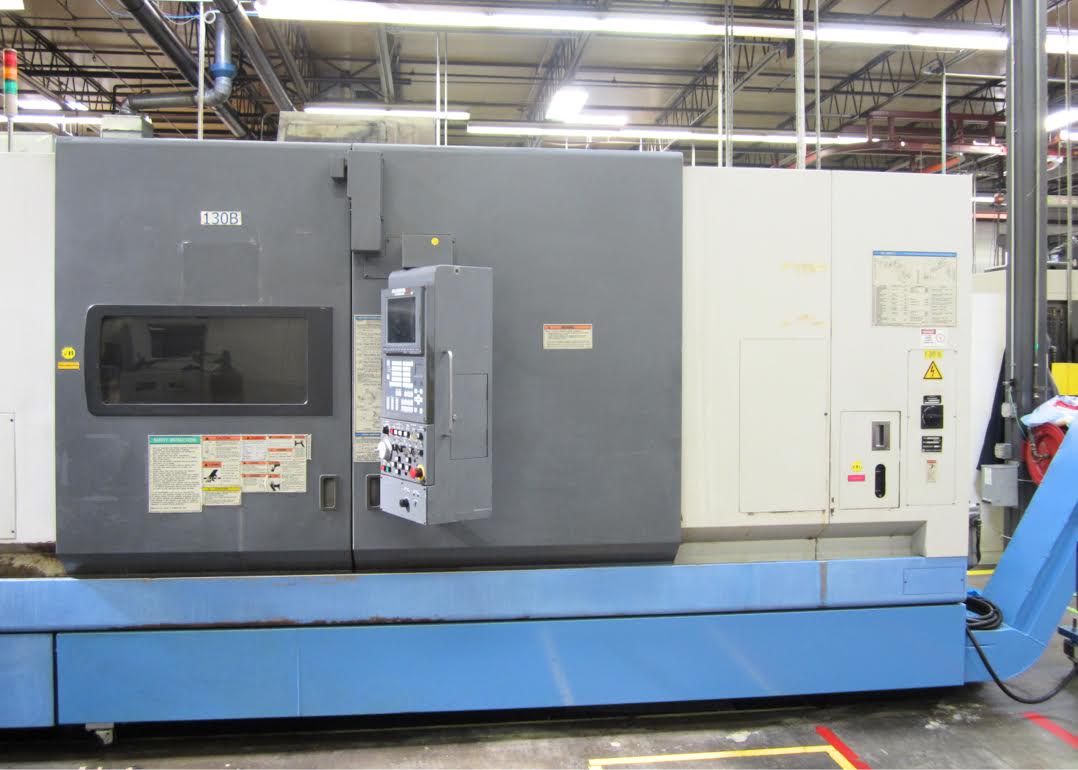

Mazak Integrex 50 YB 2001

machine specifications

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Resonator ( Type ):

  55

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Bar Stock Capacity:

  2.0"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• B- Axis Travel:

  30-180 deg.

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  40 HP

• Spindle Nose:

  A2-8"

• Spindle Hole:

  4.10"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Prog. Increments:

  360,000 N/C

• Tool Changer Type:

  60 ATC

• Chuck Size (Inches):

  8"

• Dist. Between Centers (inches):

  80.83"

• Max Swing (inches):

  17.32"

• Max Swing Over Carriage:

  20.47"

• Max Cutting Force:

  2270 ft/lbs.

• Max Cutting Feedrate:

  397 IPM

• Max Cutting Thrust:

  4280 FT/LBS

• Rotary Tool Spindle Speed:

  18-4000 RPM

• Rotary Tool Motor:

  20 HP AC

• Number Of Gear Ranges:

  4

• Rapid Traverse Rate (X , Y ,Z, C):

  472, 315, 590,15

• Rated Capacity:

  68.28 kva

• Maximum Thrust / Rotary Tool:

  159.51 FT/LBS.

• Tailstock Type:

  Hyd. N/C programmable

• Type of Turret:

  ATC Changer
