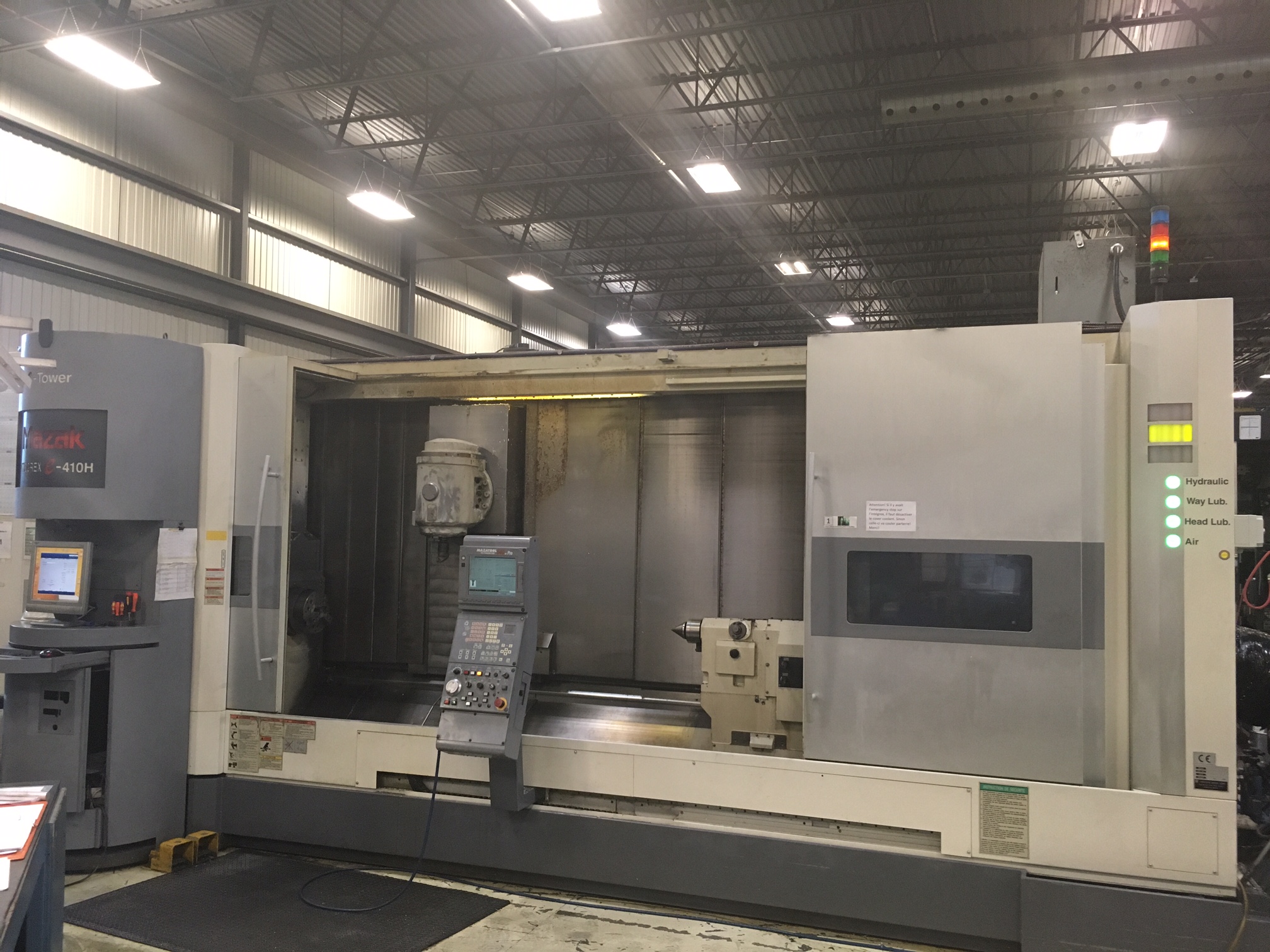

Mazak Integrex e-410H 2002

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Throat Depth:

  9.45"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Maximum Machining Diameter:

  24.02''

• Maximum Cutting Length:

  123.31''

• Spindle Bore Main:

  4.4'' OPTION

• Spindle Nose:

  A2-8

• C - Axis Travel:

  .0001 Degree

• A - Axis Travel:

  240 Degrees

• C - Axis Rapids:

  555 IPM

• X, Y, Z - Axis Rapids:

  1969, 1181, 1969 IPM

• C - Axis Travel Sub Spindle:

  .0001 Degree

• Rotary Tool Spindle Speeds:

  12,000 RPM

• Rotary Tool Spindle Taper:

  50 Big Plus

• Rotary Tool Motor:

  30 HP

• Tool Magazine Capacity:

  120 ATC

• Max. Tool Dia. / Adjacent Pocket Empty:

  3.74''/5.91''

• Maximum Tool Weight:

  22 LBS.

• Max Tool Length:

  15.75''

• Maximum Tool Weight:

  26.5 lbs.
