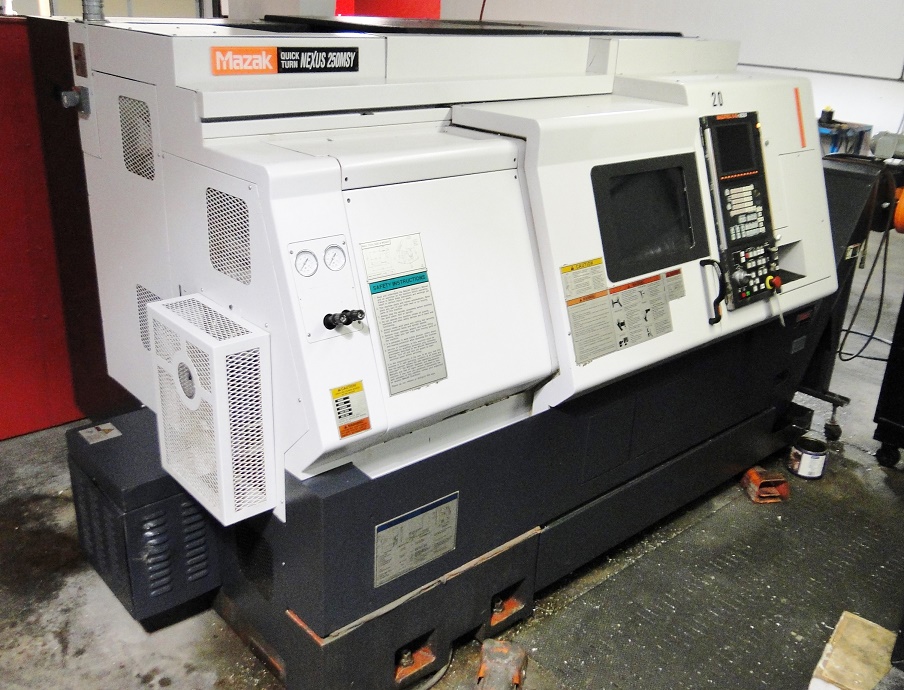

Mazak QT Nexus 250MSY 2005

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• C-Axis Indexing:

  0.0001 Degree

• Spindle Speed:

  12,000 RPM

• Spindle Nose:

  A2-8

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Bore:

  3.46"

• Main Spindle Drive:

  AC 35HP

• Rotary Tool Spindle:

  (10 Min): AC 7.5HP

• Tool Changer Type:

  60 ATC

• Sub-Spindle Speed:

  6,000 RPM

• Sub-Spindle Motor:

  AC 15HP

• Sub-Spindle Bore:

  2.07"

• Rotary Tool Speed:

  4,500 RPM

• Chuck Size (Inches):

  8"

• Turret Capacity:

  8 Positions

• Max Swing (inches):

  17.32"

• Max Machining Diameter:

  14.75"

• Resonator ( Type ):

  55

• Max Turning Distance:

  21.27"

• Max Bar Work Diameter:

  3"

• Turret Type:

  Modified VDI

• Bar Stock Capacity:

  2.0"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Pallet Size (inches):

  25"

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• V-Axis Travel:

  5555
