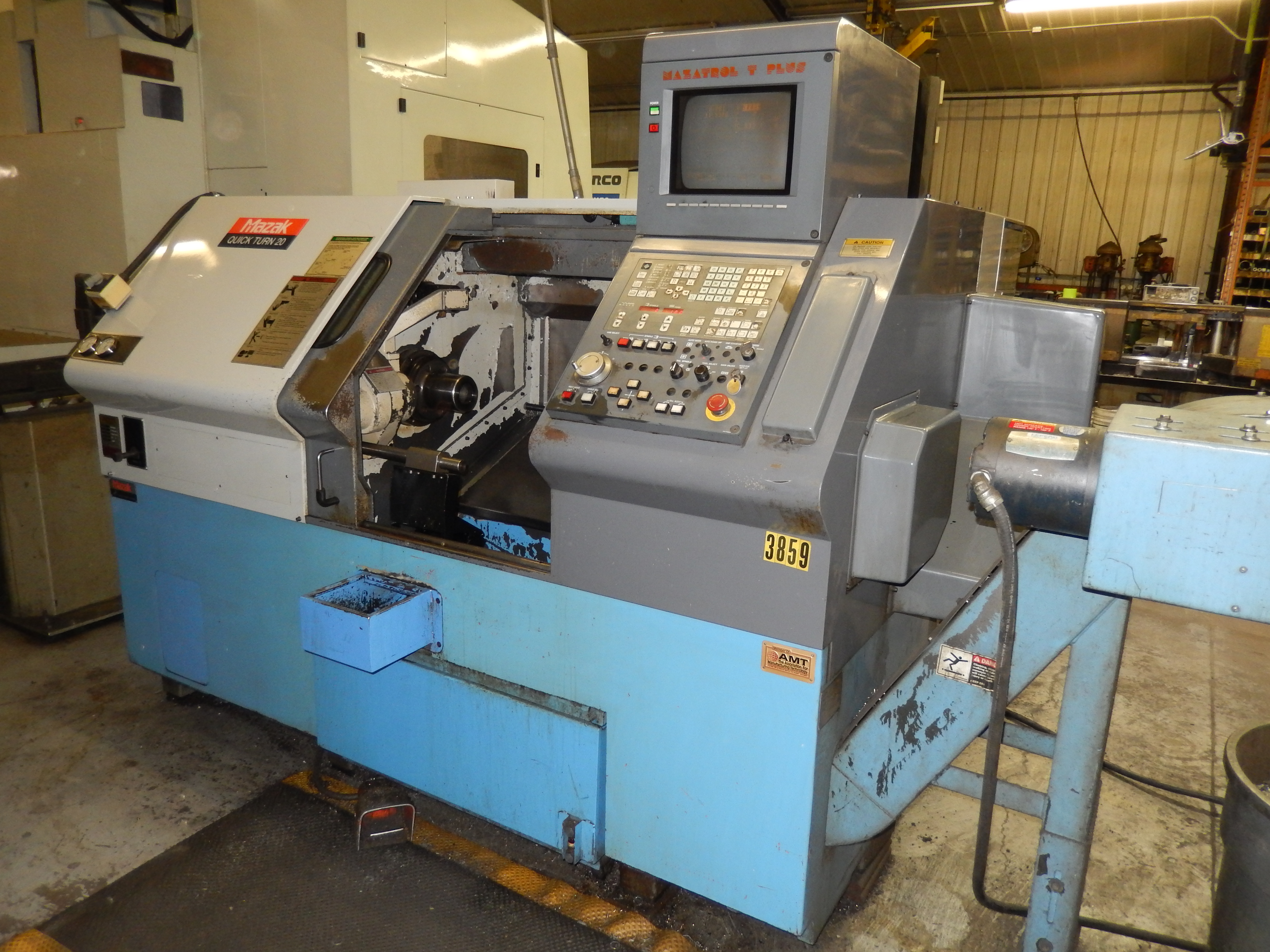

Mazak QT-20 1998

machine specifications

• Wire Traveling Speed:

  22

• Y - Axis Travel (inches):

  15.7" / 400mm

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Max Swing over Bed:

  17.32"

• Max Turning Diameter:

  11.81"

• Max Turning Length:

  19.68"

• Max Support Weight:

  Chuck Work 220 lbs

• Max Support Weight:

  Shaft Work 330 lbs

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Rapid Feed Rate, X-Axis:

  1200 IPM

• Rapid Feed Rate, Z-Axis:

  1300 IPM

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  15 HP

• Chuck Size (Inches):

  8"

• Spindle Nose:

  A2-6

• Hole Thru Spindle:

  2.44"

• Bar Capacity:

  2"

• Turret Positions:

  8

• Tailstock Taper:

  No. 4 MT

• Tailstock Spindle Stroke:

  5.12"
