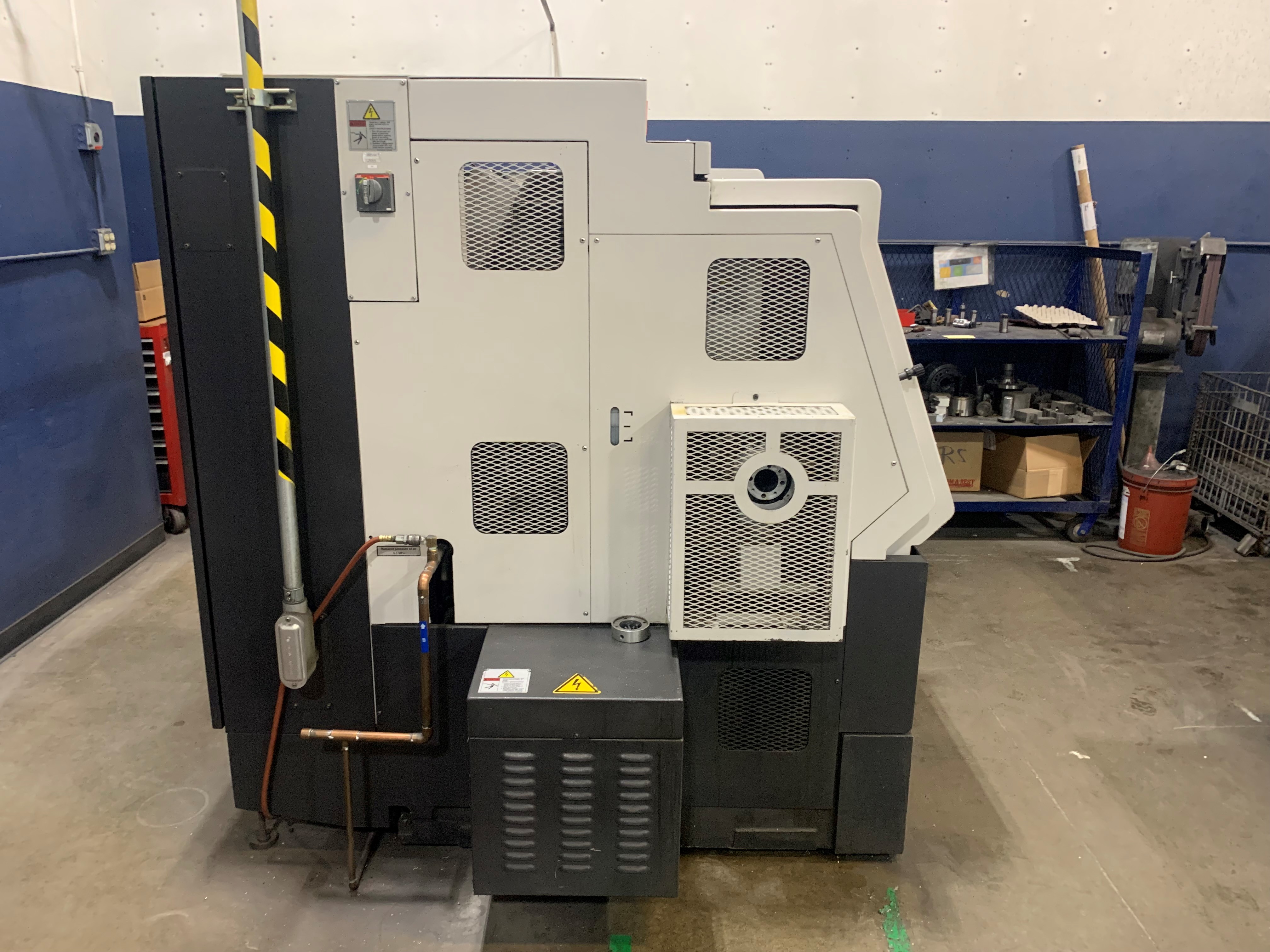

Mazak QTN-200 2004

machine specification

• STANDARD CHUCK SIZE
• 8"

• MAX SWING
• 24.02"

• MAX SWING OVER CROSS SLIDE
• 14"

• MAX CUTTING DIAMETER
• 14"

• MAX MACHINING LENGTH
• 20.1"

• MAX BAR CAPACITY
• 2.00"

• X-AXIS TRAVEL
• 7.5"

• Z-AXIS TRAVEL
• 21.125"

• SPINDLE SPEED
• 5,000 RPM

• SPINDLE NOSE
• A2-6"

• SPINDLE BORE
• 3.00"

• TURRET CAPACITY
• 12 Position

• RAPID TRAVERSE X
• 1181 ipm

• RAPID TRAVERSE Z
• 1299 ipm

• SPINDLE MOTOR (CONT./30 MIN)
• 35 HP / 30 HP

• MATERIALS CUT
• mild steel, alum and plastic

machine equipped with

• MAZATROL 640T NEXUS CNC CONTROL
• TAILSTOCK
• 1203 CUTTING HOURS
• 5C COLLET CHUCK
• 3-JAW CHUCK
• TOOL BLOCKS FOR BORING BARS
• SPINDLE LINERS (0.25" 0.375" 0.5")
