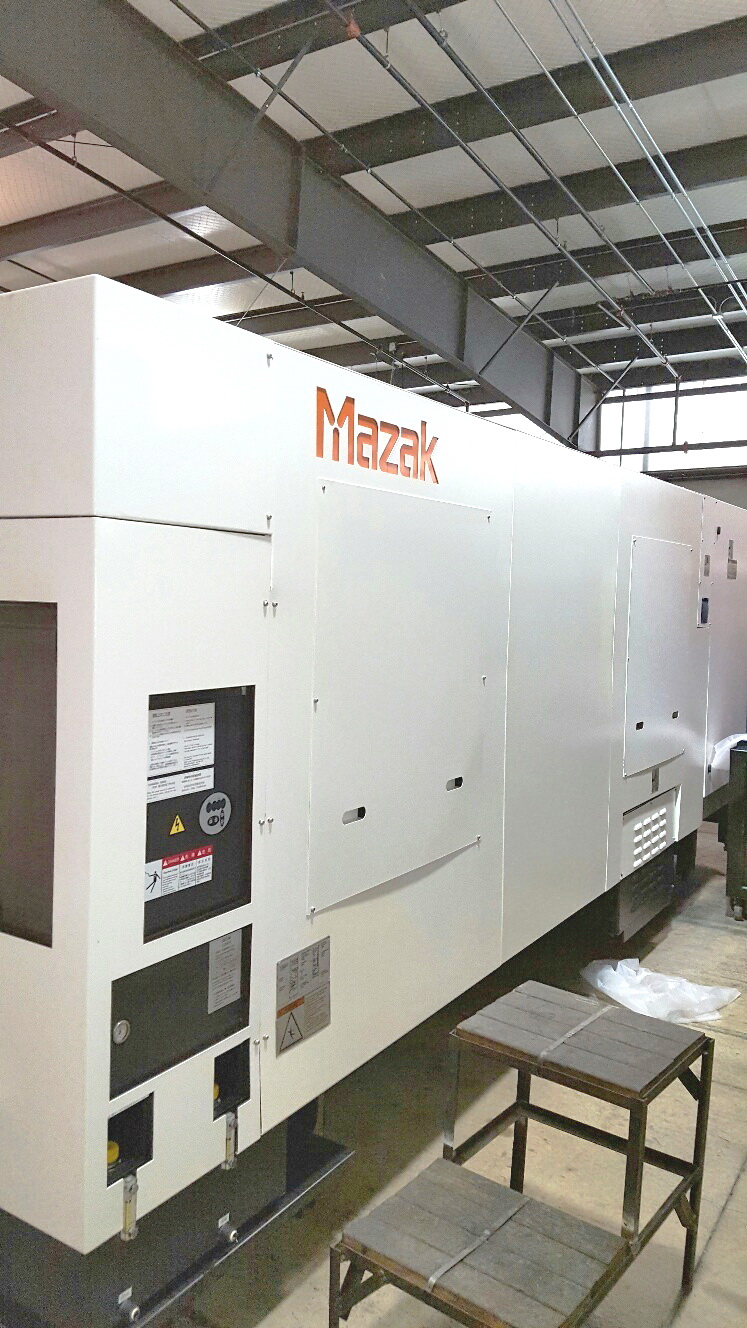

Name: Mazak QTN 450IIM/2000 2013
Brand: Mazak
Price: 229000 USD
Availability: OutOfStock

Mazak QTN 450IIM/2000 2013

MAKE: Mazak
YEAR: 2013
TYPE: CNC Lathe

MODEL: QTN 450IIM/2000
CONTROL: Bosch
REF #: 1218285

Buy Similar / Same Machine

View available similar machines

machine specifications

X - Axis Travel (inches):

15.7" / 400mm

Z - Axis Travel (inches):

14.7" / 375mm

C- Axis:

.001 Degree

Spindle Speed:

12,000 RPM

Spindle Motor (HP):

50 HP

Spindle Nose:

A2-15

Spindle Bore Main:

7.23"

Spindle Torque:

1760 ft.-lbs.

Max Swing (inches):

17.32"

Swing Over Carriage:

22.835"

Maximum Cutting Diameter:

22.835"

Maximum Cutting Length:

82.6"

Rotary Tool Spindle Speeds:

4000 RPM

Rapid Traverse Rates X, Z:

1181, 1181 IPM

Stroke Of Tail Body:

73.4"

machine equipped with

Mazak QTN 450IIM/2000 2013

Loading highlight...

MAKE: Mazak

YEAR: 2013

TYPE: CNC Lathe

MODEL: QTN 450IIM/2000

CONTROL: Bosch

REF #: 1218285

Sell Similar Machine

Buy Similar / Same Machine

Activate Search Agent

machine specifications

X - Axis Travel (inches):

Z - Axis Travel (inches):

C- Axis:

Spindle Speed:

Spindle Motor (HP):

Spindle Nose:

Spindle Bore Main:

Spindle Torque:

Max Swing (inches):

Swing Over Carriage:

Maximum Cutting Diameter:

Maximum Cutting Length:

Rotary Tool Spindle Speeds:

Rapid Traverse Rates X, Z:

Stroke Of Tail Body:

Tailstock Center:

Tailstock Quill Diameter:

Resonator ( Type ):

Bar Stock Capacity:

Chuck Size (Inches):

Y - Axis Travel (inches):

Spindle Taper (CAT/BT):

Table Size - L:

Table Size - W:

Throat Depth:

Tool Changer Type:

Turret Capacity:

V-Axis Travel:

Vertical Travel of Ram:

Wire Diameter (inches):

Pallet Size (inches):

Wire Traveling Speed:

Read more

machine equipped with

1 Position Spindle Orientation

12.1 Color Monitor / Windows Xp Operating System

2 Port Usb

4000 Rpm Mill Spindle

55 Hp Ac Spindle Motor With 1760 Ft/Lbs. Of Torque

Absolute Positioning

Absolute Positioning System

Additional 2" Split Boring Bar Holder

All Available Manuals

Automatic Steady Rest Preparation W/O Steady Rest

Comparison Stop

Eia 3-D Comp

Eia Helical Tap Cycle

Eia Pattern Cycle

Eia/Iso Programming

G54.1

High Pressure Coolant 213 PSI

Hydraulic Pressure Interlock

Manual Rear Chuck Preparation

Mazatrol Matrix Cnc Conversational Control

Mt Connect Prep

Polar Coordinates Input

Pratt Burnerd 3 Jaw Rear Chuck

Programmable Tailstock W/ Built-In Live Center

Relocation Device

Re-Thread

Smw Bb-N-500-205-3 Pneumatic 3 Jaw Front Chuck

Standard Tooling Package

Sync. Tapp Mill Head

Thread

Thread Cut Speed Override

Thread Start Point Compensation

Tilted Work Plane

Transformer
