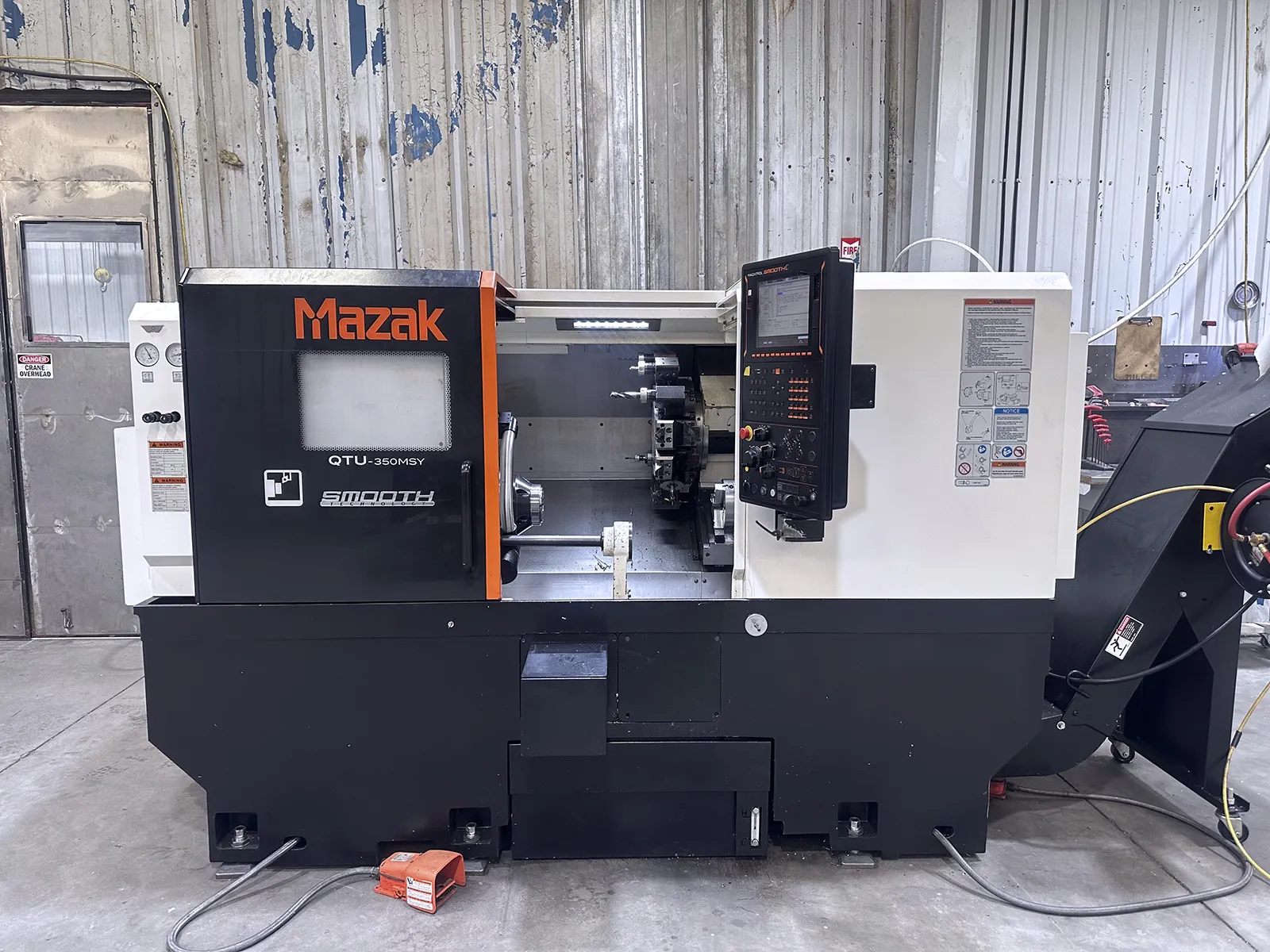

Mazak QTU 350 MSY 2019

machine specifications

• Max Swing:

  27.4"

• Max Turning Diameter:

  13.5"

• Main Spindle:

  3,500 RPM

• Main Spindle Thru:

  3.5"

• Main Spindle Nose:

  JIS A2-8

• Sub-Spindle:

  6,000RPM

• Sub-Spindle Thru:

  2.4"

• Sub-Spindle Nose:

  JIS A2-5

• Sub-Spindle Chuck:

  6" Chuck

• ATC:

  12

• X Axis:

  8.5"

• Y Axis:

  +/- 2"

• Z axis:

  23.75"

• X axis Rapid Travers Rate (IPM):

  1,181 ipm

• Y axis Rapid Travers Rate (Inch):

  10"

• Z axis Rapid Travers Rate (IPM):

  1417 ipm

• Main spindle motor power:

  20HP
