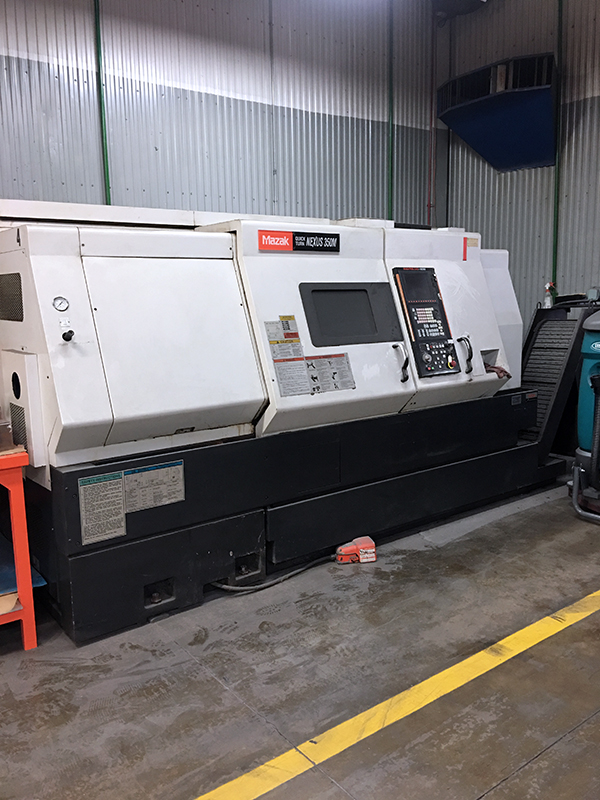

Mazak Quick Turn 350M 2005

machine specifications

• Turret Capacity:

  8 Positions

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Bed Length:

  60"

• X-Axis Travel:

  14.3"

• Z-Axis Travel:

  43.5"

• W-Axis Travel:

  62.25"

• Max Swing:

  30.3"

• Max Machining Diameter:

  16.5"

• Max Bar Capacity:

  3.0?

• Motor HP:

  40
