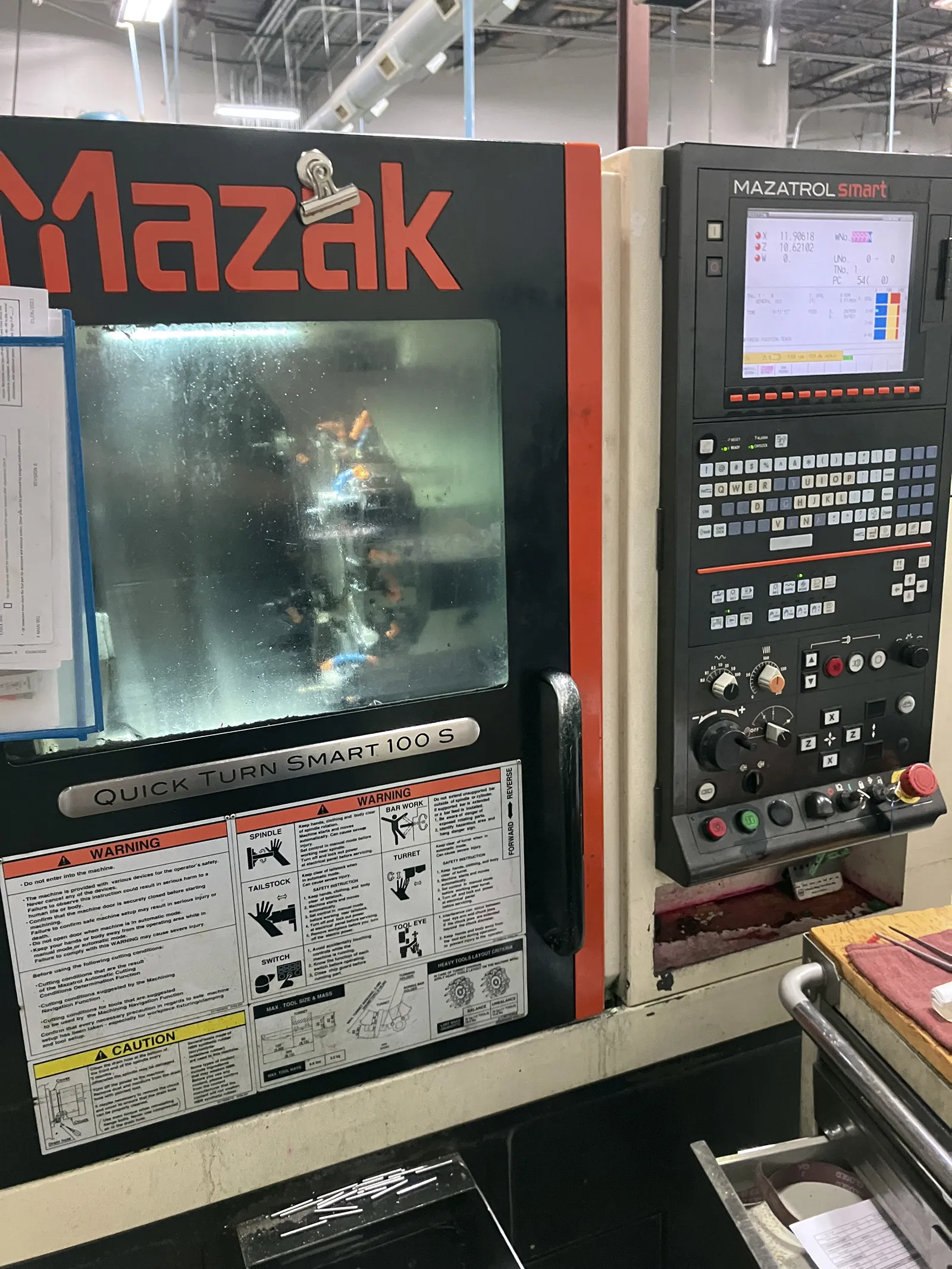

Mazak Quick Turn Smart 100S 2011

machine specifications

• Maximum Swing :

  23"

• Maximum Cutting Diameter:

  11"

• Maximum Cutting Length:

  12.15"

• X-Axis Travel:

  7.88"

• Z-Axis Travel:

  13.75"

• Spindle Nose:

  A2-5

• Spindle Bore:

  2"

• Spindle Bar Capacity:

  1.65"

• Spindle Speeds:

  6,000 RPM

• Spindle Motor:

  15 HP

• Number of Turret Positions:

  12 Station Turret Bolt on Type

• Rapid Traverse Rates X / Z:

  1299 IPM / 1417 IPM

• Tailstock Body Travel / Center:

  13.75" / MT #5

• Machine Dimensions (L x W x H):

  75"x63"x67"

• Machine Weight:

  7,716 lbs
