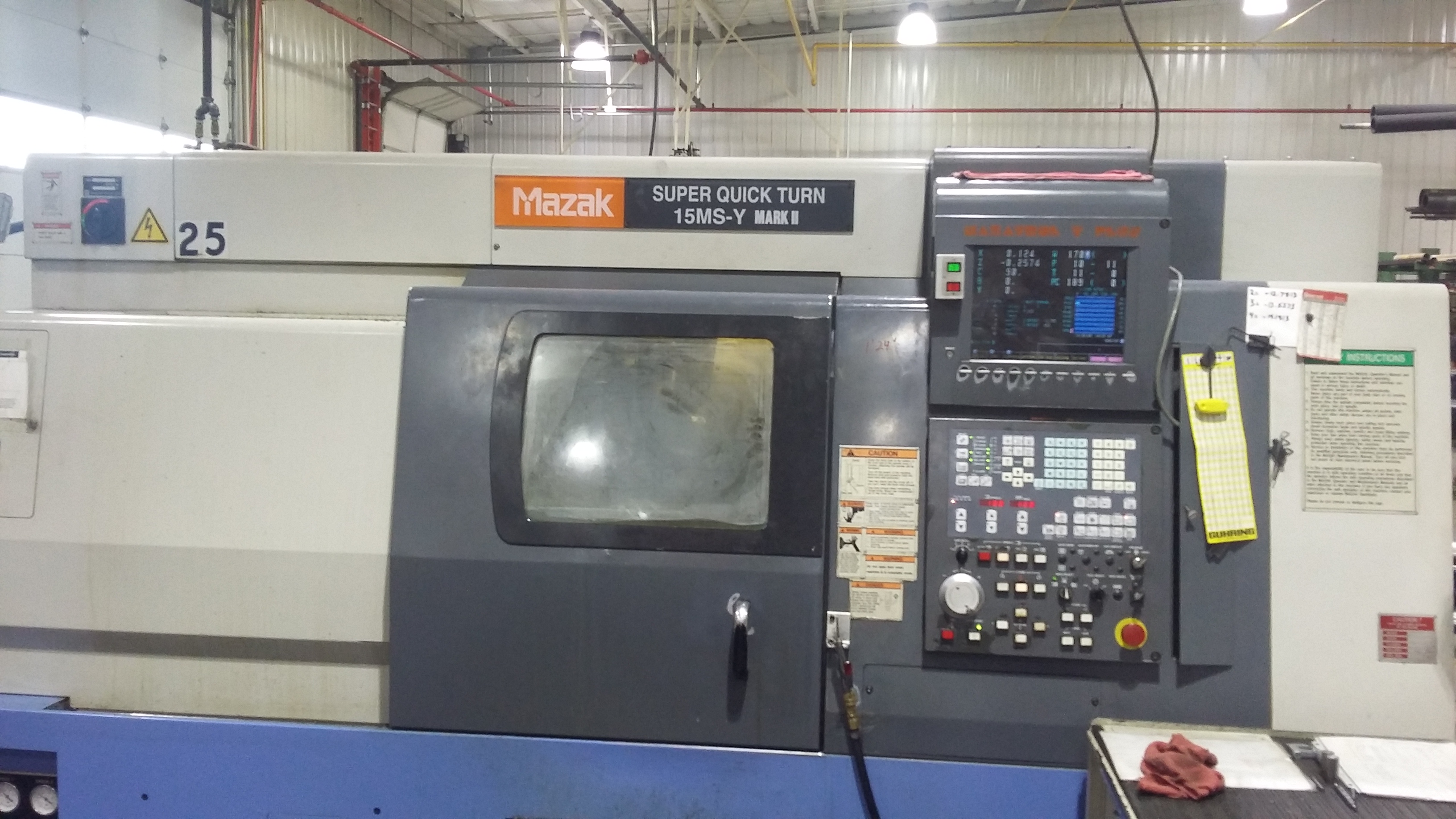

Mazak SQT 15MSY 1996

machine specifications

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Table Size - L:

  61"

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Bar Stock Capacity:

  2.0"

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Max Swing Over Carriage:

  16.54"

• Max Cutting Diameter:

  11.75"

• Spindle Bore:

  2.44"

• Spindle Nose:

  A2-6

• Main & Sub Spindle Speed:

  5,000 RPM

• Rotary Spindle Speed:

  120 - 3,000 RPM

• Spindle Motor (HP):

  25 HP

• Sub-Spindle Motor:

  10 HP

• Rotary Motor:

  5 HP

• Turret Capacity:

  8 Positions

• Number of Turrets:

  1

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• B-Axis:

  23.25"

• Rapid Traverse (X&Z):

  1180 IPM
