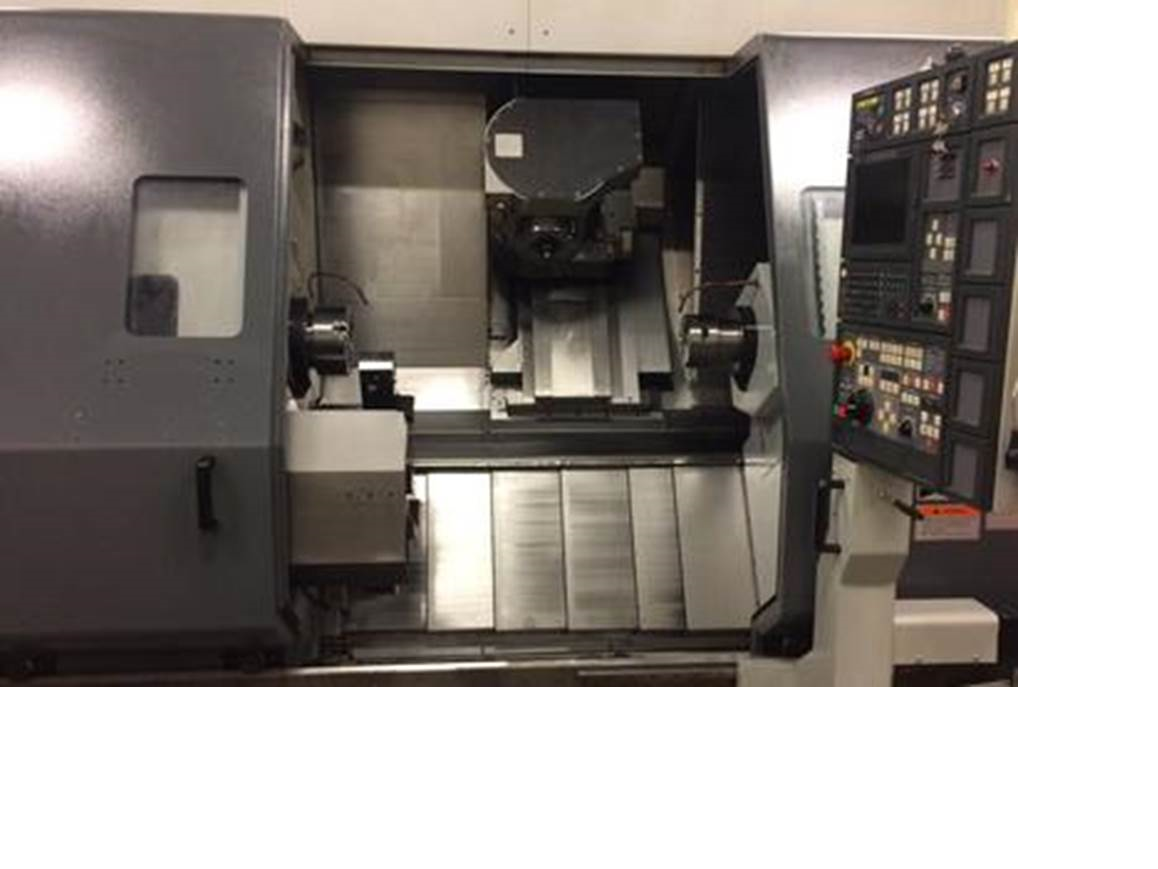

Mori Seiki MT-2000SZ 2003

machine specification

• NUMBER OF AXES
• 9-axis

• MAX DIAMETER BAR CAPACITY
• 2.5"

• MAX SWING OVER BED / CARRIAGE
• 33.4" / 23.6"

• MAX TURNING DIAMETER / LOWER TURRET
• 21.6" / 11"

• DISTANCE BETWEEN SPINDLES
• 50.4"

• MAX MACHINING LENGTH
• 40.1"

• MAIN SPINDLE CHUCK
• 10"

• SPINDLE SPEED
• 4500 RPM

• SPINDLE BORE
• 2.99"

• SPINDLE MOTOR (HP)
• 30 / 20 HP

• RAPID TRAVERSE RATE (X,Z)
• 945 IPM

• SUB SPINDLE BAR CAPACITY
• 1.7"

• SUB SPINDLE MOTOR
• 20 / 15 HP

• SUB SPINDLE SPEED
• 6000 RPM

• SUB SPINDLE CHUCK SIZE (INCHES)
• 6"

• SPINDLE NOSE
• A2-6

• MILLING SPEED
• 8000 RPM

• MILLING MOTOR
• 25 / 20 /15 HP

• TOOL HOLDER
• Capto C6

• LOWER TURRET TOOLS
• 12

• LOWER TURRET MILLING MOTO
• 10 HP

• LOWER TURRET MILLING SPEED
• 4000 RPM

• TOOL CHANGE TIME (T - T)
• 1.6 Seconds

• X-AXIS TRAVEL / LOWER TURRET
• 22.2"/6.1

• Z-AXIS TRAVEL / LOWER TURRET
• 42.4" / 36.7"

• Y-AXIS TRAVEL
• +/- 3.1"

• B-AXIS ROTATION
• 120

• B-AXIS INDEX
• .0001 Degrees

• C-AXIS INDEX
• .001 Degrees

• GEAR RANGES
• 2

• MAX TOOL DIAMETER
• 3.5" / 4.9"

• MAX TOOL LENGTH
• 11"

• MAX TOOL WEIGHT
• 15.4 lbs.

• TOOL CAPACITY
• 40 ATC

machine equipped with

• FULL C-AXIS ON MAIN AND SUB SPINDLE
• FULL 5-AXIS CONTOURING
• LOWER TURRET WITH MILLING
• Y-AXIS ENABLED ON MILLING HEAD
• 10" CHUCK ON MAIN SPINDLE
• 6" CHUCK ON SUB SPINDLE
