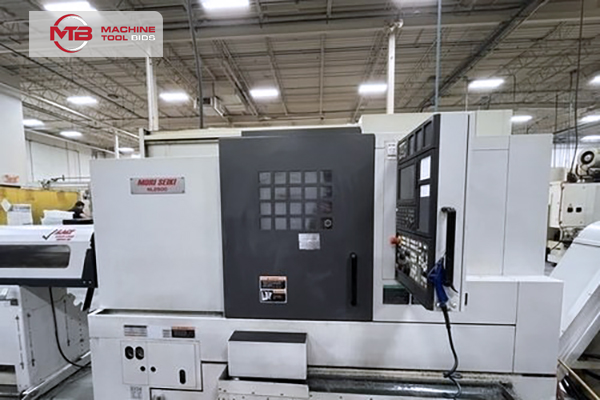

Mori Seiki NL2500SY/700 2008

machine specifications

• Machine Size:

  ---

• Tank Capacity:

  ---

• Swing over bed (interference with front cover):

  36.4" (22.8")

• Power Source:

  ---

• Swing over cross slide:

  29.7"

• Motor:

  ---

• Maximum Turning Diameter:

  14.0"

• Standard Turning Diameter:

  10.8"

• Feed Rate:

  ---

• Turret:

  ---

• Maximum Turning Length:

  27.7"

• Type of Spindle Nose:

  ---

• Bar Work Capacity:

  3.1"

• Spindle:

  ---

• Travel:

  ---

• X-Axis Travel:

  10.2"

• Capacity:

  ---

• Z-Axis Travel:

  31.3"

• Y-Axis Travel:

  3.9" <±2.0">

• Headstock 2 travel (B-axis):

  28.9"

• Max Spindle Speed Headstock 1:

  4,000 RPM

• Max Spindle Speed Headstock 2:

  6,000 RPM

• Headstock 1:

  JIS A2-8

• Headstock 2:

  A2-5

• Through Spindle Hole Diameter:

  ---

• Headstock 1:

  3.6"

• Headstock 2:

  1.7"

• Min. spindle indexing angle:

  0.001"

• Spindle bearing inner diameter:

  ---

• Headstock 1:

  5.5"

• Headstock 2:

  3.3"

• Number of Tool Stations:

  12

• Shank Height For Square Tool:

  1"

• Shank Diameter Of Boring Bar:

  ---

• Headstock 1:

  2" (1-1/4")

• Headstock 2:

  1 1/4"

• Tool shank diameter for rotary tool:

  1"

• Turret Indexing Time:

  0.25 seconds

• Max. rotary tool spindle speed:

  6,000 rpm

• Rapid Traverse Rate:

  X, Z, B: 1/ 181.1 IPM/ Y 393.7 IPM/ C 400 rpm

• Spindle drive motor (25% ED/50%ED/cont. Headstock 1:

  24.7/24.7/20 HP

• Spindle drive motor (25% ED/50%ED/cont.) Head Stock 2:

  15/10 HP

• Rotary tool spindle drive motor <3 min/5 min/cont>:

  7.5/7.5/5HP

• Feed Motor:

  X, Z, Y: 4.7 HP, B: 2.7 HP

• Electrical power supply (standard machine):

  9.4 KVA

• Compressed air supply:

  72.5 psi, 26.4 gpm

• Coolant Tank Capacity:

  64.9 gal

• Machine height (from floor):

  83.5"

• Floor Space:

  122.0" x 78.7"

• Mass of machine:

  13,640 lbs
