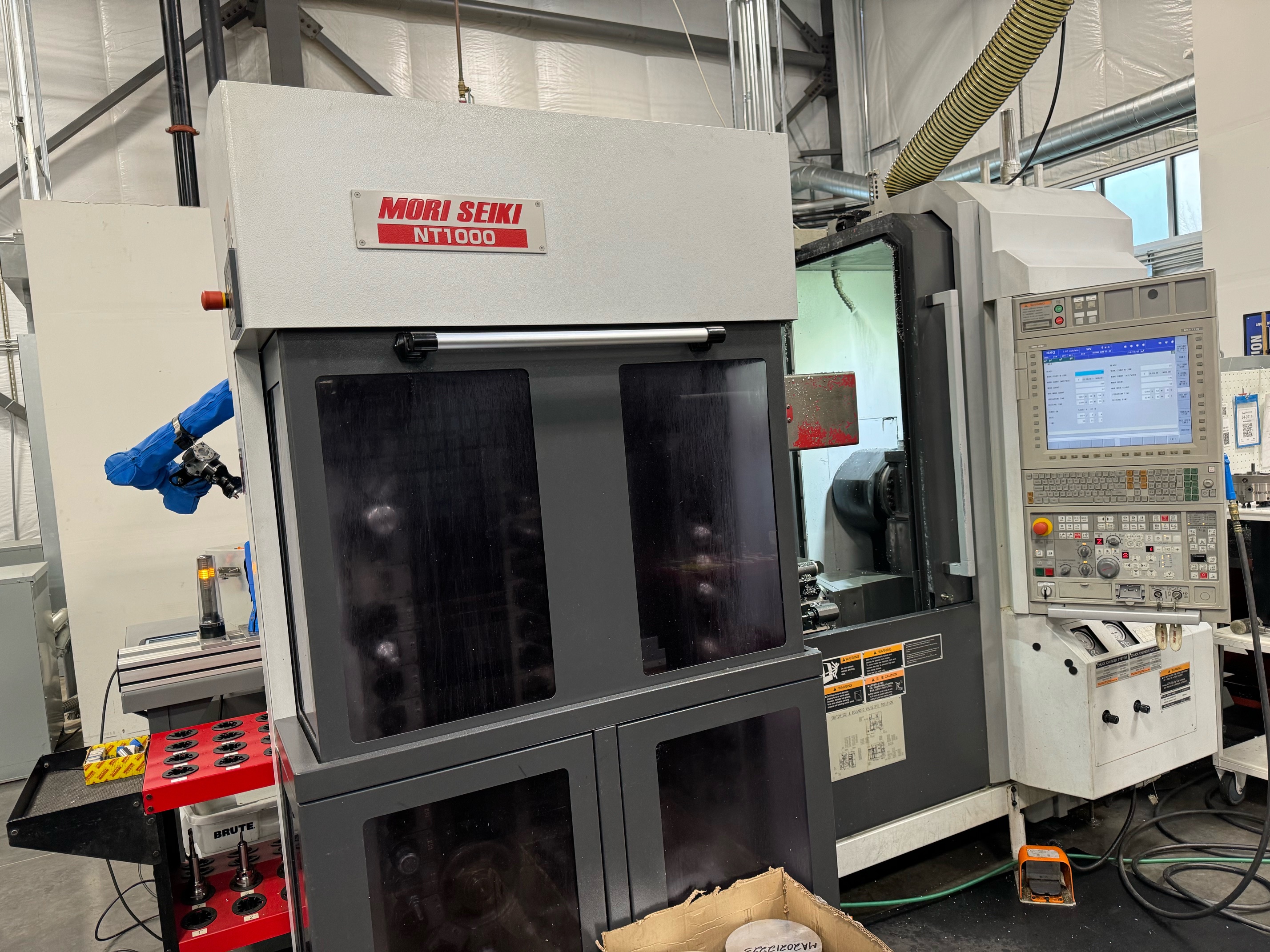

Mori Seiki NT-1000/SZM 2010

8" Kitagawa chuck on Main Spindle, Standard Coolant Filtration w/Chip Conveyor, 76 Position ATC

Make
Mori Seiki
Control
MAPPS4 (FS-31iA5)

model
NT-1000/SZM
Reference
#3674452

year
2010

type
CNC Lathe

Get quote make offer contact us Sell Your Mori Seiki

machine specification

MAXIMUM SWING
14.5"

SWING OVER CROSS SLIDE
---

TURRET 1
14.5"

TURRET 2
11.8"

MAX TURNING DIAMETER
---

TURRET 1
14.5"

TURRET 2
10.6"

BED LENGTH
18.1"

MAX TURNING LENGTH
16.6"

BAR WORK CAPACITY
2.0"

TRAVELS
---

X-AXIS (TOOL SPINDLE)
15.0"

Y-AXIS (TOOL SPINDLE)
+/- 4.1"

Z-AXIS (TOOL SPINDLE)
18.1" + 6.1"

B-AXIS (TOOL SPINDLE)
+/- 120 Deg

X2-AXIS (TURRET 2)
6.1"

Z2-AXIS (TURRET 2)
24.0"

SPINDLE 1
---

SPEED – MAXIMUM
6,000 rpm

NOSE
JIS A2-5

CHUCK SIZE
8"

HOLE
2.4"

INDEXING INCREMENT – MINIMUM
0.0001 deg

SPINDLE 2
---

SPEED – MAXIMUM
6,000 RPM

CHUCK SIZE
5"

HOLE
1.5"

INDEXING INCREMENT – MINIMUM
0.0001 deg

TOOL SPINDLE
---

TURRET 1
--

TOOL STATIONS
1

B-AXIS INDEXING INCREMENT – MINIMUM
0.0001 deg

SPEED – MAXIMUM
12,000 RPM

TAPER HOLE OF ROTARY TOOL SPINDLE
Capto C5

TOOL STORAGE CAPACITY
76

TURRET 2
--

TOOL STATIONS
10

LIVE TOOLING
Yes

ROTARY TOOL SPEED – MAXIMUM
6,000 RPM

FEEDRATE – RAPID TRAVERSE
---

X-AXIS (TOOL SPINDLE)
1,574.8 IPM

Y-AXIS (TOOL SPINDLE)
1,574.8 IPM

Z-AXIS (TOOL SPINDLE)
1,968.5 IPM

X2-AXIS (TURRET 2)
1,181.1 IPM

Z2-AXIS (TURRET 2)
1,181.1 IPM

A-AXIS (SPINDLE 2)
1,417.3 IPM

MOTOR
---

SPINDLE DRIVE 1
15 HP

SPINDLE DRIVE 2
10 HP

TOOL SPINDLE DRIVE
12 HP

TURRET 2 ROTARY TOOL SPINDLE DRIVE
2 HP

FLOOR SPACE (L X W X H)
95.5" x 106.5" x 94.5"

MACHINE WEIGHT
19,360 lbs

machine equipped with

SIMULTANEOUS 5-AXIS
MORI SEIKI MAPPS 4 (FS-31IA5) CONTROL
76 POSITION ATC
LIVE MILLING ON LOWER TURRET
STANDARD COOLANT FILTRATION W/CHIP CONVEYOR
COOLJET HI-PRESSURE COOLANT SYSTEM
8" KITAGAWA CHUCK ON MAIN SPINDLE
5" KITAGAWA CHUCK ON SUB-SPINDLE
RENISHAW OMP60 PROBE
MITSUBISHI SCALE ON B-AXIS
TOOL PRESETTER

machine description

Used Mori Seiki NT-1000/SZM. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mori Seiki CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
