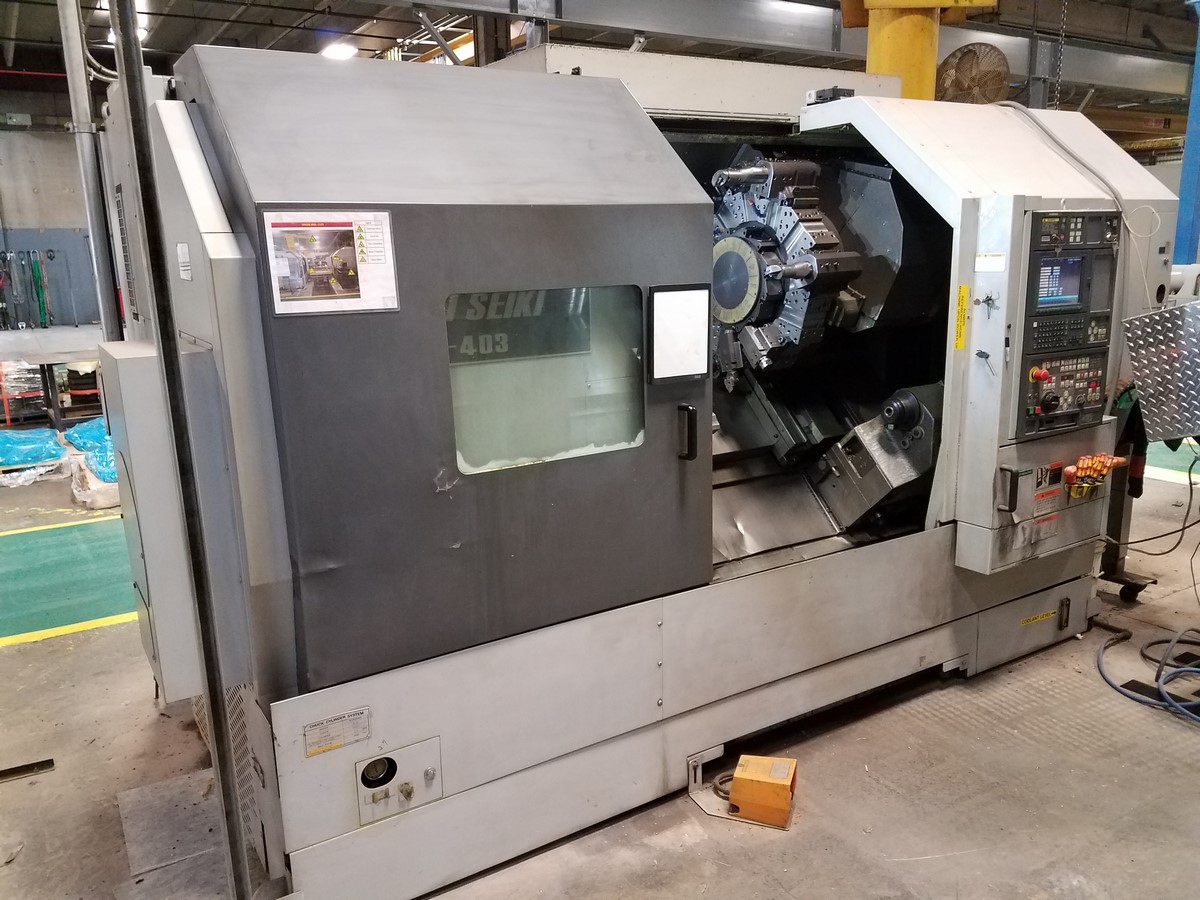

Mori Seiki SL-403-BMC800 2003

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  40 HP

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Number of Turrets:

  12

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Pallet Size (inches):

  25"

• Max Turning Diameter:

  25.5"

• Max Tailstock Position:

  44.3"

• Max Turning Length:

  30.4"

• Rapid Traverse Rate (X-Axis):

  787 IPM

• Rapid Traverse Rate (Z-Axis):

  944 IPM

• Tool Positions:

  12

• Turret Index (Single Step):

  0.4 sec.

• Hole Thru Spindle:

  5.1"

• Spindle Nose:

  A2-11

• Live Tool Milling Speed:

  30 - 3,000 RPM

• Live Tool Milling Spindle Horsepower:

  15 HP

• Power Requirements:

  230/3/60
