This Machine has been sold and is No longer Available... Find similar machines below

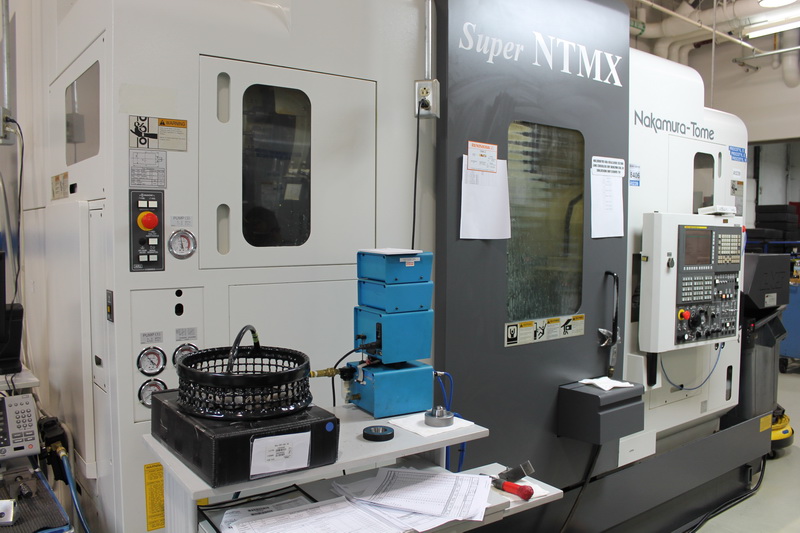

Nakamura-Tome Super NTMX 2011

Loading highlight...

machine specifications

  • X - Axis Travel (inches):

    15.7" / 400mm

  • Y - Axis Travel (inches):

    15.7" / 400mm

  • Z - Axis Travel (inches):

    14.7" / 375mm

  • B Axis Speed / HP:

    12,000 RPM / 10 HP

  • B-Axis Travel - Pendulum Head:

    190 Deg. (+/- 95 Deg.)

  • Resonator ( Type ):

    55

  • C Axis Movement - Both Spindles:

    .001 Degree

  • W Axis Travel:

    30.3" (Sub spindle)

  • Spindle Speed:

    12,000 RPM

  • Spindle Motor (HP):

    15 HP (Both)

  • Spindle Nose:

    A2-5

  • Thru Spindle Hole Diameter:

    2.48"

  • Chuck Size (Inches):

    8"

  • Rapid Feed X1/X2:

    1182/630 IPM

  • Rapid Feed Z1/Z2:

    1576/1576 IPM

  • Rapid Feed B2:

    1576 IPM

  • Rapid Feed Y:

    630 IPM

  • Tool Changer Positions:

    2 x 24 ATC Pos (48 Total)

  • Max Swing over Cross Slide:

    8.07"

  • Max Turning Diameter:

    7.87"

  • Standard Turning Diameter:

    6.69"

  • Main Max Bar Capacity:

    2.04" (Both Sides)

  • Lower Turret Positions:

    24 Dodecagonal Drum Turret

  • Tool Shank:

    Capto C4

  • Power On Hours:

    9,073

  • Spindle Taper (CAT/BT):

    HSK-463

  • Bar Stock Capacity:

    2.0"

  • Wire Diameter (inches):

    3333

  • Wire Traveling Speed:

    22

  • Pallet Size (inches):

    25"

  • Max Swing (inches):

    17.32"

  • Vertical Travel of Ram:

    4444

  • V-Axis Travel:

    5555

  • Table Size - L:

    61"

  • Table Size - W:

    30"

  • Throat Depth:

    9.45"

  • Tool Changer Type:

    60 ATC

  • Turret Capacity:

    8 Positions

machine equipped with

  • Fanuc 31i-A5 2path CNC Control
  • AICCII / Jerk Control
  • NT Nurse Ii System
  • Nt Navigator
  • OMP 60m/Lp2 Tool Setter
  • LPE2 100mm Extension
  • Tool Setting Styli / Tool Setting Software Fanuc
  • Nc4 Laser Probe Tool Set On B-Axis
  • In-Process Measurement
  • Tool Center Point Control
  • Tilted Work Plane
  • Capto C4 Shank
  • Parts Catcher A -9 Controlled Axes
  • Chamfering And Corner Rounding
  • Arc Radius R Programming
  • Multiple Repetitive Cycles
  • Polar Coordinate Interpolation
  • Cylindrical Interpolation
  • Balance Cut
  • Thread Cutting
  • Abnormal Load Detection -N-T Nurse Tool Monitoring Function
  • Excessive Load Detection
  • Navigator Function For Part And Datum Point Recognition
  • Fixed Air Blow Off Both Systems
  • (2) 6.5" 3 Jaw Hydraulic Chucks L/R
  • Y- Axis Upper Turret
  • Milling Both Turrets
  • Synchronized Z Axes
  • Hydraulic Pressure Interlock
  • Milling Spindle Sync. Tap
  • Chip Conveyor
  • All Available Standard Turning Tool Holders
  • All Available Manuals
  • 1 - Tool Box
  • 1 - Electrical Parts
  • 1 - Chuck Parts (chuck wrench
  • bracket
  • allen wrenches)
  • 1 - Shipping Brackets
  • 1 - Tool Holder RH (C21441)
  • 1 - Cut Off Holder LH (C21431)
  • 1 - Double Boring Holder (C22413)
  • 2 - Double Turning Holder (C21417)
  • 4 - Tool Holder A (C21411)
  • 2 - 3/8 Bushing (M2120)
  • 2 - 1/2 Bushing (M2121)
  • 2 - 5/8 Bushing (M2122)
  • 2 - 3/4 Bushing (M2123)
