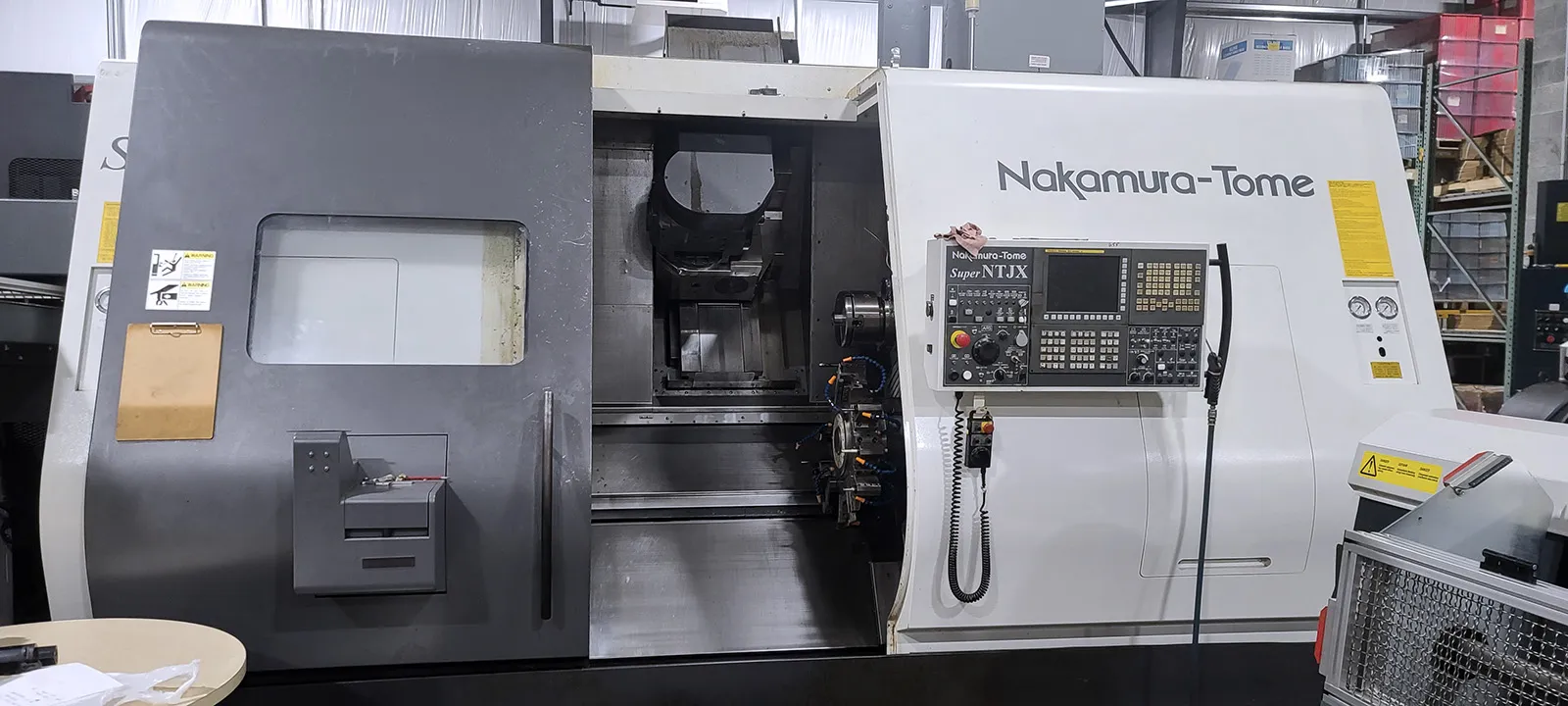

Nakamura Tome Super-NTJX_3715182

Nakamura Tome Super-NTJX 2007

Y-Axis Upper Tool Spindle, Y-Axis Lower Turret, CTS

request quote

Open price not currently available. Please Contact Us

machine specifications

  • Max. turning diameter / max. turning length:

    9.64” / 42.91”

  • Distance between spindles max:

    50.78” / min. 8.26”

  • Bar Capacity: :

    2.5”

  • Axis Travel:

  • Slide travel (X1 / X2 / Z1 / Z2 / B2):

    17.91” / 8.75” / 42.91”/ 39.56” / 39.68”

  • Slide travel (Y1 / Y2):

    ±2.76 / +.787”, -1.96”

  • Spindle L, R:

  • Spindle Speed:

    4500 RPM

  • L spindle motor:

    20/15HP / 221.5/162.5N·m

  • R spindle motor:

    15/10HP / 208/115N·m

  • Tool Spindle:

  • Tool Spindle Speed:

    12,000 RPM

  • TOOL SPINDLE MOTOR:

    10/5 HP, Max54N·m

  • Tool Shank Type:

    CAPTO-C6

  • ATC, Number of tools:

    40+120 (160)

  • Max. tool diameter / No adjacent tools:

    2.75” / 3.54”

  • Max. tool length / Max. tool weight:

    11.02” / 17.6 lbs

  • Orientation function:

    90 degree indexing

  • B-axis positioning range:

    190° (±95°)

  • Lower Turret:

  • Driven-tool spindle speed:

    3600 RPM

  • DRIVE MOTOR:

    7.5 / 5 HP / Max. 24N·m

  • Type of turret / Number of indexing pos.:

    Dodecagonalk / 24st

  • Drive type / Number of driven-tool stations indv. rotation / 12:

  • GENERAL:

  • Floor space (L × W × H):

    186” x 115” x 96.3”

  • Machine weight (incl.control):

    30,870 lbs

machine equipped with

  • Fanuc 31i-A CNC Control
  • 4500 RPM / 20HP / 65mm (2.5”) Bar Spindle Left
  • 6000 RPM / 15HP/ 51mm (2”) Bar Spindle Right
  • 20/15 HP Spindle Motor Left
  • 15/10 HP Spindle Motor Right
  • 10/5 HP Tool Spindle Motor
  • Tool Spindle Capto C6 Type
  • 12
  • 000 RPM Tool Spindle Speed
  • 40 ATC Tool Magazine
  • C-Axis Function
  • 3600 RPM / 7.5 / 5 HP Milling Turret
  • Y-Axis Upper Tool Spindle
  • Y-Axis Lower Turret
  • NT-Nurse II System
  • NT Work Navigator
  • Fixed Air Blow
  • L/R Spindle
  • Spindle Speed Override L/R
  • Parts Catcher “T”
  • NTJX
  • Coolant Non-Return Valve (U/L)
  • Manual Handle Retrace
  • Manual Pulse Generator
  • Manual Tool Setter
  • Barfeed Interface
  • Helical Interpolation
  • 160 Tool ATC (40+120)
  • Coolant Thru Turret
  • Lower
  • Coolant Thru Tool Spindle
  • Workpiece Counter Nakamura
