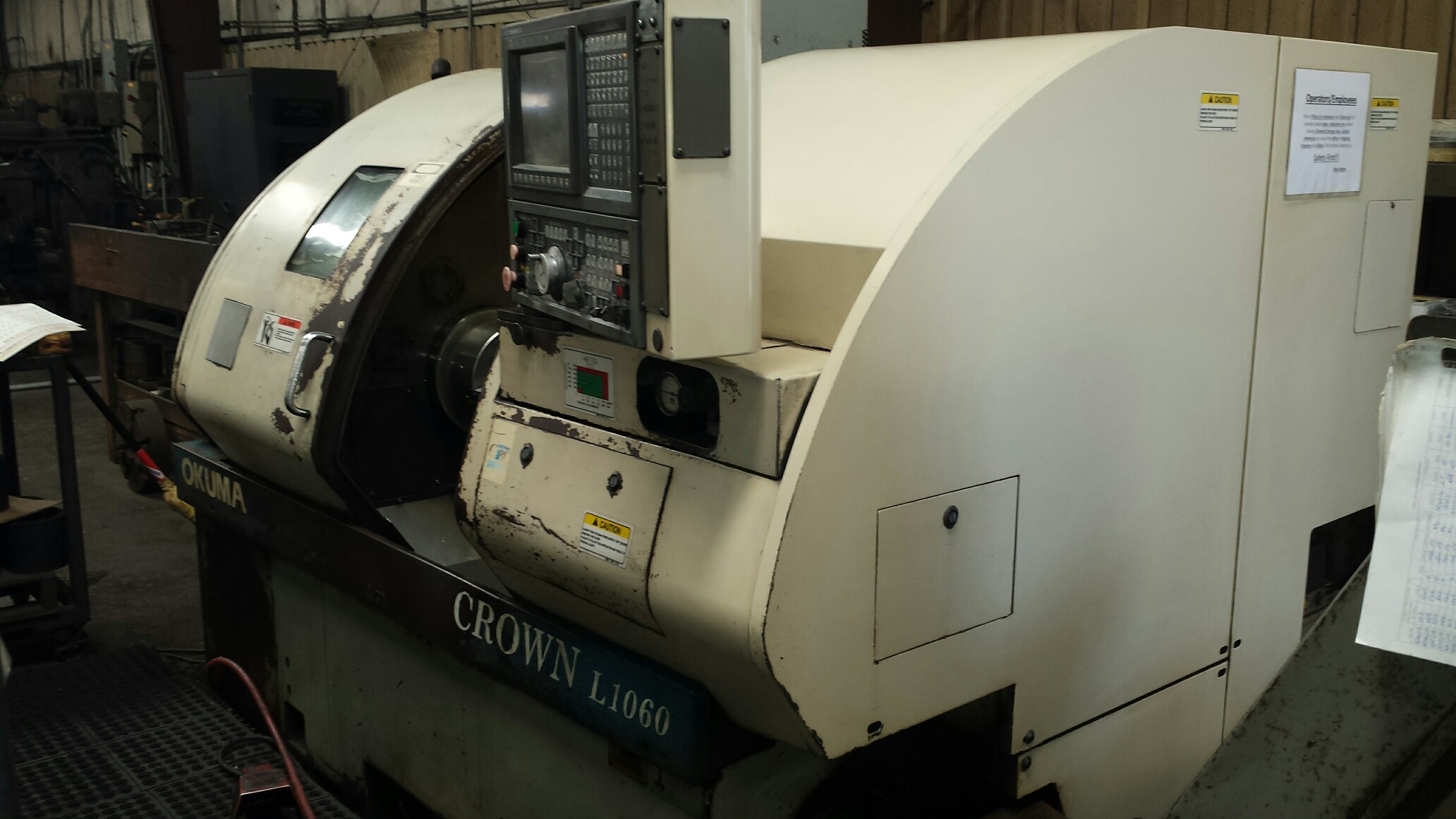

Okuma Crown L1060 2000

machine specification

• CHUCK SIZE (INCHES)
• 8"

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• SPINDLE TAPER (CAT/BT)
• HSK-463

• SPINDLE SPEED
• 12,000 RPM

• MAX SWING (INCHES)
• 17.32"

• BAR STOCK CAPACITY
• 2.0"

• PALLET SIZE (INCHES)
• 25"

• TABLE SIZE - L
• 61"

• TABLE SIZE - W
• 30"

• THROAT DEPTH
• 9.45"

• TOOL CHANGER TYPE
• 60 ATC

• TURRET CAPACITY
• 8 Positions

• MAX TURNING DIAMETER
• 21.7"

• MAX TURNING LENGTH
• 41.1"

• DISTANCE BETWEEN CENTERS
• 22.29"

• MAX BAR CAPACITY
• 3.0?

• SWING OVER BED
• 20.1?

• SWING OVER CROSS SLIDE
• 15.75"

• AXIS TRAVEL
• 7.28"

• Z AXIS TRAVEL
• 20.47"

• RAPID TRAVERSE X-AXIS
• 590 IPM

• RAPID TRAVERSE Z AXIS
• 787 IPM

• SPINDLE NOSE
• A2-8

• SPINDLE BORE
• 3.54?

• SPINDLE MOTOR
• 50 HP

• TURRET INDEX TIME
• 0.1 Second

• TAILSTOCK QUILL TRAVEL
• 4.7"

• TAILSTOCK TAPER
• MT-4

• TAILSTOCK QUILL DIAMETER
• 2.95?

• POWER
• 220v / 3-Phase

machine equipped with

• UPGRADED USB DRIVE
• NEW BEARINGS FOR HEADSTOCK
• REBUILT SPINDLE DRIVE
• 10" 3-JAW CHUCK
