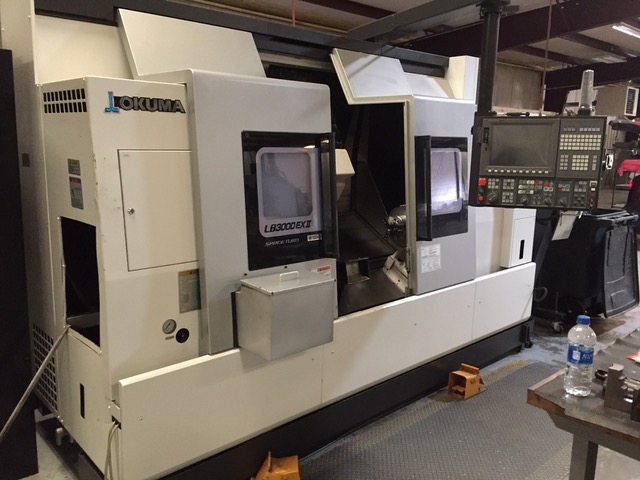

Okuma LB3000EXII-MYW 800 2014

machine specifications

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Wire Diameter (inches):

  3333

• V-Axis Travel:

  5555

• Throat Depth:

  9.45"

• Vertical Travel of Ram:

  4444

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Feedrates (X/Y/Z):

  984"/ 492"/1,181"/min

• Turret Capacity:

  8 Positions

• Max Swing (inches):

  17.32"

• Spindle Motor (HP):

  type Integral

• Spindle Speed:

  12,000 RPM

• Swing Over Saddle:

  18.5”

• Swing over Bed:

  22.83”

• Maximum Work Length:

  (x800) 37.40”

• Number of ranges 2:

  speed by winding

• Spindle Bore Diameter:

  3.15”

• Front Bearing Diameter:

  4.72”

• Spindle ID Taper:

  2 deg

• Main spindle motor power:

  20 minute rating 30 HP

• Spindle Nose:

  JIS Flat 140

• Number Of Ranges:

  2 speed by winding

• Spindle Bore Diameter:

  2.44”

• Spindle bearing inner diameter:

  3.94”

• Max cantilever weight on spindle:

  110 lbs.

• Sub Spindle Motor Type:

  Integral Motor/Spindle

• Sub Spindle Motor Power:

  15 minute rating 15 HP

• Sub Spindle Motor Power:

  con’t rating 10 HP

• M-Spindle Motor Power:

  (25 min/cont) PREX 9.5/5.5 hp

• M-Spindle Speed Range:

  45- 6,000 RPM

• Collet type:

  size ER 32

• Max. collet grip diam.Tool shank O.D.:

  0.787"

• Tool stations M capable All:

  12 turret stations

• X-Axis Servo Power:

  Okuma BL 4.6 HP

• Y-axis servo power:

  Okuma BL 4.6 HP

• Z-axis servo power:

  Okuma BL 6.1 HP

• Ball screw diameter X-axis:

  1.259". x 0.472"

• Ball screw diameter Y-axis:

  1.259 in. x 0.472"

• Ball screw diameter Z-axis:

  1.259 in. x 0.629"

• Effective thrust in X-axis X minus:

  45 minute rating

• Effective thrust in Y-axis decent:

  2,225. lbf 9.9 kN

• Effective thrust in Z-axis:

  45 minute rating 1,865 lbf 8.3kN

• Bearing location:

  Pre-Tensioned

• Materials Ran:

  Aluminum, Carbon Steel

• Cutting Hours:

  1845

• Spindle Hours:

  1271
