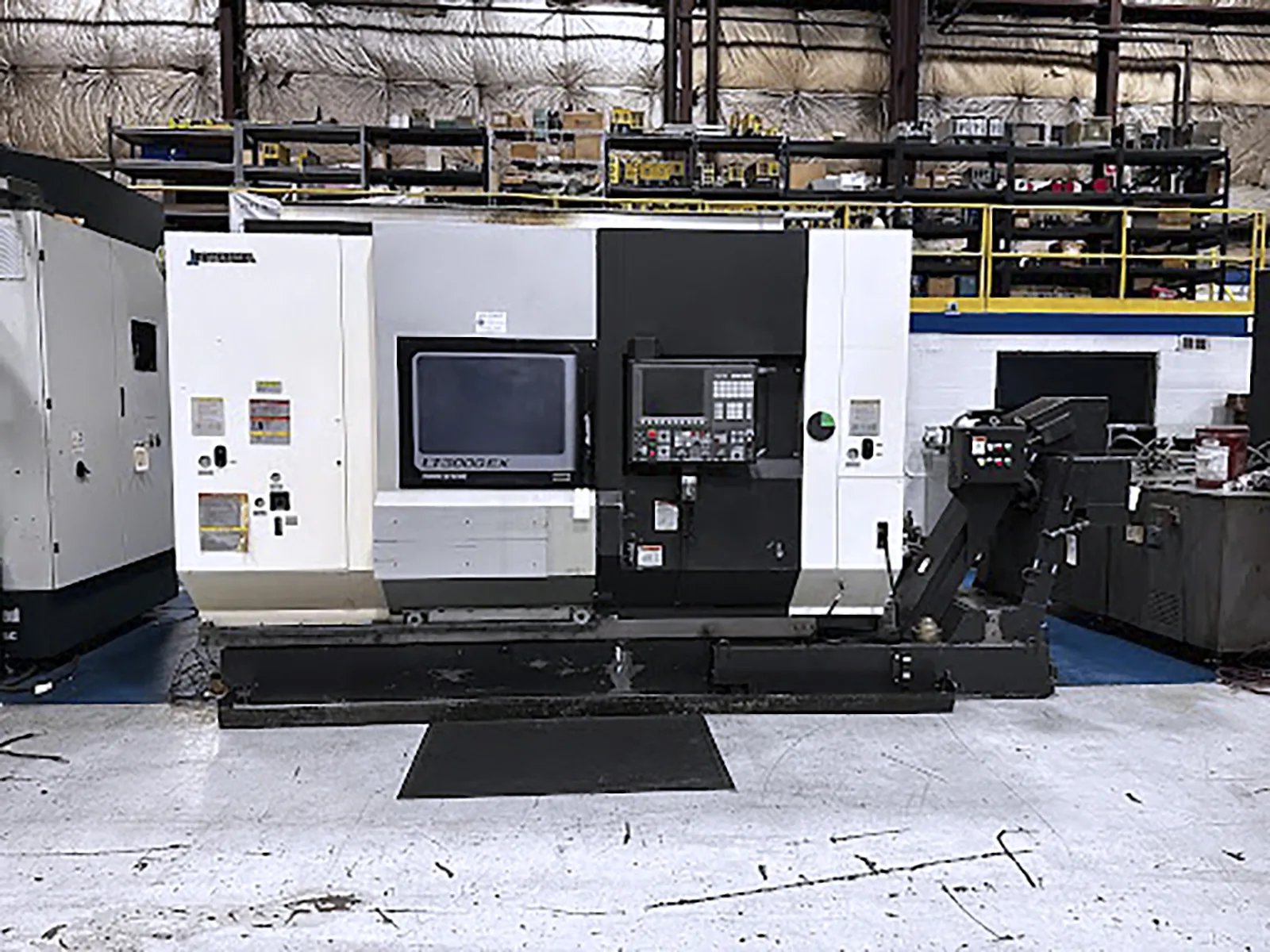

Okuma LT3000EX-2MY 2013

machine specifications

• Type of cnc control:

  OSP-P300L

• # Axis:

  9

• Swing:

  21.66 inch (550.16 mm)

• Turning Diameter:

  13.78 inch (350.01 mm)

• Center Distance:

  47.25 in (1,200.15 mm)

• Bar Capacity:

  2.75 inch (69.85 mm)

• X Axis Travel:

  10.04 inch (255.02 mm)

• X2 Travel:

  10.04 inch (255.02 mm)

• Z Axis Travel:

  36.61 in (929.89 mm)

• Z2 Travel:

  36.61 in (929.89 mm)

• Y-Axis Travel:

  4.92"

• C1/C2 Axis Index:

  0.001°

• B Axis Travel (Sub Spindle):

  37.01 in (940.05 mm)

• Y-Axis:

  Yes

• Spindle Nose:

  A2-6

• Spindle Speed:

  5,000 rpm

• Main Motor:

  30 hp

• Sub Spindle:

  Yes

• Sub Spindle Bar Capacity:

  2.75 in (69.85 mm)

• Sub Spindle Speed:

  5,000 rpm

• Sub Spindle Motor:

  30 hp

• Live Tooling:

  Yes

• Live Tooling Speed:

  6,000 rpm

• Live Milling Motor:

  10 hp

• Tailstock:

  No

• Number of Turrets:

  2

• Turret Capacity:

  16 + 16

• Machine Dimensions:

  158" x 110" x 118"

• Machine Weight:

  25,000 lbs (11,339.80 kg)
