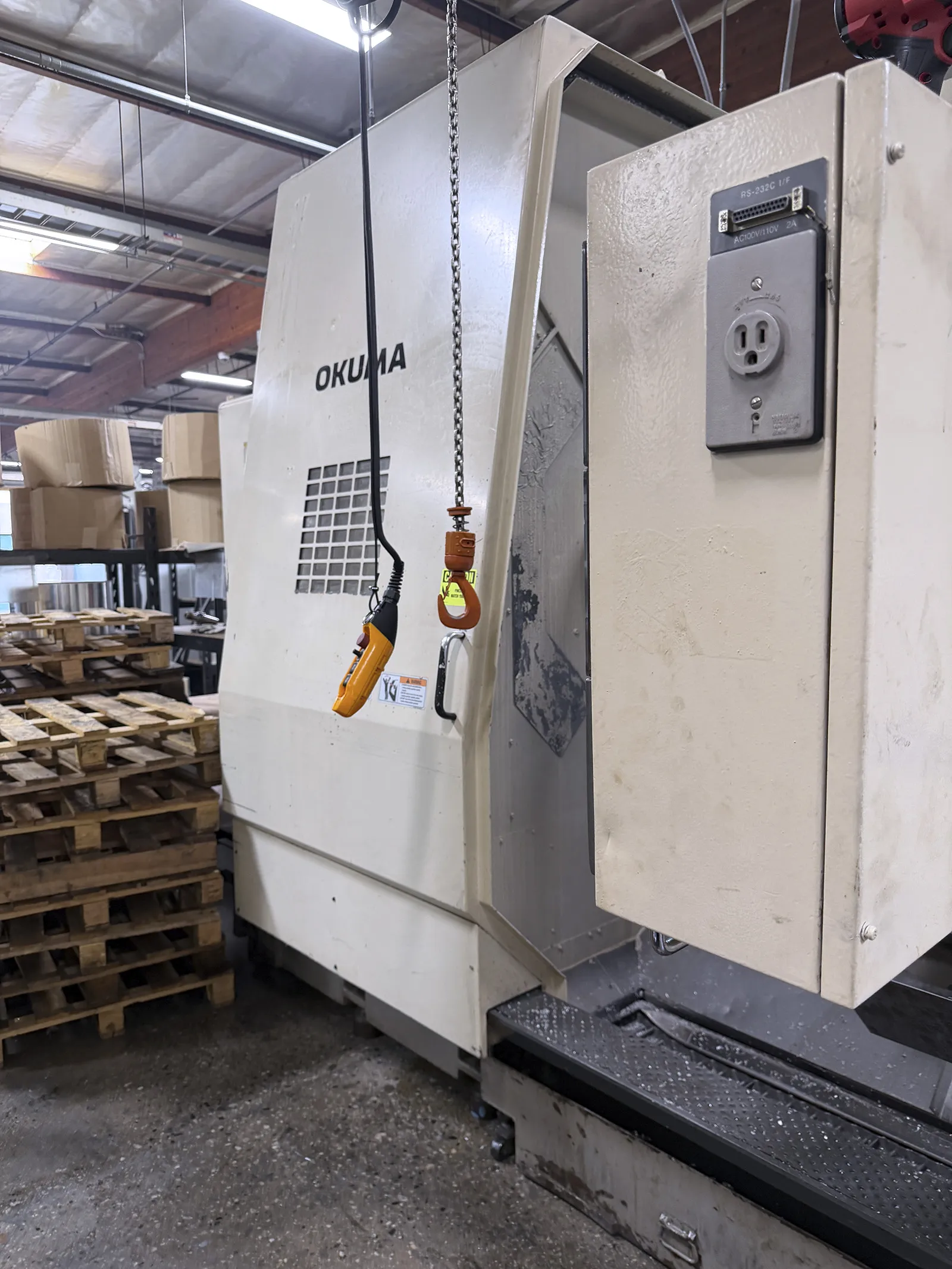

Okuma LU45-M 2001

machine specifications

• Swing:

  33”

• Swing Over Saddle:

  22”

• Machining Distance Between Centers:

  49.21”

• Travel, Z axis Upper Turret:

  42.91”

• Travel, Z axis Lower Turret:

  40.35”

• Travel, X-axis Upper Turret:

  17.32"

• Travel, X-axis Lower Turret:

  12.00"

• Travel, C Axis:

  360º

• Rotary Tool:

  40 – 2000 RPM

• Max Workpiece Diameter:

  XA/XB 23"/18”

• Spindle Speeds:

  12 - 2800 rpm

• Spindle Bore:

  5.12”

• Turret Stations:

  10 upper / 8 lower Live Mill / Drilling

• Spindle Nose:

  A2-11

• Rapids:

  Z/X 393/196 IPM

• Feed rates X-Z:

  0.0001---39.37 IPM

• Quill Diameter:

  5.12"

• Quill Travel:

  6.69”

• Morse Taper:

  No. 5

• Main motor (Cont./30 Min):

  (Cont. 30 Min) 50 HP / 60 HP

• Electrics:

  220/480/3/60

• Approximate Dimensions:

  294" x 89" X 82”H

• Approximate Weight:

  29,700 Lbs.
