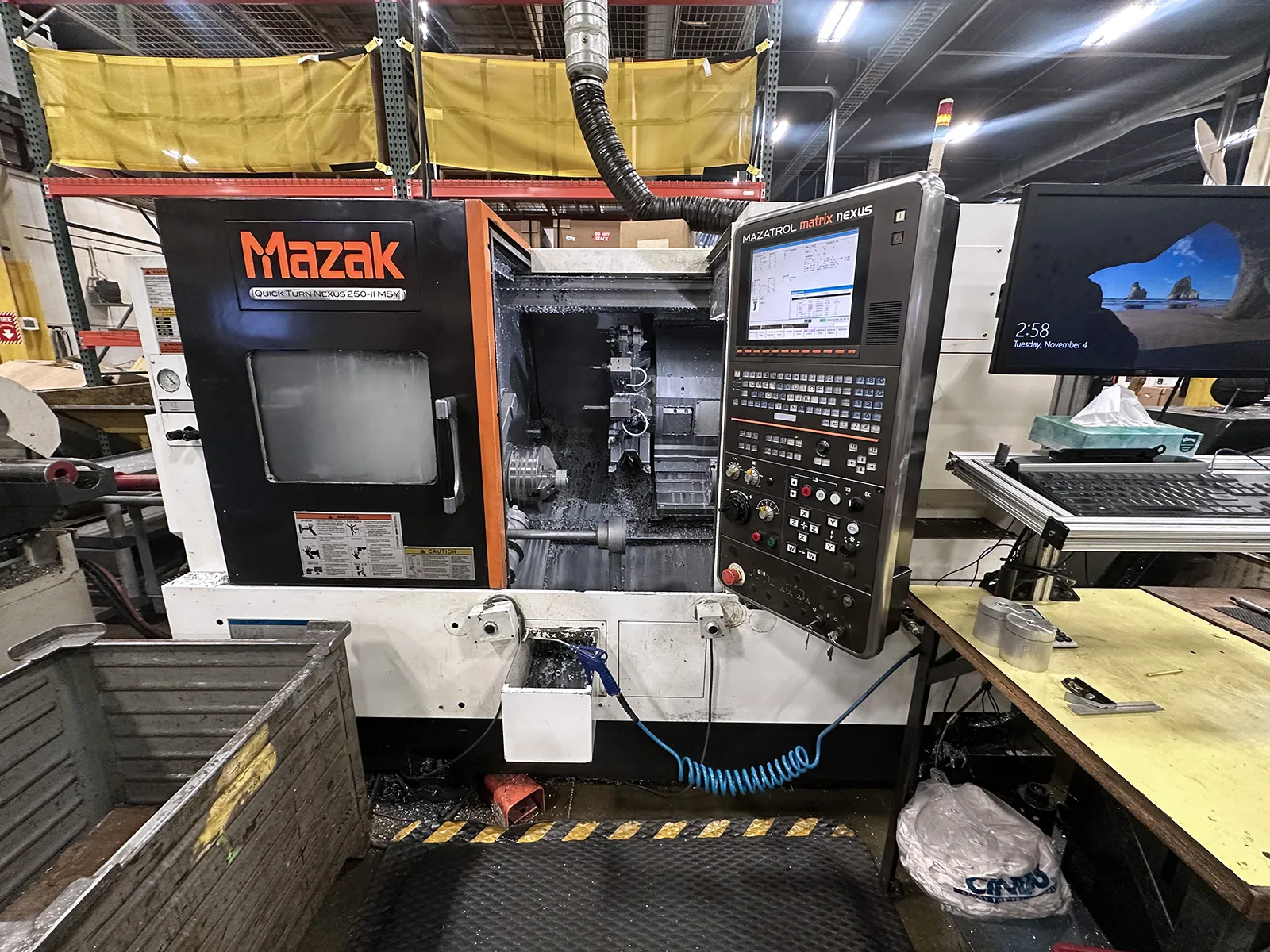

Mazak QTN 250MSY 2011

machine specifications

• Maximum Swing :

  26.5"

• Max Turning Diameter:

  14.75"

• Main Spindle Bore/Max Bar Capacity :

  3.46"/ 3.0"

• Maximum Swing over Cross Slide:

  14"

• Distance Between Spindles:

  21.28"

• X-Axis Travel (X1, X2, X3) :

  9

• Z-Axis Travel (Z1, Z2, Z3):

  22.62

• Y-Axis Travel (Y1, Y2, Y3):

  + / - 2.0"

• C-Axis Indexing (1, 2):

  .0001 DEGREE

• Main Spindle Chuck Size :

  10"

• Main Spindle Bore Diameter:

  3.46"

• Main Spindle Maximum Bar Work:

  3"

• Main Spindle Speed:

  4,000 RPM

• Main Spindle Horsepower (CONT. /30 MINS):

  35/ 30

• Sub Spindle/2nd Spindle Chuck Size:

  6

• Sub Spindle/2nd Spindle Bore Size:

  1.69" THROUGH HOLE

• Sub Spindle/2nd Spindle Speed:

  6,000 RPM

• Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) :

  10

• Turret Tool Positions:

  12

• High Pressure Coolant System (PSI):

  213
