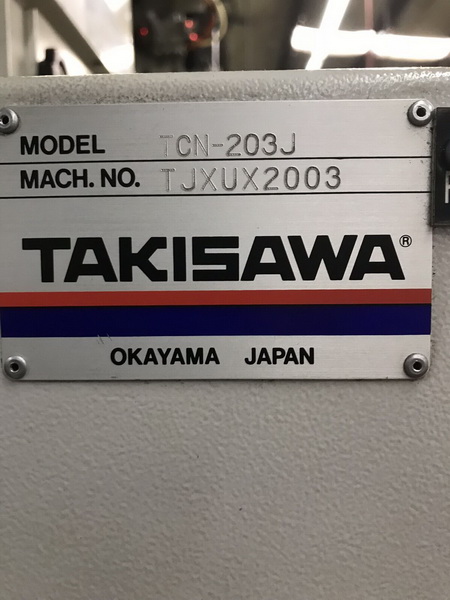

Takisawa TCN-203J 2014

machine specifications

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Resonator ( Type ):

  55

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  15 HP

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Turret Capacity:

  8 Positions

• Turning Diameter Max:

  14.75"

• Turning Length:

  Max 11.81" Opt Max: 23.62"

• Quill Diameter:

  2.95"

• Stroke:

  4.530

• Quill Center:

  MT#4

• Body Travel:

  4.53"

• Spindle Bore:

  2.48"

• # Speed Ranges:

  1

• Primary Tool Carrier:

  Turret Std

• Max Tools Turning:

  8

• Tool Shank Size Square:

  1"

• Tool Shank Size Round:

  1.25"

• Second Tool Carrier:

  Turret Opt

• Max Tools Turning:

  12

• # of Simultaneous Cutting Tools:

  1

• Travel Max Feed Rapid Rate X:

  787 IPM

• Travel Max Feed Rapid Rate Z:

  945 IPM
