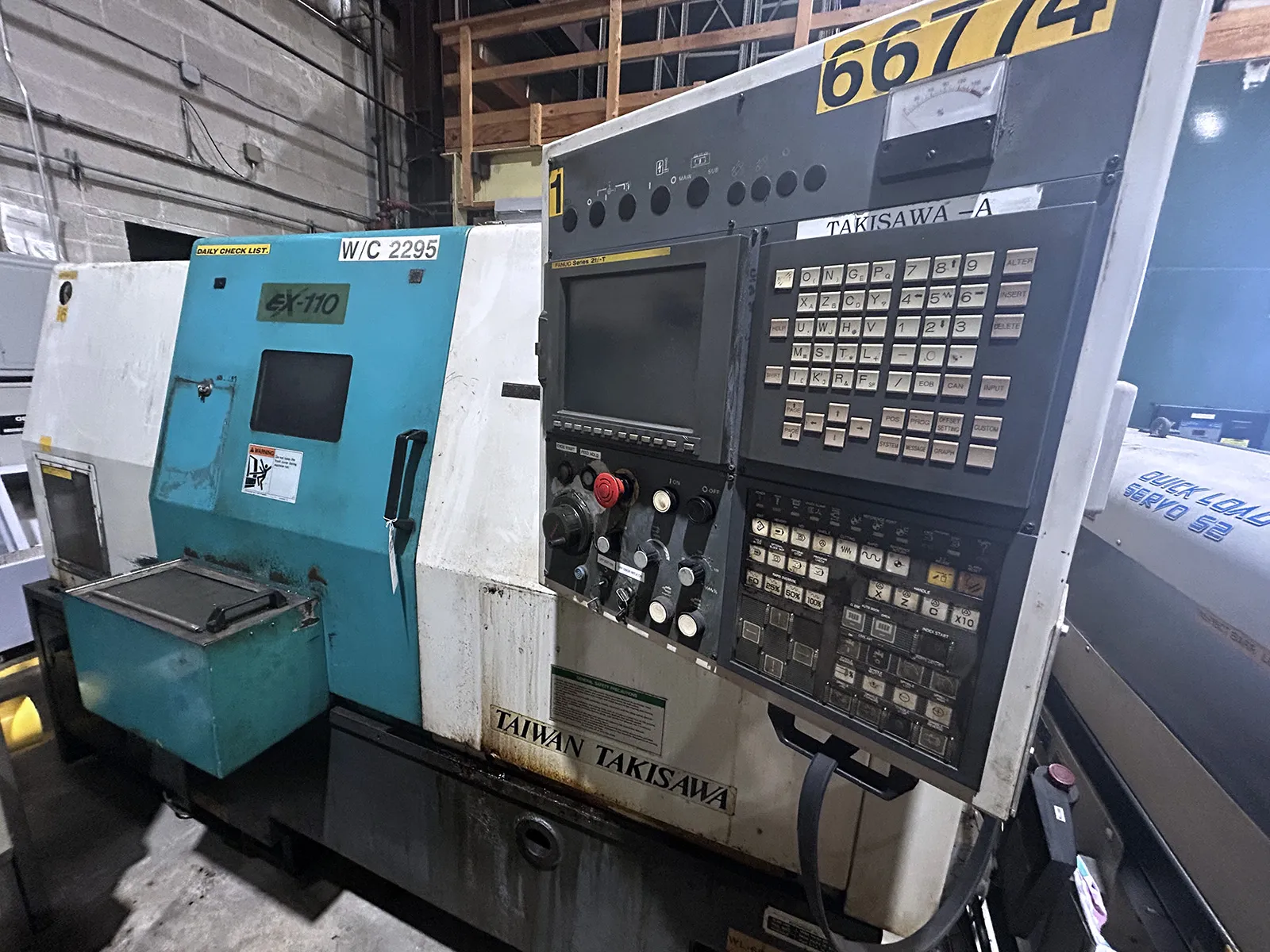

Takisawa EX-110 2003

machine specifications

• X Axis Travel:

  8 1/2"

• Z Axis Travel:

  28"

• Chuck Size:

  10"

• Chuck Size – Maximum Swing:

  19 1/2"

• Turning Diameter Maximum:

  15 3/4"

• Turning Length Maximum:

  28"

• Bar Capacity:

  3"

• Tailstock Quill Diameter:

  4 1/4"

• Tailstock Stroke:

  5.880"

• Tailstock Quill Center:

  MT#5

• Tailstock Body Travel:

  22.880"

• Spindle Speed Variable:

  50 – 3500 RPM

• Spindle Nose:

  A2-8

• spindle power:

  25 HP

• Spindle Bore:

  3.38"

• Turret, Bi-Directional:

  12 Position

• Tool Shank Size Square:

  1"

• Tool Shank Size Round:

  2"

• Approximate Dimensions:

  110"L x 67"W x 71"H

• Approximate Weight:

  11,000 Lbs
