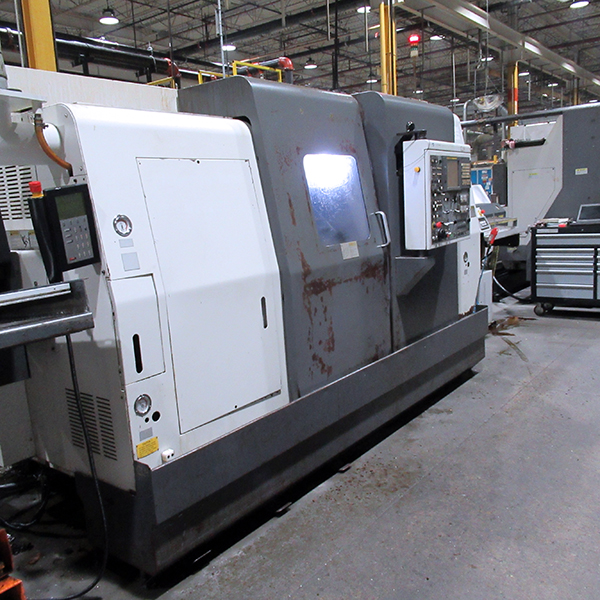

Nakamura Tome WT-250 2005

machine specifications

• Max Turning Diameter:

  15.34"

• Number Of Positions (Turret One/Two):

  24/12 Live Tool Positions

• Number of Turrets:

  2

• Rapid Traverse C-Axis:

  25 RPM

• X-Axis (X1/X2):

  7.67"

• Spindle Motor Power:

  25 HP Main/15 HP Sub-Spindle

• Spindle Bore Capacity Main & Sub:

  3.15"

• Main & Sub Spindle Speed:

  4500 RPM

• Main Spindle Bar Capacity/Subspindle:

  2.56" / 2.54"

• Spindle Nose Size:

  A2-6 (Main & Sub)

• Chuck Size:

  CB 65mm ( Main & Sub)

• Max Machining Length:

  17.12"

• Shaft Diameter:

  9.84"

• Max Swing over Bed:

  16"

• Driven Tool Speed:

  5,000 RPM

• Y-Axis (Y1/Y2):

  18.9"

• C-Axis Min Travel (1/2):

  .001"

• Rapid Traverse Rates (X1/X2):

  472 IPM

• Rapid Traverse Rates (Z1/Z2):

  945 IPM

• Turret Rotary Tool Horsepower (1/2):

  7.5 HP
