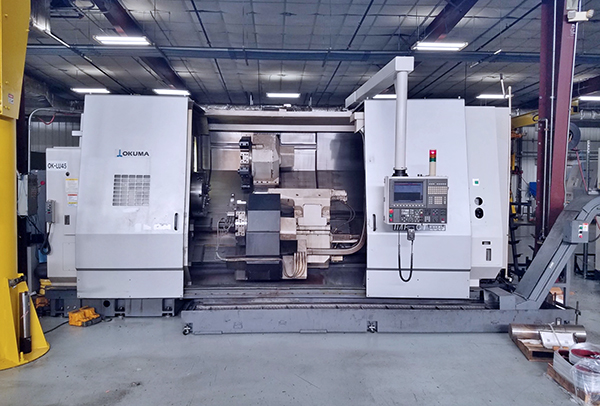

Okuma LU45 2SC2000 2011

machine specification

• SWING OVER BED
• 33.07"

• SWING OVER SADDLE
• 22"

• MAX TURNING DIAMETER (UPPER)
• 25.98"

• MAX TURNING DIAMETER (LOWER)
• 18.11"

• MAX TURNING LENGTH
• 78.74"

• X-AXIS TRAVEL LOWER
• 12"

• X-AXIS TRAVEL UPPER
• 17.32"

• SPINDLE BORE
• 10.2"

• SPINDLE NOSE
• A2-20

• SPINDLE SPEED
• 900 Rpm

• SPINDLE MOTOR
• 60 Hp

• TURRET POSITIONS
• 22 (12 Upper/10 Lower)

machine equipped with

• OKUMA OSP-P200LA CONTROL
• UPPER & LOWER TURRETS
• 25”
• 4-JAW
• AIR CHUCK (BISON)
• SUPER BIG BORE OPTION (10.2”)
• PROGRAMMABLE TAILSTOCK
• STEADY REST
• CHIP CONVEYOR
• ROYAL MIST COLLECTOR (FX1200)
• PREPPED FOR A REAR-MOUNTED CHUCK
• RAPID TRAVERSE OVERRIDE SWITCH
• OSP CONTROL OPTIONS (OSP DATA CARD AVAILABLE UPON REQUEST):
• SPINDLE FLUCTUATE
• HI-G CONTROL
• 3D ANIMATION
• ANIMATION
• MAC MAN
• TOOL WEAR COMPENSATION
• TOOL LIFE MANAGEMENT
• TURRET POSITION COMPENSATION
• SPINDLE ORIENTATION
• CUSTOM-API
