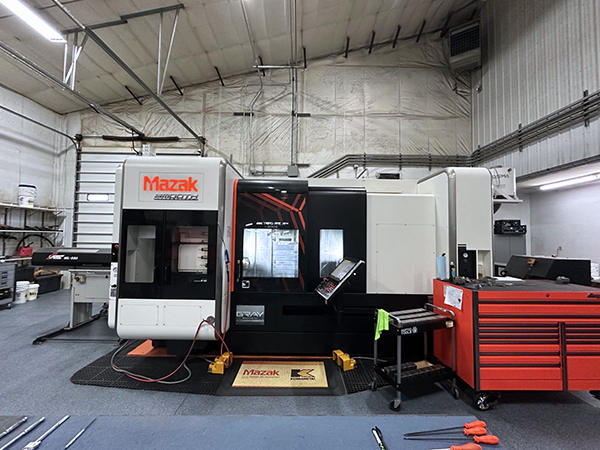

Mazak Integrex i-200SW x 60” 2016

machine specification

• MAXIMUM SWING
• 25.91"

• MAXIMUM TURNING DIAMETER
• 25.91"

• MAXIMUM MACHINING LENGTH
• 60"

• BED LENGTH
• 60"

• X AXIS TRAVEL
• 60"

• Y AXIS TRAVEL
• 10.24"

• Z AXIS TRAVEL
• 60"

• B AXIS TRAVEL
• 240 degrees

• W AXIS TRAVEL
• 41.97"

• C AXIS TRAVEL
• 360 degrees (0.0001)

• RAPID TRAVERSE RATE (X,Z)
• 1,969 IPM

• RAPID TRAVERSE Y
• 1,575 IPM

• MAIN SPINDLE
• ---

• SPINDLE BORE
• 2.6"

• MAXIMUM SPEED
• 5,000 rpm

• SPINDLE NOSE
• A2-6

• C AXIS
• 0.0001 Degree Increment

• SPINDLE MOTOR
• 30HP

• SUB SPINDLE
• ---

• SUB SPINDLE BORE
• 2.6"

• MAXIMUM SPEED
• 5,000 rpm

• SPINDLE NOSE
• A2-6

• C AXIS
• 0.0001 Degree Increment

• SPINDLE MOTOR
• 15 hp

• MILLING SPINDLE
• ---

• TOOL TYPE
• KM63

• AUTOMATIC TOOL CHANGER
• 72 Station

• MAX TOOL DIAMETER
• 4.92"

• MAX TOOL LENGTH
• 15.75"

• POWER ON HOURS
• 6573 Hours

• CUTTING HOURS
• 1663 Hours

machine equipped with

• ATS SYSTEMS UC2 215/66 QUICK CHANGE CHUCK W/S-1875 CYLINDER
• ATS SYSTEMS UC2 215/66 QUICK CHANGE CHUCK W/Y-1530 CYLINDER
• 72 TOOL KM MAGAZINE
• AUTOMATIC PARTS CATCHER W/EJECT (2.56” DIA 4.7” L X 5.5 LBS)
• MIST COLLECTOR (GP1000) 1500U
• PREP FOR 1000 PSI SUPER FLOW COOLANT THRU SPINDLE
• LNS TURBO MICRO HINGE 250 CHIP CONVEYOR (60” BED)
• ATS SYSTEMS ML3-580S SERVO BARFEED (72 TOOL MAG)
• OVERLOAD DETECTION SYSTEM
• AUTO PECKING CYCLE W/LOAD DETECTION
• EIA/ISO CONVERSION
• SMOOTH ENGRAVING FUNCTION
• RE-THREADING FUNCTION
• THREAD START POINT COMPENSATION
• MILL TURNING (MAZATROL)
• MAXIMUM PROGRAM SIZE: 32MB
• F) TOOL RADIUS COMPENSATION / 5-AXIS (G41.5/G42.5)
• SIMULTANEOUS 5-AXIS FOR 2ND SPINDLE (0.0001 DEG 2ND DEG SP REQ)
• MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT UNIT
• TURRET AIR BLAST (FLOOD COOLANT NOZZLE)
• PREP FOR MULTI & FLASH TOOL SYSTEM

machine description

Used Mazak Integrex i-200SW x 60”. This pre-owned CNC Turning Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mazak CNC Turning Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
