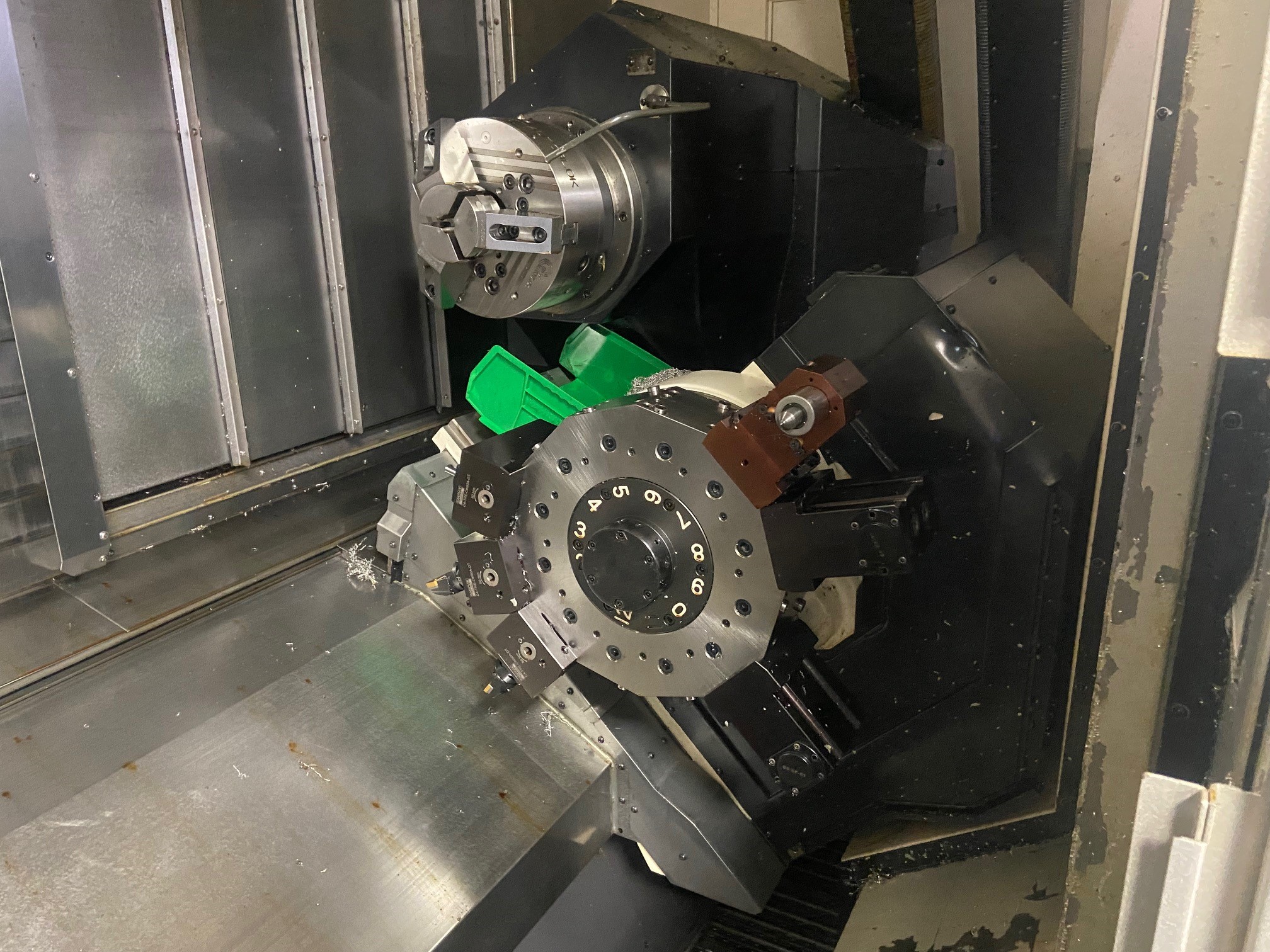

Okuma Multus U3000 2SW/1500-BB-SB 2018 1

Okuma Multus U3000 2SW/1500-BB-SB 2018

Sell Similar Machine

Get a quote to sell your machine
Buy Similar / Same Machine

View available similar machines
Activate Search Agent

We'll help you find what you need

machine specifications

  • Swing over Bed:

    25.59"

  • Distance Between Center:

    74.33"

  • C Axis Main & Sub Spindle:

    360 degrees

  • Max Recommended Turning Diameter, Upper Turret :

    25.59"

  • Coolant Tank Capacity:

    129.5 Gals

  • Max Recommended Turning Diameter, Lower Turret :

    12.59"

  • Max Recommended Turning Length with Std Chuck(s):

    63.14"

  • Power Requirement:

    208 Volts, kVA without Optional Equipment Standard Spindle 67.4

  • Floor Space Requirements:

    (without Chip Conveyor) 213.6" x 117.9 x 116.3"

  • Travel, X-Axis, Upper Turret:

    25.39"

  • Travel, X-Axis, Lower Turret:

    9.25"

  • Weight:

    35640 lbs

  • Travel, Y-Axis, Upper Turret:

    9.84" (+/- 4.92")

  • Travel, Z-Axis, Upper Turret:

    62.99"

  • Travel, Z-Axis, Lower Turret:

    57.52"

  • Travel, W-Axis (Tailstock or Sub-Spindle) :

    53.52"

  • B-Axis Travel (H1 Turret) :

    240 Degrees (-30 to +210)

  • Rapid Travel IPM X-Axis, Upper Turret:

    1968

  • Rapid Travel IPM Y-Axis, Upper Turret:

    1575

  • Rapid Travel IPM Z-Axis, Upper Turret:

    1968

  • Rapid Travel IPM X-Axis, Lower Turret:

    984

  • Rapid Travel IPM Z-Axis, Lower Turret:

    1575

  • Rapid Travel IPM W-Axis:

    1181

  • Axis Thrust, Tailstock, lb-f:

    N/A

machine equipped with

  • 5-Axis Machining Kit
  • Helical Cutting Function for MY
  • Hi-Cut Pro
  • Home Position Function (G20)
  • Inch / Metric Switchable
  • LAP-4 (canned lathe cycles and sub-routine calling)
  • Lathe Tool Index Function - Multiedge
  • Load Monitor
  • Message Function
  • MT Connect Capability
  • NC Work Counter
  • Negative Tool Radius Compensation
  • Off-Center Turning Function (Y-Axis)
  • OSP Suite Operation Panel
  • Pitch Error Compensation
  • Rapid Traverse Override Switch
  • Spare M-Codes 8 Sets
  • Spindle Orientation Electric Type
  • Spindle Sync. Tapping (Live Tooling Spindle)
  • Tool Offsets 9999 Sets
  • Tool Wear Compensation
  • Thermal Compensation TAS-C
  • Thermal Compensation Spindle TAS-S
  • High Accuracy C-Axis on Left Spindle
  • Big Bore configuration w/Big Bore Cylinder & Drawtube
  • 10" SMW 3 Jaw Chuck w/A2-8 Mount on Main and Sub Spindle
  • B-Axis Positioning Only - 0.001 degree for H1 Turret
  • B-Axis Fully Contouring (NC-B) for H1 Turret
  • Synchronized Tapping Function for H1 Turret
  • 12 Station Lower Turret w/Static Tooling
  • 40 Station CAPTO C6 ATC
  • Touchsetter A for 2S
  • Renishaw RMP60 Capto C6 Auto Gauging
  • Gauging Data Printout
  • Renishaw Inspection Plus Software
  • Y-Axis Gauging
  • Barfeeder Interface Universal Type
  • LNS Blaze Air U48 UnLoader
  • Okuma Unloader Interface
  • Parts Catcher 2S for Main Side
  • LNS Quick Load Servo 80 S2 Automatic Magazine Loader
  • MP Systems 1000PSI RF8 Twin 8 GPM High Pressure Coolant System
  • LNS MH500 Custom Extended Length Conveyor to clear Blaze Air Unloader

machine description

Used Okuma Multus U3000 2SW/1500-BB-SB. This pre-owned CNC Turning Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Okuma CNC Turning Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
