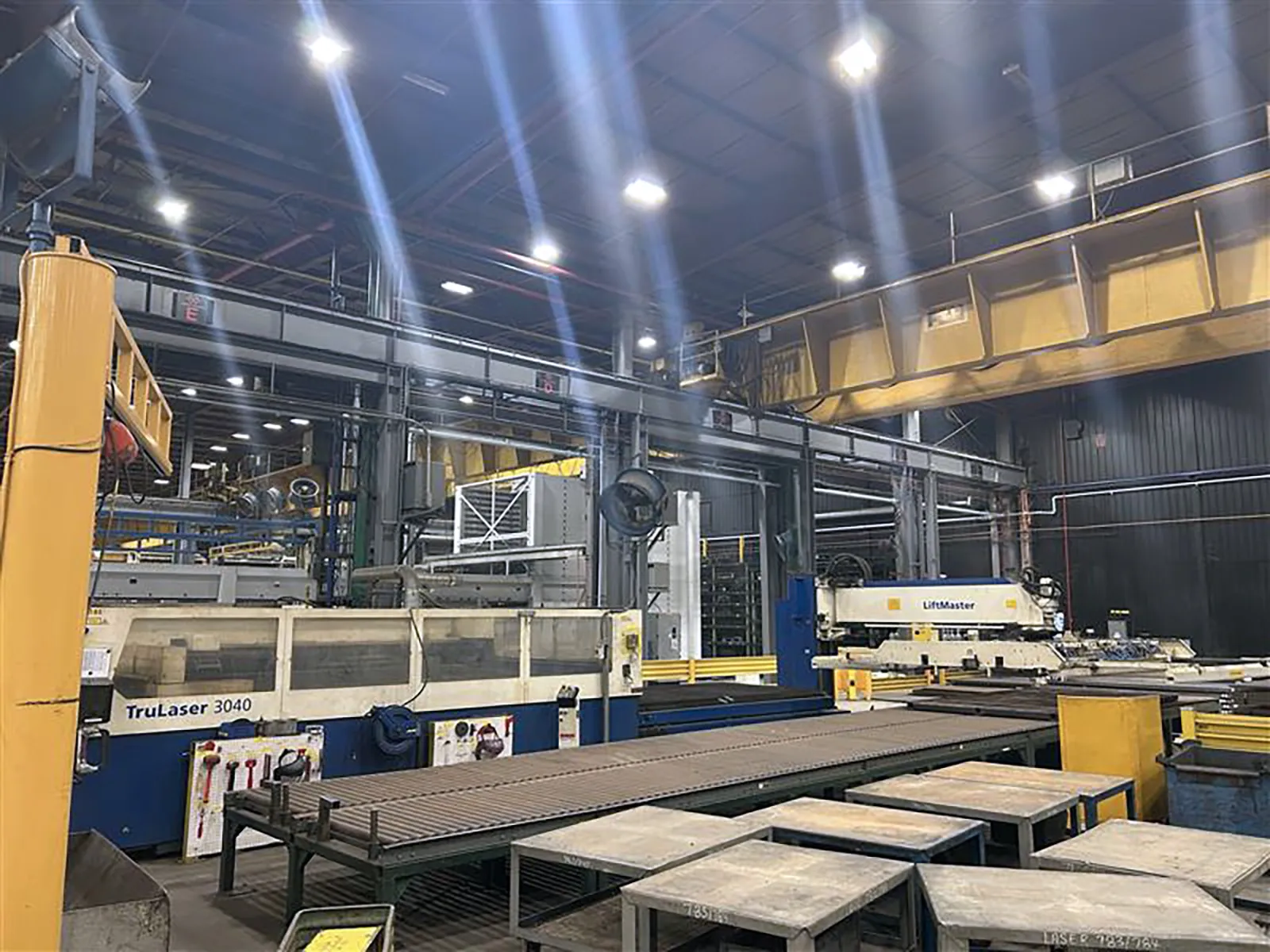

Trumpf TruLaser 3040 2008

machine specifications

• Laser Power:

  4,000 Watt CO₂

• Automation:

  TRUMPF LiftMaster

• LiftMaster Serial Number:

  N0024A0226

• Working Envelope:

• Sheet Capacity:

  5' x 10' (60" x 120")

• X Travel:

  Approximately 120"

• Y Travel:

  Approximately 60"

• Z axis:

  Approximately 4.5"

• Maximum Sheet Weight:

  2000 lbs

• Laser:

• TRUMPF 4 kW Fast Flow CO₂ Resonator:

• Continuous Wave CO₂ Laser:

• Flying Optics Design:

• Automatic Beam Focus:

• Piercing Optimization:

• Automatic Nozzle Calibration:

• Automatic Height Sensing:

• Cutting Capacities:

• Mild Steel:

  0.79" (20 mm)

• Stainless Steel:

  0.63" (16 mm)

• Aluminum:

  0.39" (10 mm)

• Position Accuracy:

  ±0.004"

• Repeatability:

  ±0.0015"

• Rapid Traverse:

  Up to approximately 6,600 IPM (170 m/min)

• Control:

  TRUMPF CNC Control

• Features Include:

• Graphic programming:

• Automatic nesting compatibility:

• Job memory:

• Remote diagnostics:

• Automatic parameter selection:

• Electronic Requirements:

• 460V / 3 Ph / 60 Hz:

• Connected Load:

  88 kVa

• Required Protection:

  150 Amp
