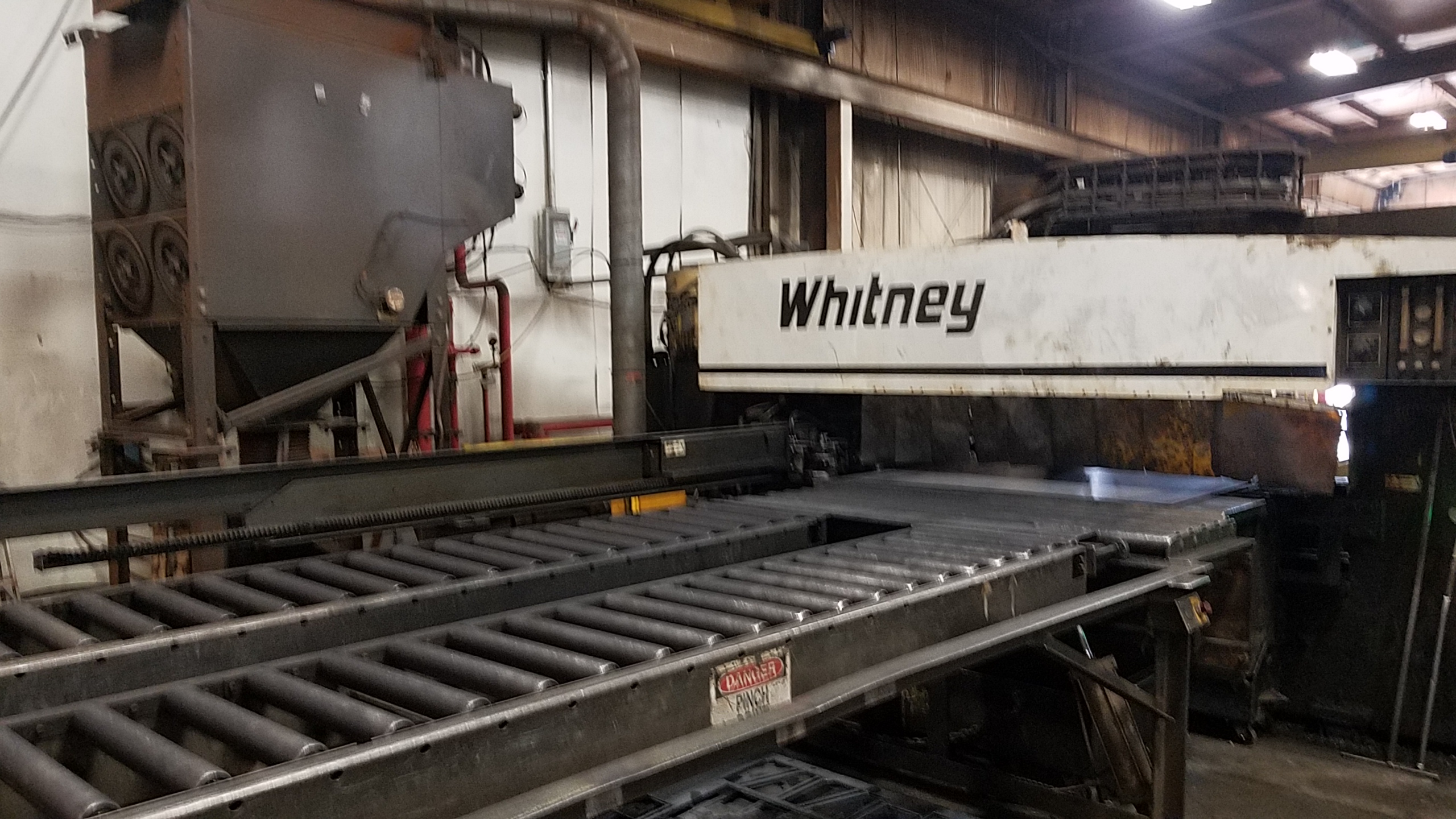

Whitney 3400 XP 2003

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Y - Axis Travel (inches):

  15.7" / 400mm

• Throat Depth:

  9.45"

• Punch & Plasma Cut Without Reposition:

  5' X 10'

• Maximum Work piece Weight:

  1,000 lbs

• Maximum Thickness:

  .500"

• Tooling Style:

  35 TC

• Number of Tools:

  9

• Maximum Tool Diameter:

  (.250" Thickness): 5.00"

• Automatic Small Parts Removal:

  24" X 60"

• Dust Collector Height:

  136"

• Slag Collection:

  Dry

• Shipping Weight Approx:

  14,000 lbs
