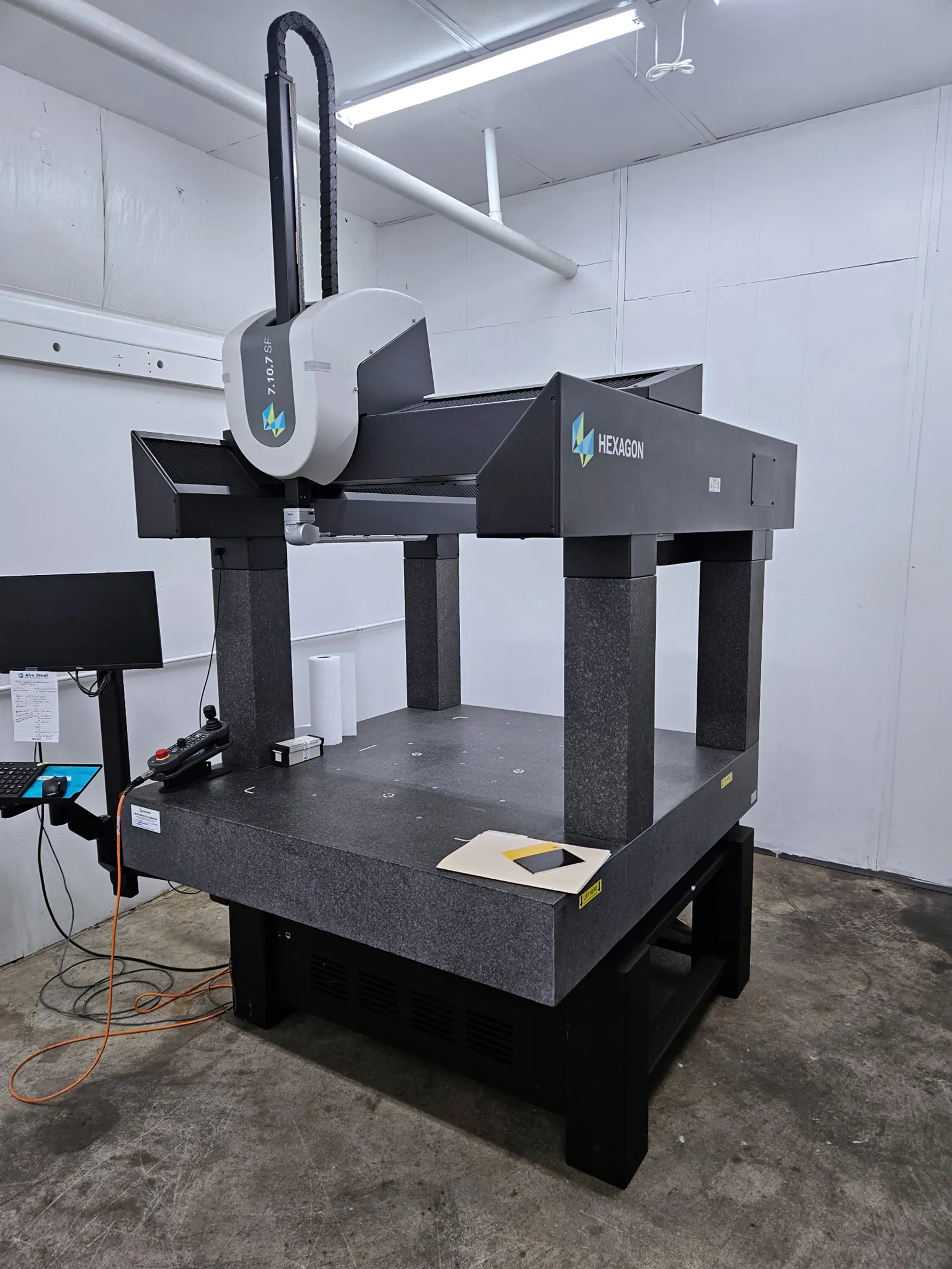

Hexagon 7.10.7 SF 2021

machine specifications

• Measuring envelope:

  27.95" (X) × 39.76" (Y) × 26.77" (Z)

• Work capacity:

  34.50" (X) × 54.72" (Y) × 31.22" (Z)

• Max Workpiece Weight:

  2,000 lbs

• overall size:

  87.01" (L) × 69.06" (W) × 108.66" (H)

• Weight:

  3,711 lbs

• Performance & Motion Resell CNC:

• Max 3D velocity:

  520 mm/s

• Acceleration:

  1,732 mm/s²

• X, Y, Z travel:

  27.56" / 39.76" / 26.77"

• Electrical & Setup Hexagon+1:

• Power:

  110/220 VAC (no shop air required)

• Self-contained unit with integrated computer, controller, and interface boxes:

• Accuracy Nexus:

• ISO 10360-2 (2009) reference:

  3.1 μm + 0.05 + (3.0 + 0.2) L / 1000 at 20 °C

• Temperature Range:

  15–40
