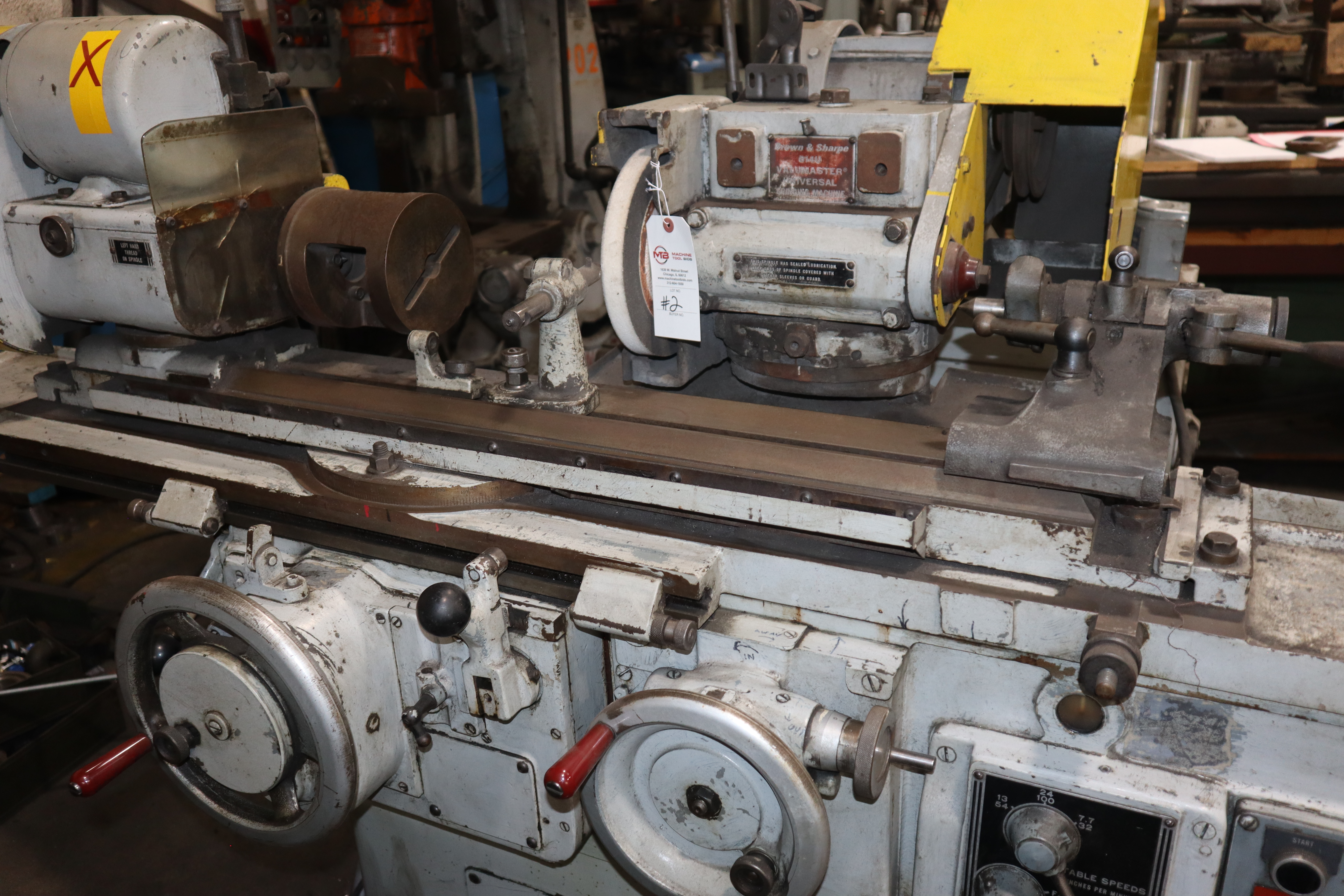

Brown & Sharpe 814U

machine specifications

• CAPACITY GRIND WORK UP TO:

  8" DIAMETER

• CAPACITY LENGTH::

  14"

• CAPACITY DISTANCE BETWEEN CENTERS::

  24"

• GRINDING WHEEL SIZE::

  7" Diameter

• GRINDING WHEEL SPEED(3)::

  2730, 3600, & 5150 RPM

• WHEELHEAD TRAVEL::

  8-3/8"

• WHEELHEAD SWIVELS, LEFT & RIGHT::

  110 DEGREES

• SWIVEL TABLE ANGULAR SETTING TO LEFT & RIGHT: :

  90 DEGREES

• SWIVEL TABLE FINE SCREW ADJ. FOR SETTING TAPERS UP TO::

  3" PER FT

• TABLE TRAVEL::

  22"

• TRAVEL PER REV. OF HANDWHEEL::

  1/4" SLOW

• HEADSTOCK SWIVELS LEFT & RIGHT::

  100 DEGREES

• HEADSTOCK SPINDLE SPEEDS(4)::

  128 TO 540 RPM

• VOLT WHEELHEAD MOTOR::

  1 H.P. 3/60/230-460

• WORKHEAD MOTOR::

  1/6 H.P.
