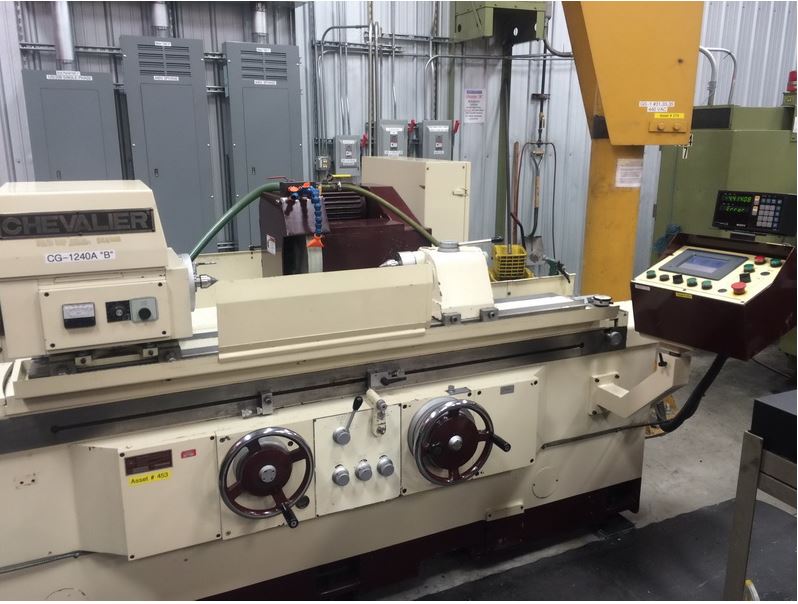

Chevalier CG-1240A 1999

machine specifications

• Max Swing (inches):

  17.32"

• Dist. Between Centers (inches):

  39.3"

• Table Speed:

  2" - 118 IPM

• Table Minimum Traverse Length:

  0.3"

• Max Grinding Length:

  39.3"

• Max Grinding OD:

  11.81"

• Workhead - Swiveling Angle, CCW:

  90 Degrees

• Workhead - Spindle Center:

  MT4

• Workhead - Spindle Rotation:

  Dead & Live Spindle

• Workhead Motor:

  2 HP

• Table Swivel Angle:

  +/- 7 degrees

• Wheelhead- Grinding Wheel Size:

  16" x 2" x 5"

• Wheelhead- Grinding Wheel Speed:

  1650 RPM

• Wheelhead- Max Periphery Speed:

  6480 RPM

• Wheelhead- Maximum Infeed Travel:

  9.64"

• Wheelhead Motor:

  5 HP

• Max Grinding Wheel Travel:

  7.87"

• Infeed Handwheel per Revolution:

  1" Diameter

• Infeed Handwheel per Graduation:

  .0002"

• Traverse Grinding Range:

  0.00001" – 0.04"

• Plunge Grind Feed Rate Range:

  0.00001" – 0.04"

• Tailstock- Quill Travel:

  1"

• Tailstock Center:

  MT4

• Rapid Advance & Retract Max Distance:

  1.77"

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Bar Stock Capacity:

  2.0"

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Pallet Size (inches):

  25"

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Chuck Size (Inches):

  8"
