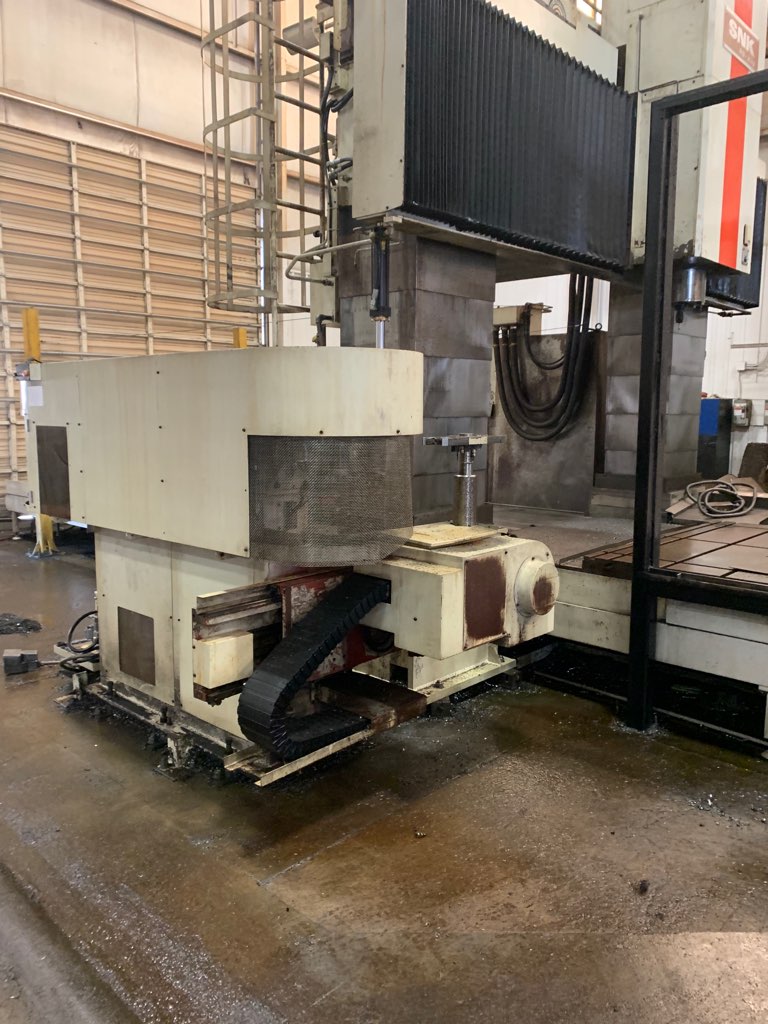

SNK RB-4VM 2010

machine specifications

• Table Working Surface:

  2,000 x 6,000 mm (78.7 x 236.2 in)

• Permissible Workpiece Weight:

  15,000 kg (33,069 lbs)

• Spindle Speeds:

  40 - 4,500 rpm

• Spindle Nose:

  CAT 50

• Spindle Motor:

  VAC 50 hp (30 min) / 40 hp (cont.)

• Spindle Torque:

  1177 Nm

• Distance Between Columns:

  2,400 mm (94.4 in)

• Distance from table top to spindle end:

  0 to 1,500 mm (0 - 59.0 in)

• Table Longitudinal X-Axis :

  6,250 mm (246.0 in)

• Spindle Transverse Y-Axis:

  2,400 mm (94.4 in)

• Spindlehead vertical Z-Axis:

  600 mm (23.6 in)

• Crossrail Vertical W-Axis :

  1,100 mm (43.3 in)

• Rapid Traverse X-Axis:

  20 m/min (787.4 ipm)

• Rapid Traverse Y-Axis:

  20 m/min (787.4 ipm)

• Rapid Traverse Z-Axis:

  8 m/min (314.9 ipm)

• Rapid Traverse W-Axis:

  6 m/min (236.2 ipm)

• Feedrate X, Y-Axis:

  1 to 10,000 mm/min (0.01 to 393.7 ipm)

• FeedrateZ-Axis:

  1 to 8,000 mm/min (0.01 to 314.9 ipm)

• Feedrate W-Axis:

  1 to 6,000 mm/min (0.01 to 236.2 ipm)

• Automatic tool changer (ATC) :

  40 tools
