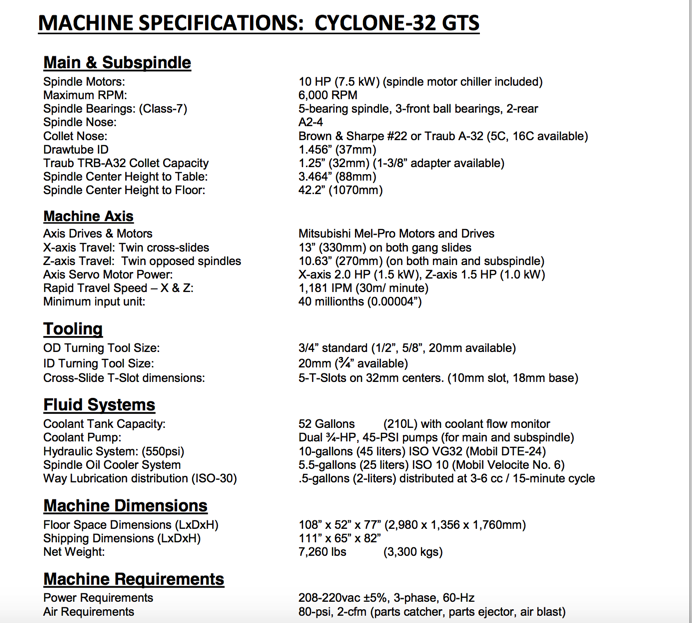

Ganesh Cyclone 32GTS 2014

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Table Size - W:

  30"

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Motor (HP):

  10 HP

• Spindle Speed:

  12,000 RPM

• Spindle Bearings:

  5-bearing spindle, 3-front ball bearings, 2-rear

• Spindle Nose:

  A-24

• Collet Nose:

  Brown & Sharpe #22 or Traub A-32

• Drawtube ID:

  1.456"

• Traub TRB-A32 Collet Capacity:

  1.25"

• Spindle Center Height to Table:

  3.464"

• Spindle Center Height to Floor:

  42.2"

• Axis Drives & Motors:

  Mitsubishi Mel-Pro Motors and Drives

• Axis Servo Motor Power:

  X-Axis 2 HP Z-Axis 1.5 HP

• Rapid Travel Speed (X/Z):

  1,181 IPM

• Minimum Input Unit:

  .00004"

• OD Turning Tool Size:

  3/4" standard

• ID Turning Tool Size:

  3/4"

• Coolant Tank Capacity:

  52 gallons

• Coolant Pump:

  Dual 3/4-HP, 45-PSI pump

• Hydraulic System (550 psi):

  10 gallons

• Spindle Oil Cooler System:

  5.5 gallons

• Way Lubrication Distribution:

  .5 gallons
