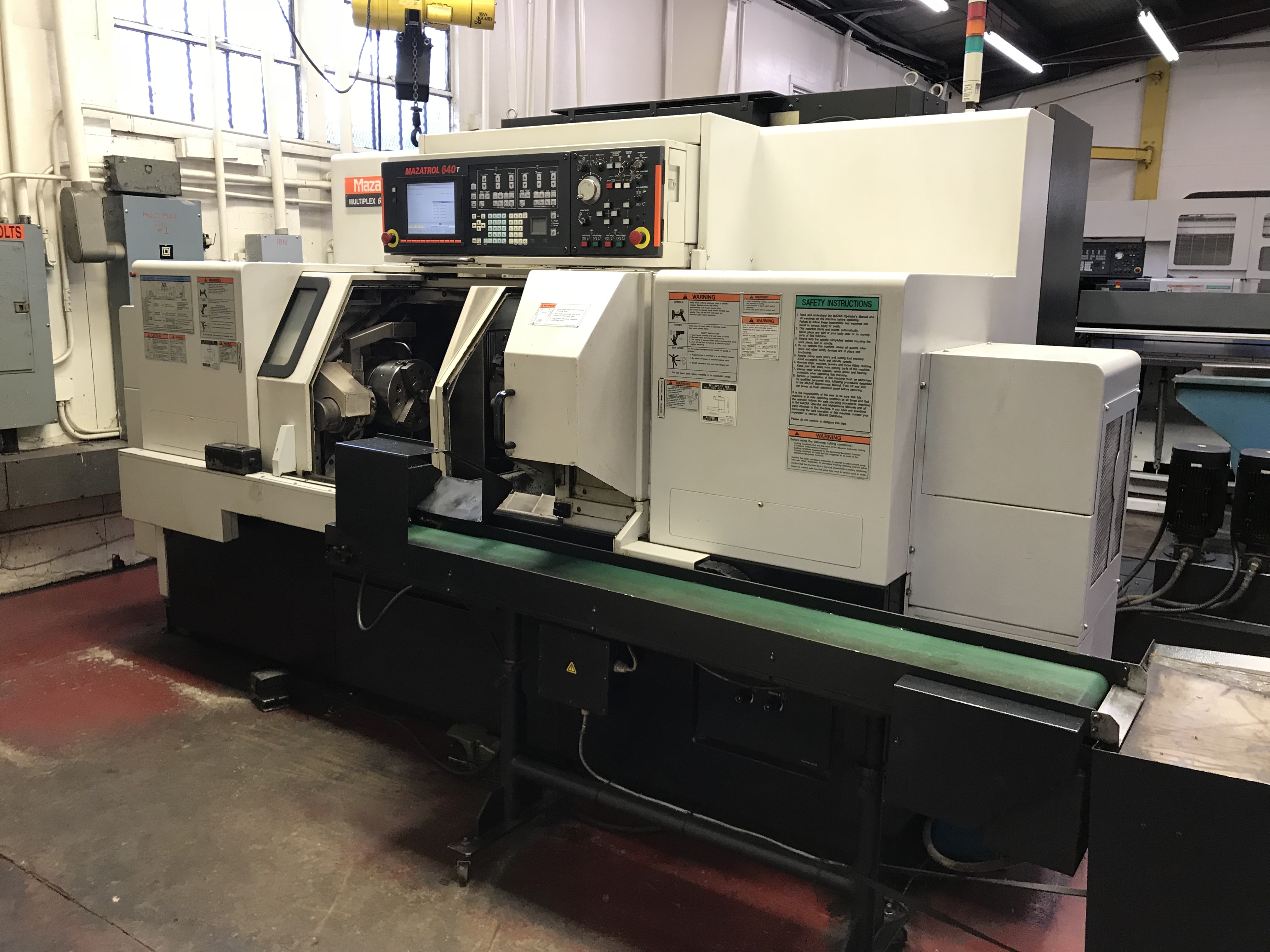

Mazak Multiplex 6200 2008

machine specifications

• Table Size - L:

  61"

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Resonator ( Type ):

  55

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Pallet Size (inches):

  25"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Max Turning Diameter:

  12.6"

• Max Machining Length:

  21"

• Bar Stock Capacity:

  2.0"

• Spindle Size:

  A2-6 / A2-6

• Spindle Speed:

  12,000 RPM

• Thru Spindle Hole Diameter:

  2.4" / 2.4"

• Index Increment:

  0.0001º

• Spindle Motor (HP):

  30HP

• Number of Turrets:

  2

• Turret Capacity:

  8 Positions

• Too Shank Size:

  1" Square / 1.5" Round / 0.790" Rotary

• Rotary Tool Spindle:

  4500 RPM

• Rotary Tool Spindle Power:

  5 HP

• Number of Simultaneous Cutting Tools:

  2

• C1 Axis Max Feed / Rapid Rate:

  360º / 555 RPM

• C2 Axis Max Feed / Rapid Rate:

  360º / 555 RPM

• X1 Axis Max Feed / Rapid Rate:

  9.060" / 1200 IPM

• X2 Axis Max Feed / Rapid Rate:

  9.060" / 1200 IPM

• Z1 Axis Max Feed / Rapid Rate:

  17.25" / 1300 IPM

• Z2 Axis Max Feed / Rapid Rate:

  19.37" / 1300 IPM
