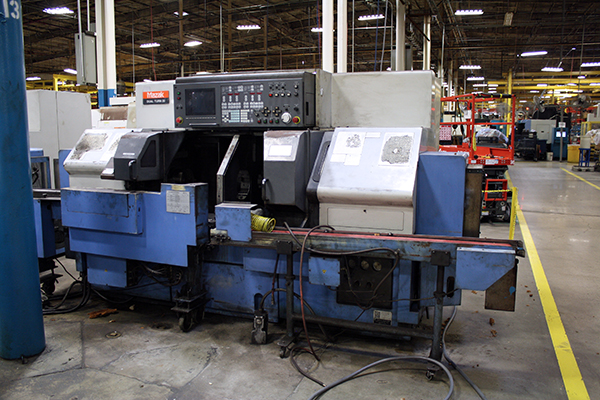

Mazak Dual Turn 20 1997

machine specifications

• Vertical Travel of Ram:

  4444

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Y - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Z-axis:

  197"/Min

• Number of Turrets:

  2 / Drum

• Type of Turrets:

  12 Position/Drum

• Turret Capacity:

  8 Positions

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Bore:

  2.4"

• Spindle Nose:

  A2-6

• Spindle Horsepower (Cont/30 Mins):

  15/20 A.C.

• Number of Speed Ranges:

  1

• Max. Cutting Dia.for Bar Work:

  2"

• Standard Cutting Diameter:

  10.00"

• Max. Cutting Length for Cutting Work:

  5.91"

• Total Weight (For Machine Only):

  14,250 Lbs.
