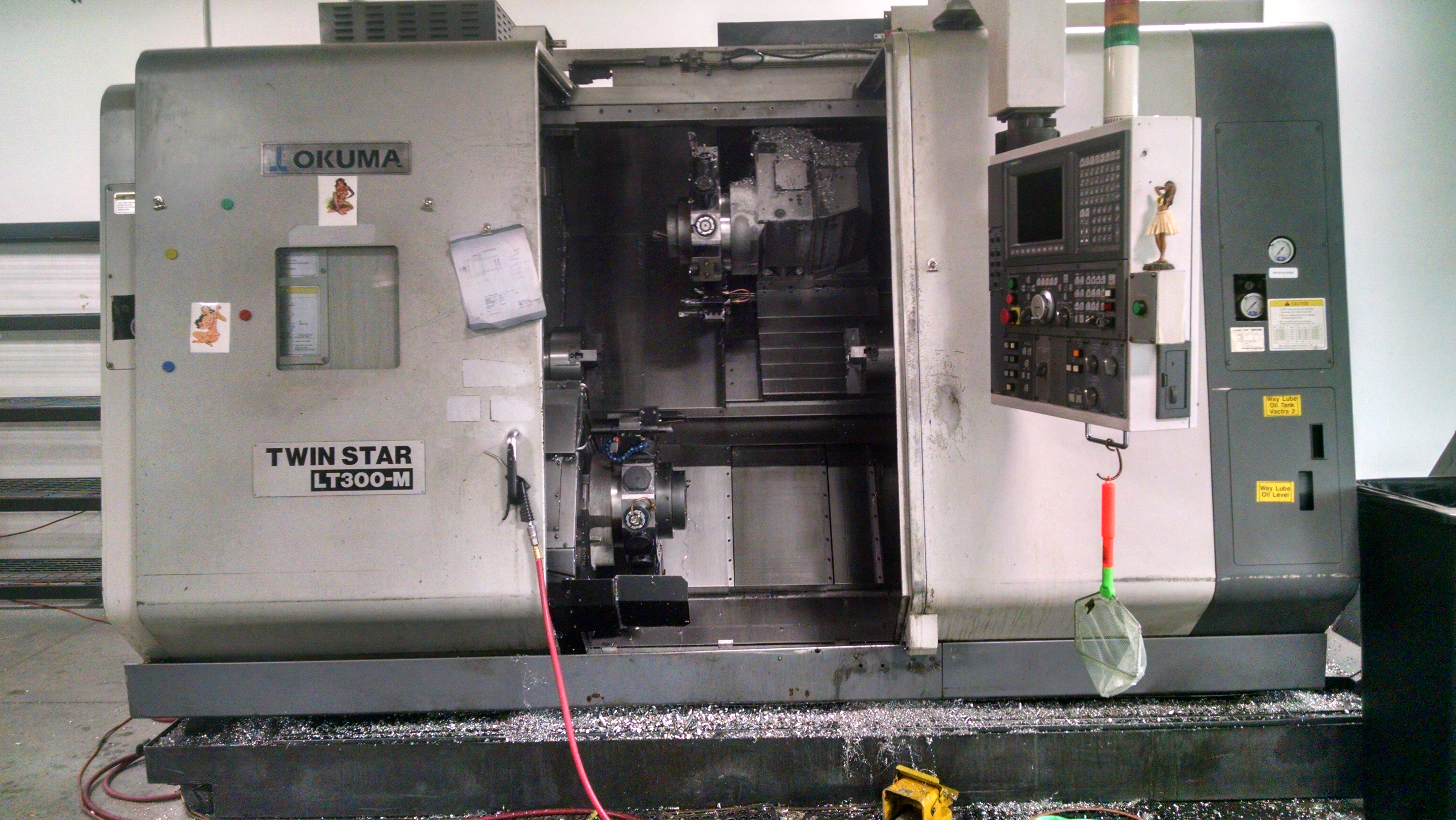

Okuma LT300M 2004

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Table Size - L:

  61"

• Main Spindle Turning Diameter:

  13.78"

• Max Turning Length:

  35"

• X1/X2 Axis Travel:

  10.63" / 9.06"

• Z Axis Travel:

  36.61"

• C Axis Movement (Both Spindles):

  .001 Deg.

• W-Axis (2nd Headstock):

  37.01"

• Spindle Nose/Bore:

  A2-8"/3.15"

• Spindle Motor:

  30 HP

• Spindle Speed:

  3,800 RPM

• Sub-Spindle Nose/Bore:

  A2-8" / 3.15"

• Rotary Speed:

  4,500 RPM

• Rotary Motor:

  10 HP

• Upper & Lower Turret:

  12 Positions - Both
