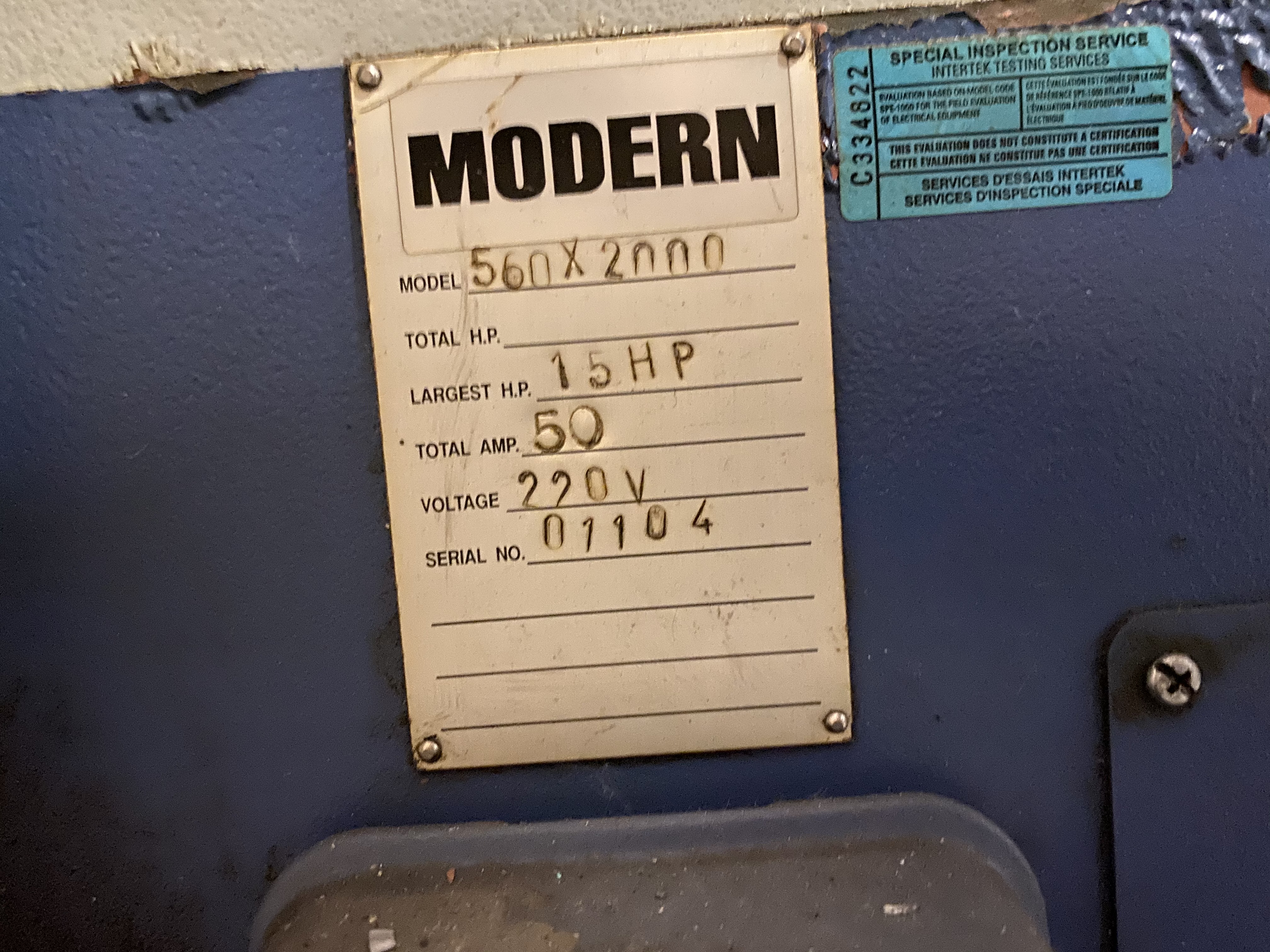

Modern Tool 560 x 2000

machine specifications

• Swing over Bed:

  22"

• Spindle Drive Motor:

  15HP/220V / 3PH

• Tailstock Quill Diameter:

  2-15/16"

• Number of feeds:

  36

• Type of Spindle Nose:

  D1-11

• Spindle Bore:

  4-1/16"

• Number of spindle speeds:

  12

• DISTANCE BETWEEN CENTERS:

  80"

• Gap Width in Front of Faceplate:

  10.62"

• Swing in Gap:

  30.8"

• Swing over cross slide:

  13"

• Bed Width:

  15.75"

• Total Travel of Top Slide:

  7.5"

• Height of Centers from Leg Bottom:

  42"

• Taper of spindle bore & center:

  MT No. 7 x No. 5

• Range of Spindle Speeds:

  8 - 800 RPM

• Gap Width in Front of Face Plate :

  10.62"

• Total Travel of Tailstock Quill:

  7" – MT#5

• Taper in Tailstock Quill:

  MT#5
