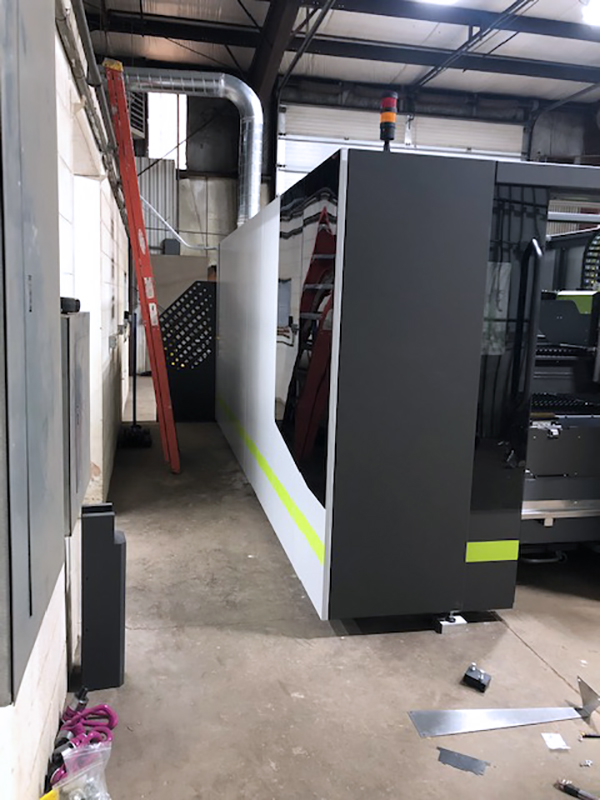

Bystronic DNE LC 3 2021

machine specifications

• Nominal Sheet Size:

  X 120 in Y 60 in

• Cutting Area X:

  122 in

• Cutting Area Y:

  62 in

• Cutting Area Z:

  4 in

• Max. positioning speed parallel axis x, y:

  3937 in/min

• Max. Simultaneous Positioning Speed:

  5511 in/min

• Averaged, bilateral position deviation of one axis M:

  ± 0.004 in

• Bilateral repeatability of positioning of one axis R±:

  0.002 in

• Edge Detection Accuracy:

  ± 0.019 in

• Max. Workpiece Weight:

  1984 lb

• Table Change Over Time:

  24 s

• Power:

  6000 W

• Wavelength:

  1 µm

• Pulse frequenzy:

  1 – 2500 HZ

• Stainless Steel:

  0.750 in

• Aluminum:

  0.750 in

• Brass:

  0.375 in

• Copper:

  0.375 in

• Total Electrical Consumption of System:

  25
