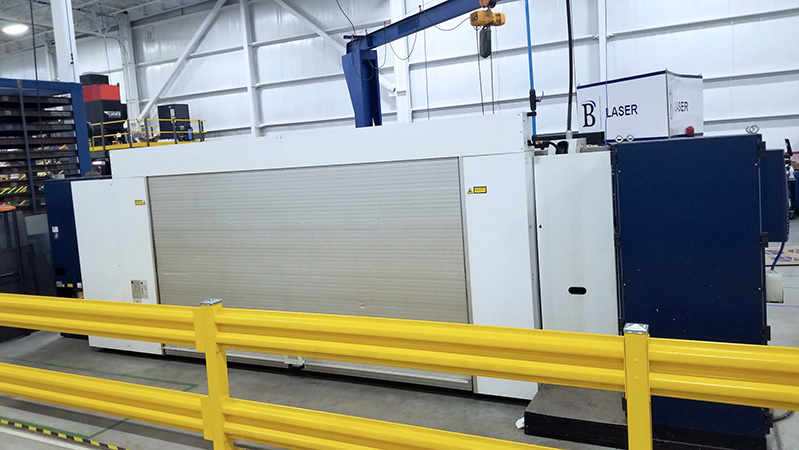

Mazak Optiplex 3015 Fiber II 2016

machine specifications

• Motion Drive System Design X, Y Axis:

  Rack and Pinion Drive

• Minimum Command Unit:

  0.0001 in

• Position detection system:

  Encoder

• Display screen:

  19 in SXGA Color TFT

• CPU:

  64 bit

• Total Electrical Requirement:

  71 kVA

• Repeatable Accuracy X, Y axis:

  0.0012 in

• Positioning Accuracy Z Axis:

  0.0004 in/3.94 in

• Positioning Accuracy X, Y Axis:

  0.0002 in/19.69 in

• Rapid travel speed (X, Y):

  4,724 IPM

• Number of Control Axis:

  3

• Z axis:

  Ball Screw Drive

• Power Output:

  4,000 Watts

• Max Thickness Aluminium:

  0.63”

• Max Thickness Stainless Steel:

  0.75"

• Max Thickness Mild Steel:

  1.0”

• Work Table Height:

  35.43

• Z-Axis Travel:

  4.33"

• Y-Axis Travel:

  62.80"

• X-Axis Travel:

  122.05"

• Max Workpiece Dimensions:

  60.039" x 120.078"

• Machine Structure:

  Flying Optics

• Resonator:

  IPG Fiber Laser Source
