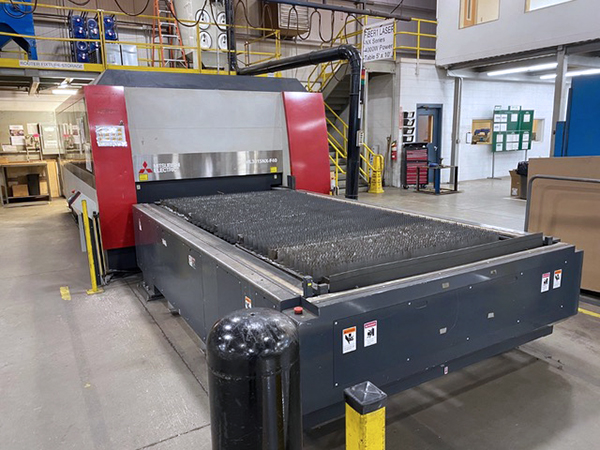

Mitsubishi ML3015NX-F40 4KW Fiber 2015

machine specifications

• Travel Drive Method:

  X,Y,Z simultaneous 3 axes

• Laser Wave Length:

  1.07 micron

• Pallet Changer Drive Mechanism:

  chain

• Pallet Change Time:

  approximately 35 seconds

• Drive Motor Type:

  Intelligent AC servo

• Min. command input:

  .001 mm/.0001"

• Simultaneous:

  6680 IPM

• Single Axis:

  4724 IPM

• Table Pass Height:

  33.5"

• Max Processing Feedrate:

  2360 IPM

• Max. Work piece Size:

  120" x 60"

• Z-Axis Stroke:

  4.7"

• Y-Axis Stroke:

  62.99"

• X-Axis Stroke:

  125.98"

• Control Method:

  Power feedback

• Machine Structure:

  Precision rack and pinion with linear Z-axis

• Excitation method:

  Ytterbium Doped fiber

• Wave length:

  1.07 micron

• Frequency range:

  100-3000 Hz

• Duty range:

  5-100 percent

• Output power range:

  5-100 percent

• Rated power output:

  4000 watts

• Electrical Requirements:

  Motions system control and oscillator: 208 VAC +/-
