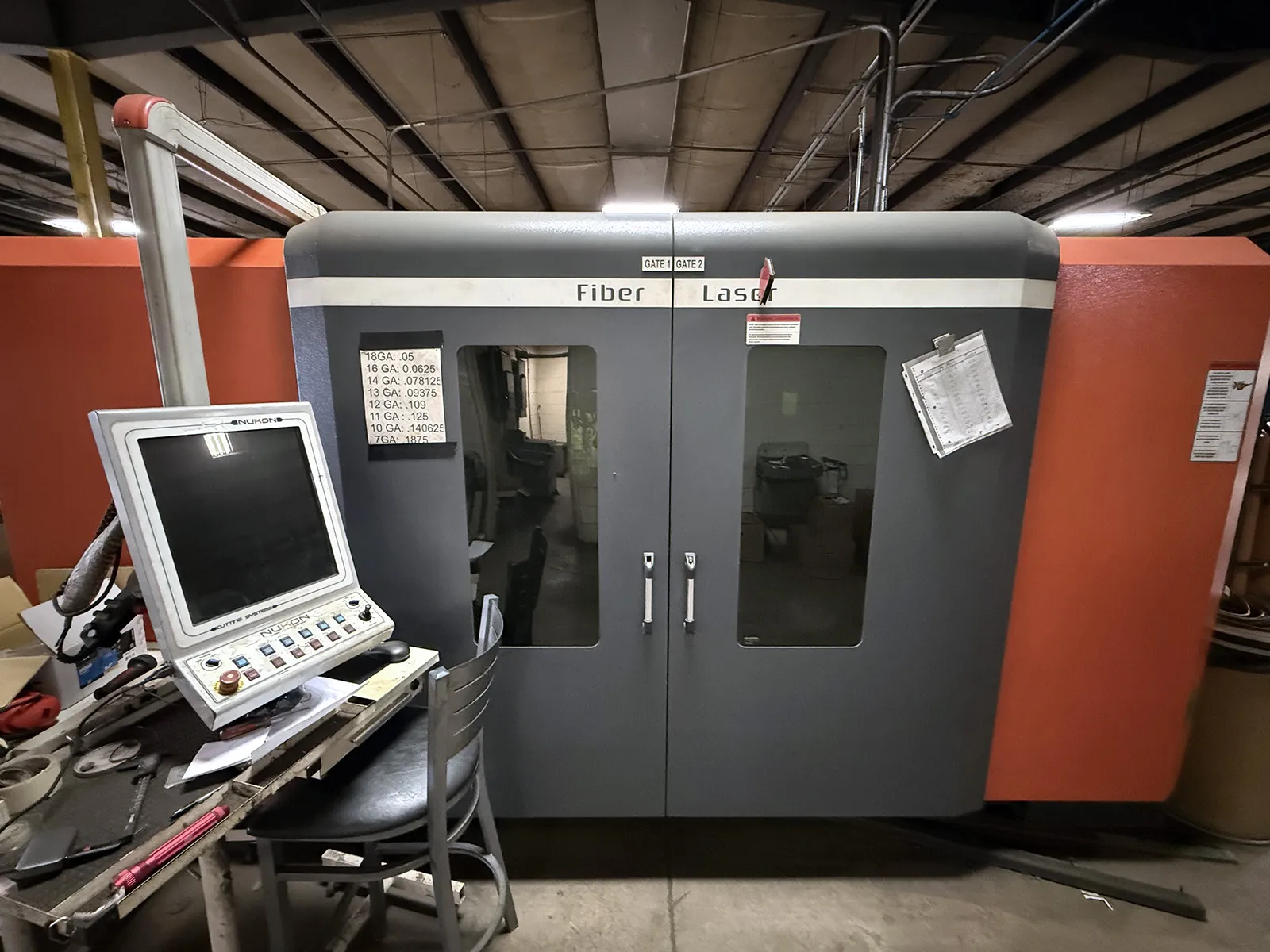

Nukon 12525 2016

machine specifications

• Table Size:

  8'x 40'

• Travels:

• Sheet / table size:

  99.61" × 474.41"

• Axis Travels:

• X Axis:

  474.41"

• Y Axis:

  99.61"

• Z axis:

  5.71"

• Working table height:

  35.43"

• Performance:

• Acceleration:

  472.44 in/s²

• Max axis speed (X/Y simultaneous):

  4,133.86 in/min

• Positioning accuracy (Pa):

  0.00394"

• Max loading capacity:

  30,865 lb

• Shuttle table change time:

  125 sec

• Control panel:

  19" multitouch screen

• Assist gas pressure:

• Assist gas pressure - O₂:

  ~218 psi (15 bar)

• Assist gas pressure - N₂:

  ~363 psi (25 bar)

• Power consumption (4 kW column):

  32 kVA, 380–400V, 3-phase ±10%

• Cutting Capacity:

• Mild Steel:

  0.787" (20 mm)

• Stainless Steel:

  0.472" (12 mm) / up to 0.591" (15 mm*)

• Aluminum:

  0.394" (10 mm) / up to 0.472" (12 mm*)

• Brass:

  0.236" (6 mm) / up to 0.315" (8 mm*)

• Copper:

  0.236" (6 mm) / up to 0.315" (8 mm*)

• APPROX MACHINE WEIGHT:

  110,231 lb
