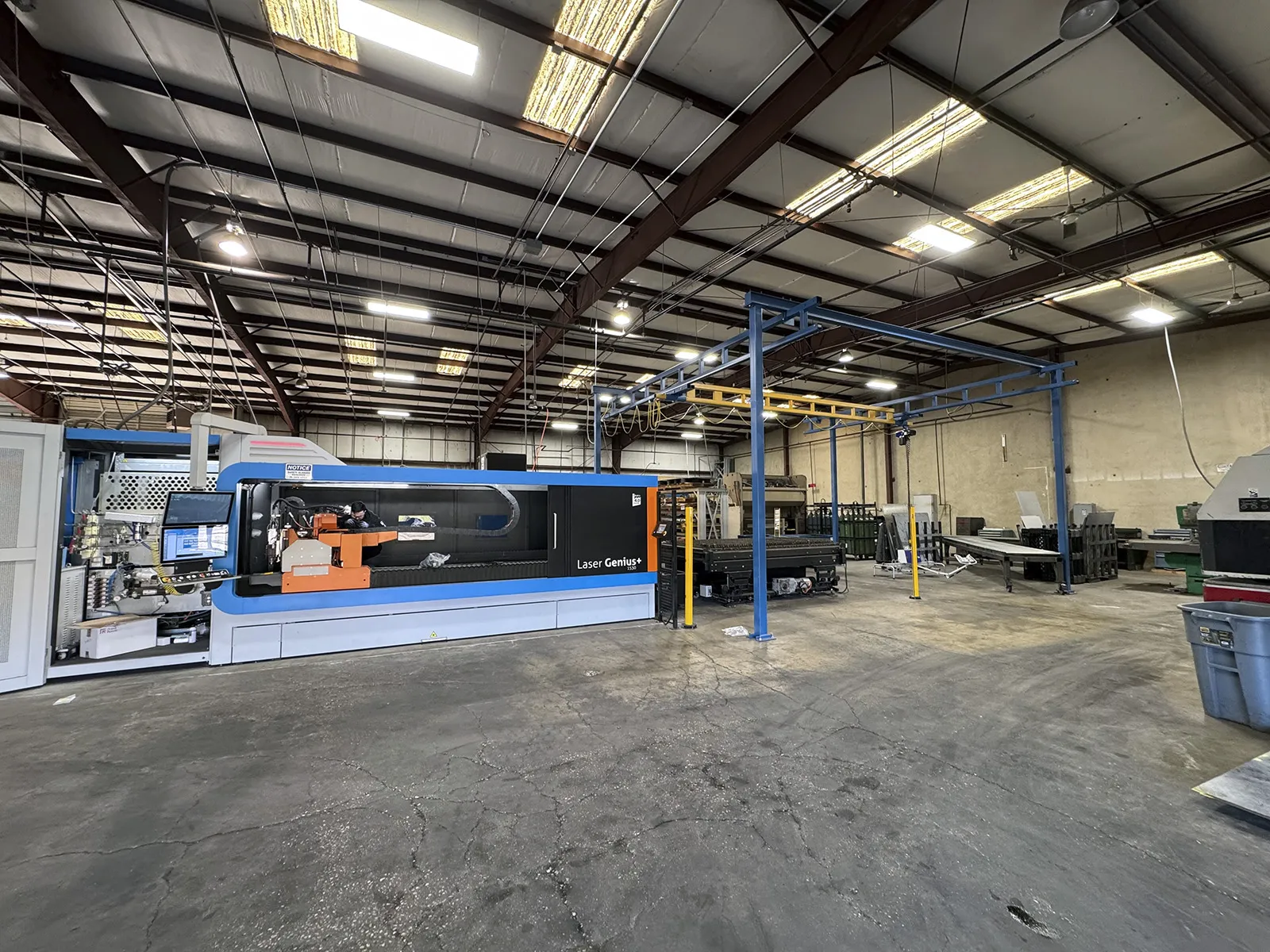

Prima power Laser Genius + 2022

machine specifications

• Power:

  480V / 3 Phase / 60 Hz

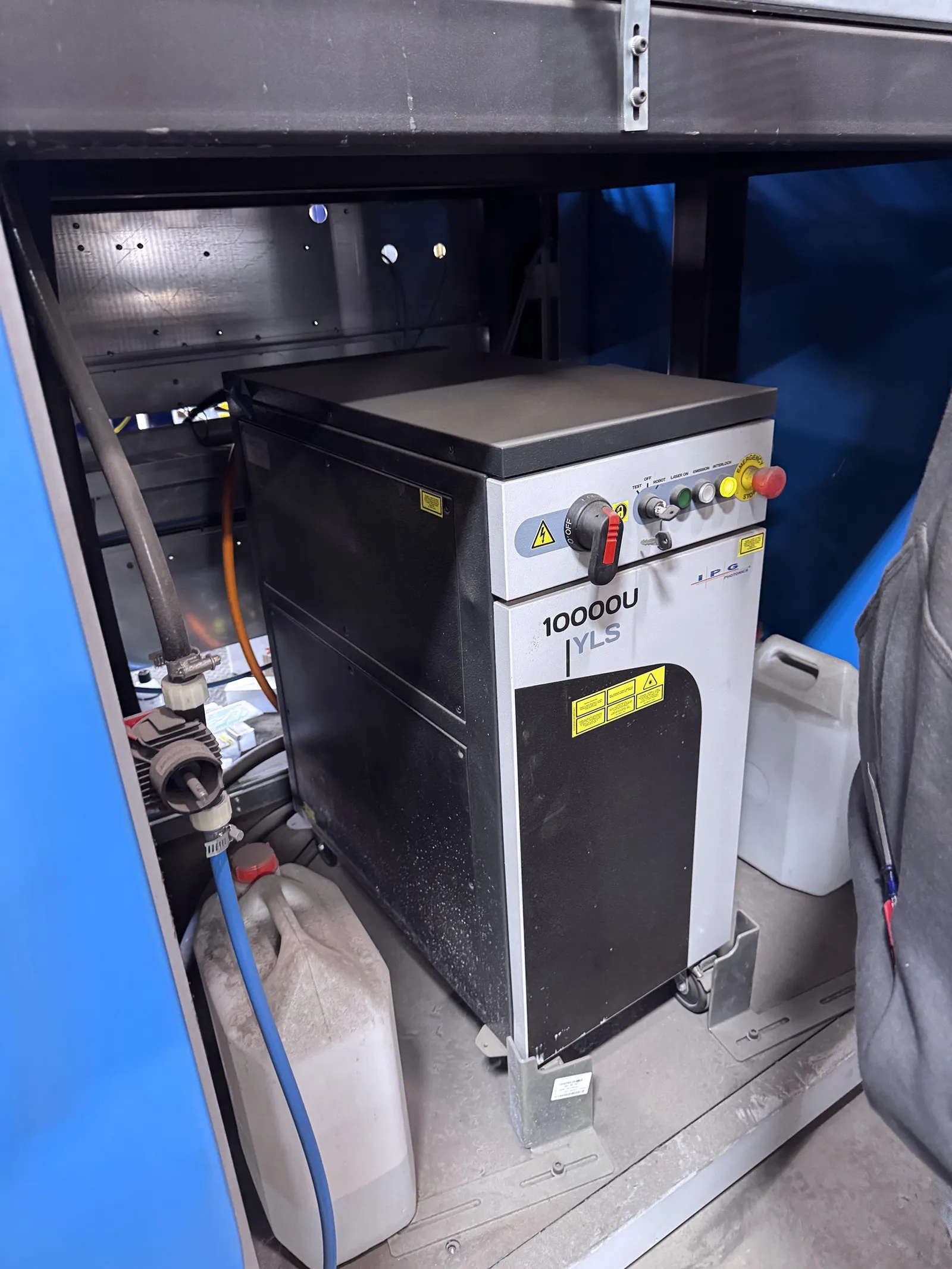

• Laser Source:

  IPG YLS-10000U Fiber Laser (10 kW)

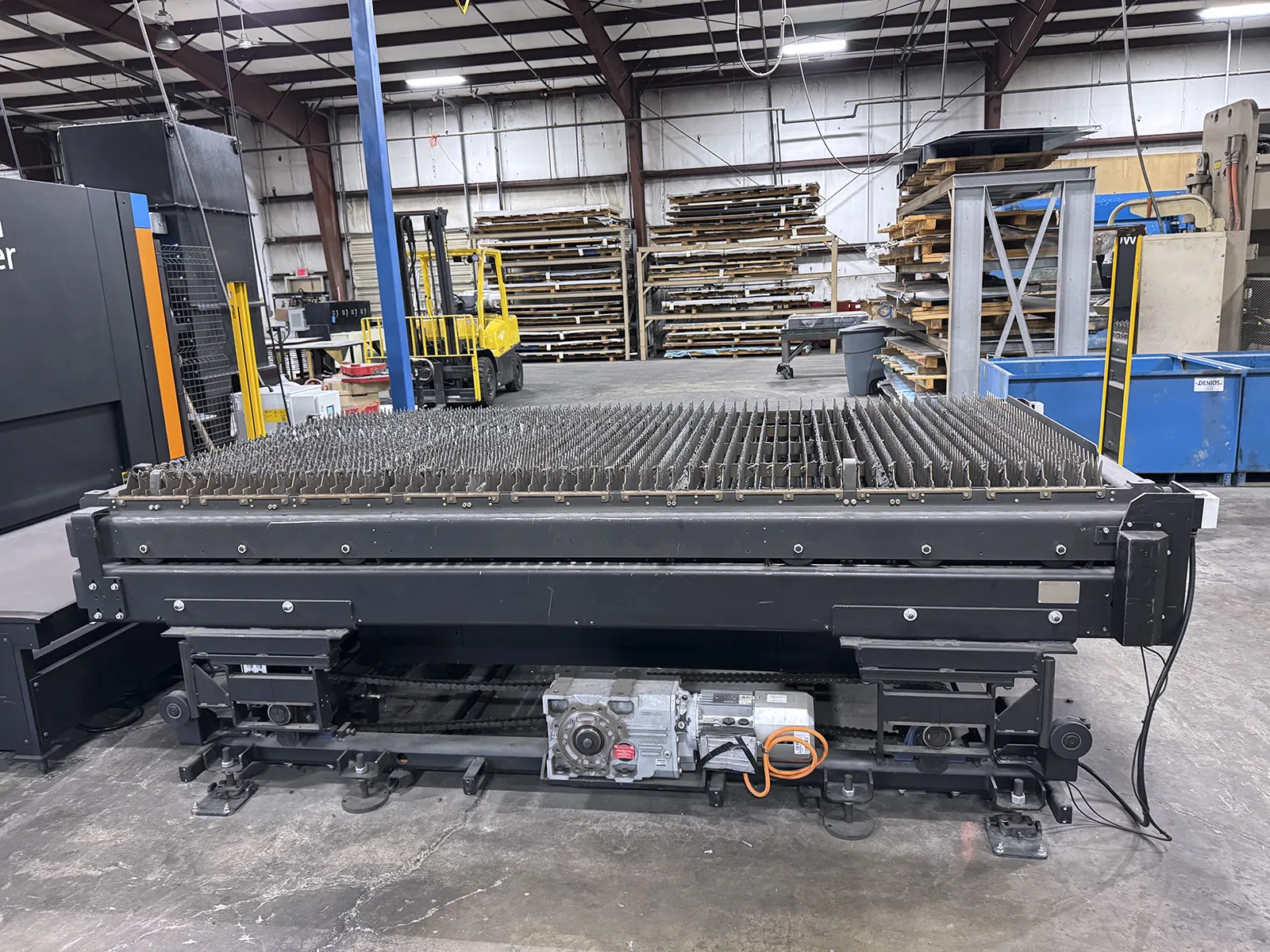

• Table Size:

  5' x 10' (1500 x 3000 mm)

• Country of Manufacture:

  Italy

• Cutting Capacity:

• Mild Steel:

  1.25" (32 mm)

• Stainless Steel:

  1.5" (40 mm)

• Aluminum:

  1.0" (25 mm)

• Brass:

  0.50" (12 mm)

• Copper:

  0.50" (12 mm)

• Laser Power:

  10,000 Watts

• Positioning Accuracy:

  ±0.0016" (±0.04 mm)

• Repeatability:

  ±0.0008" (±0.02 mm)

• Simultaneous Axis Speed:

  Up to 11,000 IPM (280 m/min)

• Acceleration:

  Up to 2.8 G

• CNC Control:

  Prima Power Open CNC Platform

• Drive System:

  Linear Motors

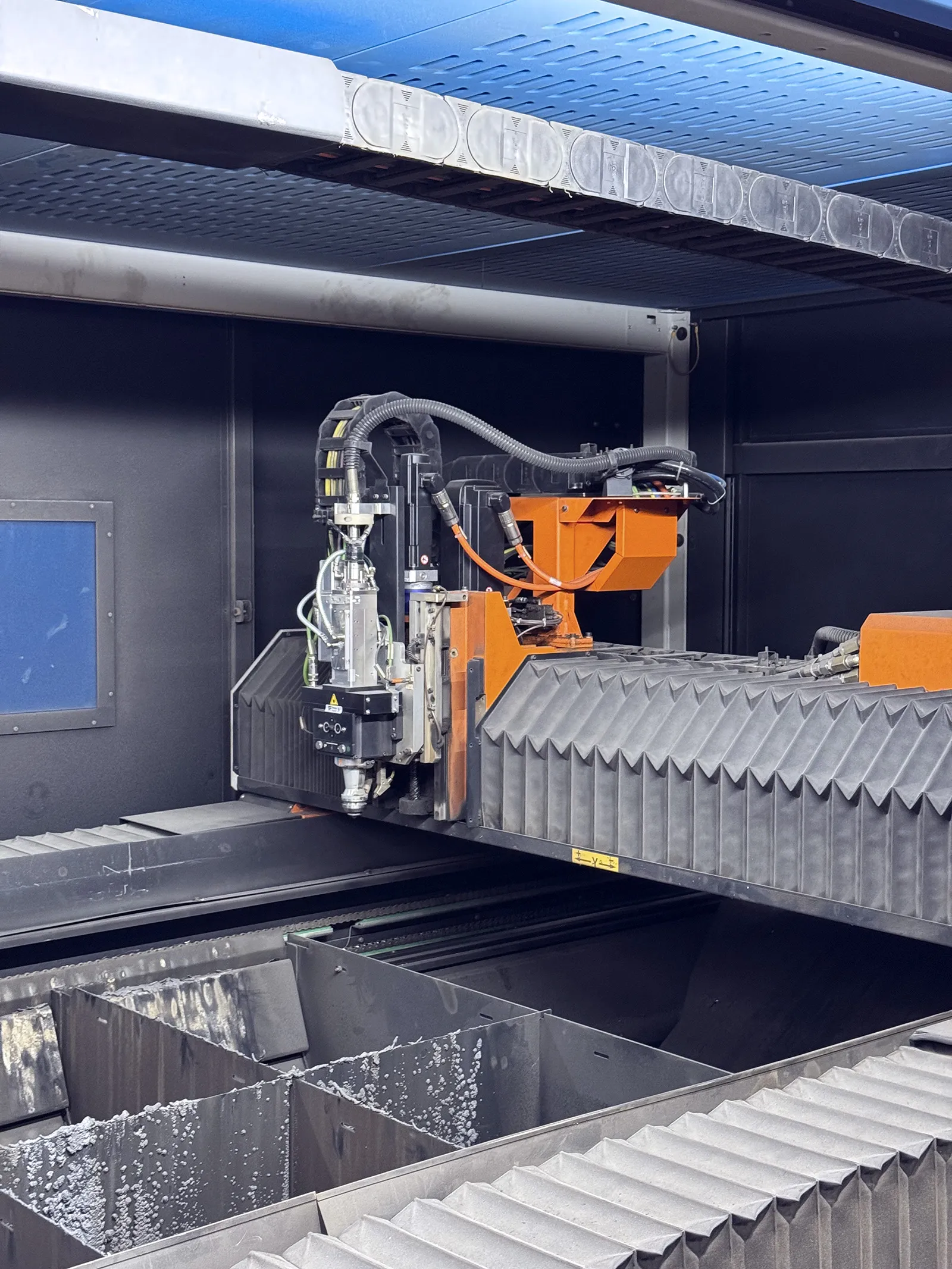

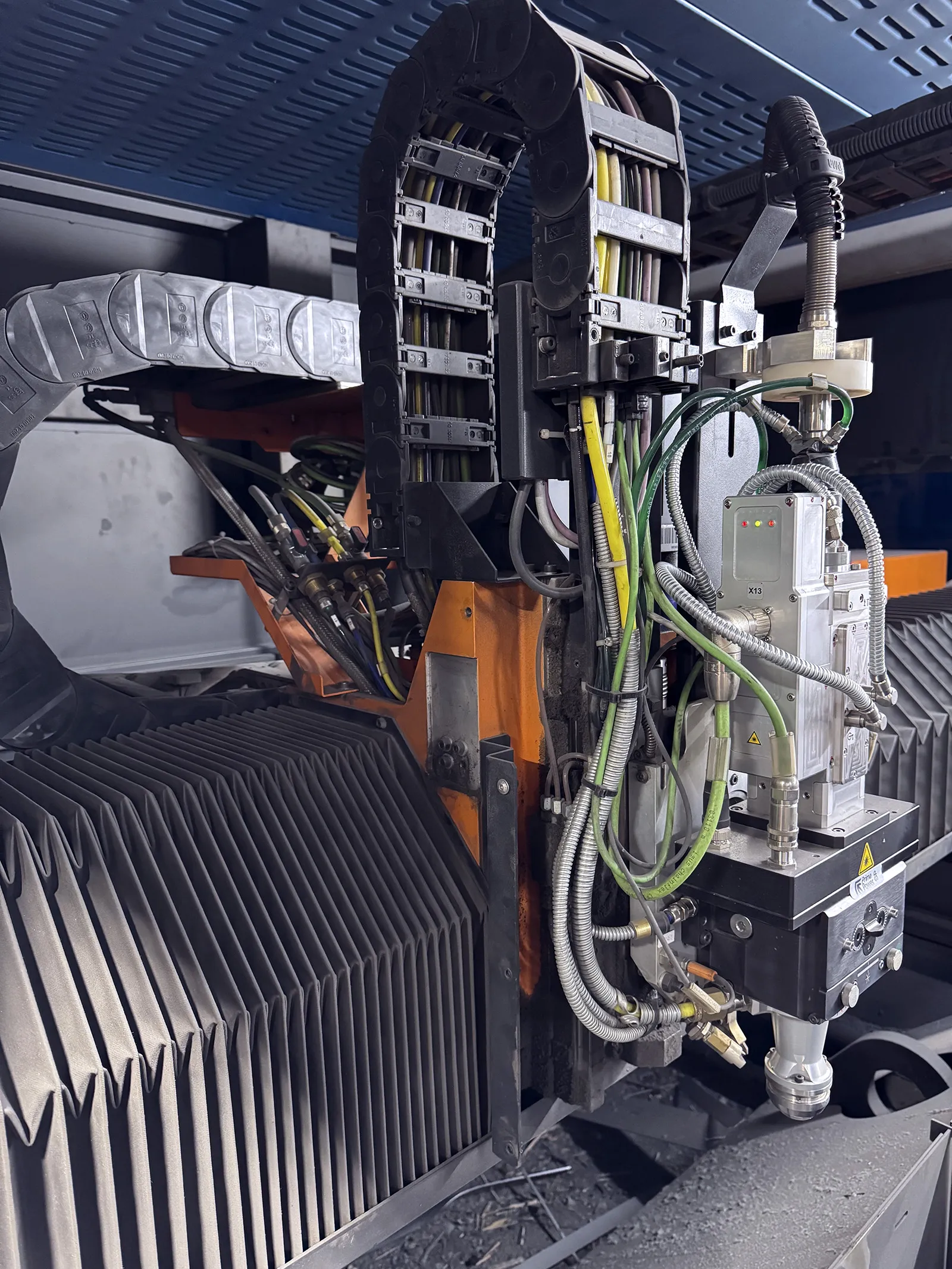

• Cutting Head:

  Prima Power High-Dynamics Autofocus Head

• Pallet Exchange Time:

  Automatic

• Electrical Requirements:

• Volt:

  480 Volt

• 3 Phase:

• 60 Hz:

• Total Load Current:

  122.12 Amps

• Largest Motor FLA:

  40 Amps

• Recommended Service:

  150-200 Amp Dedicated Circuit
