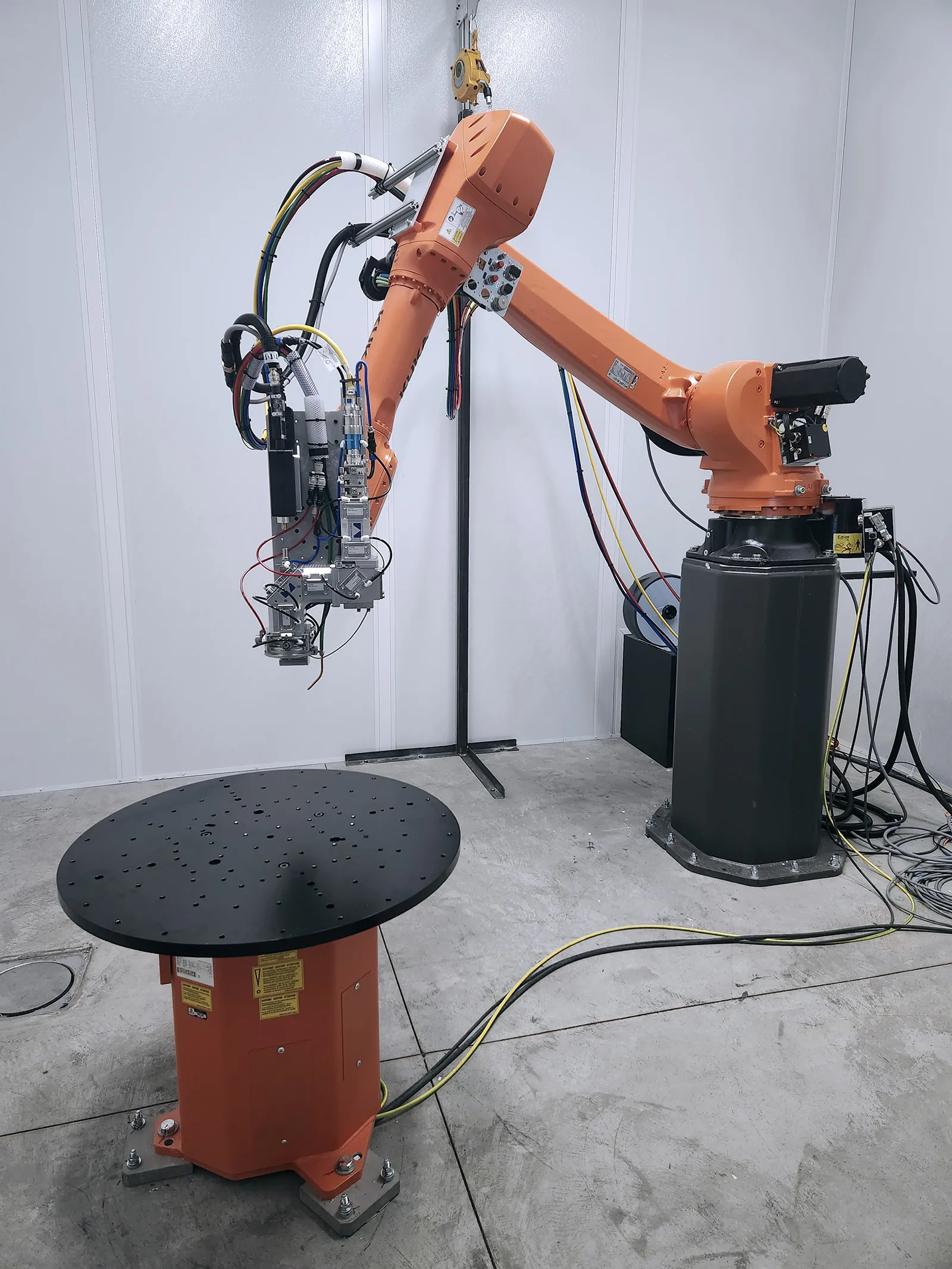

Trumpf 6kw WLAM / DED Cell 2022

machine specifications

• Power Source:

  TruFiber 6000S - 6kw

• KUKA ROBOT KR 50 R2500:

• Maximum Reach:

  98.4 inches

• Maximum Payload:

  134.5 lbs

• Number of Axes:

  6

• Repeatability:

  ±0.0002 inches

• Coax Printer:

• Maximum authorized laser power:

  6 kW

• Double tilted setup of the optic (2-fold direction change):

• Collimation length Fc:

  3.93"

• Focusing length Ff:

  6.3"
