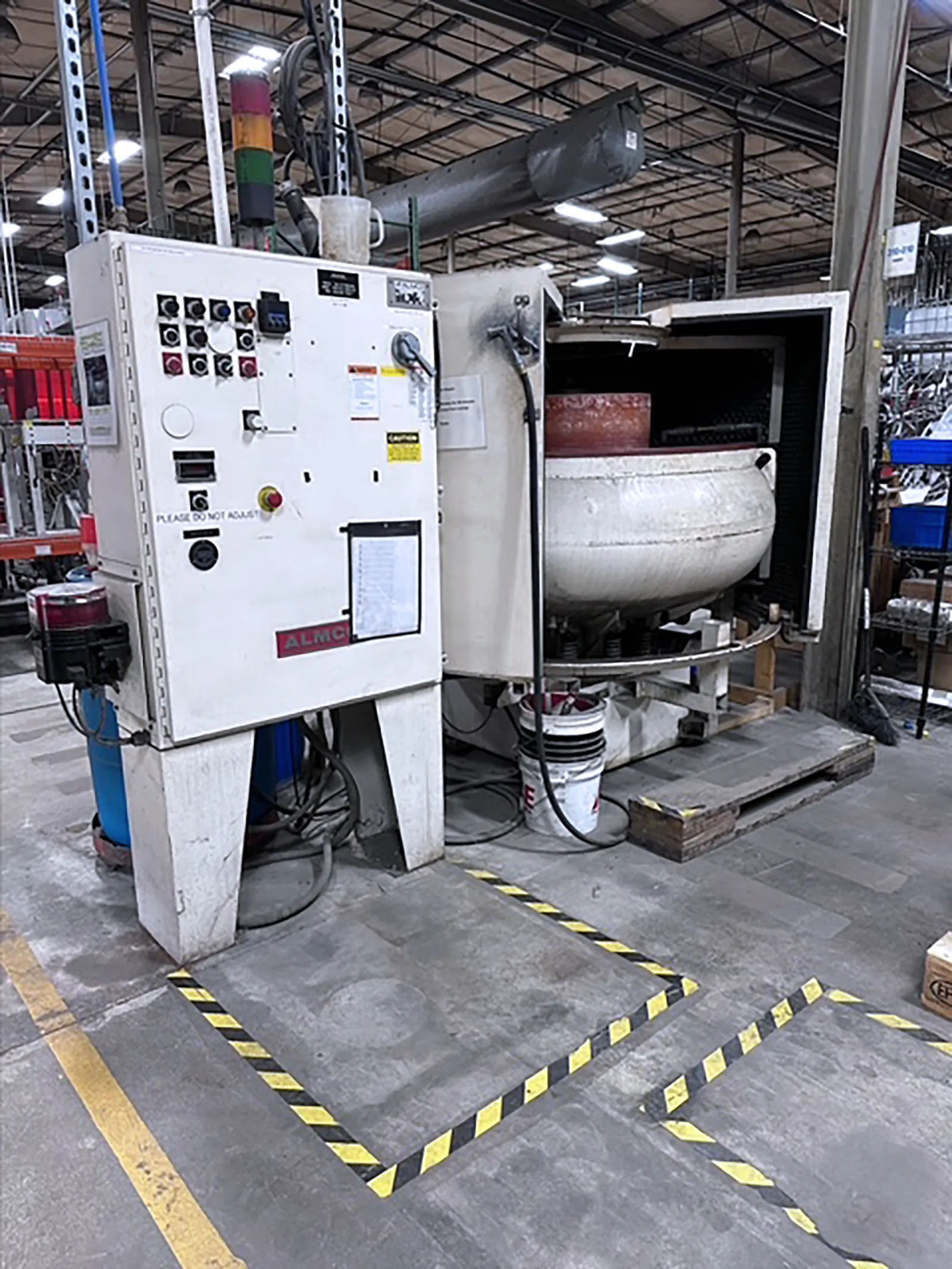

Almco OR-23V

machine specifications

• Capacity:

  23 cu. ft.

• Length:

  80" (including electrical control box)

• Width:

  66"

• Height:

  55"

• Diameter:

  66"

• Blade Cross Section:

  19" Dia.

• Lining:

  1" thick polyurethan (hot pour), 90 durometer

• Power Unit:

• HP:

  10 HP

• 1800 RPM:

• Ball Bearing Motor for 460 volts:

• 3 Phase:

• 60 cycle operation powered by an AC Variable Frequency Inverter:

• Pullet is connected by a V-belt to a companion sheave on the vibratory mechanism:

• Frequency of vibration is variable from 900 to 1400 cycles per minute:

• All moving drive components are well guarded for operator protection:

• **GENERAL DESCRIPTION **:

• Energy Efficient "OR" Series Machine is composed of the following basic components::

• 1. The Supporting Base and Framework:

• 2. The Drive Unit:

• 3. Almco's Natural Contour Molded Urethane Lined Tub:

• 4. The Vertical Shaft Vibrator:

• 5. The Electrical Control Enclosure:
