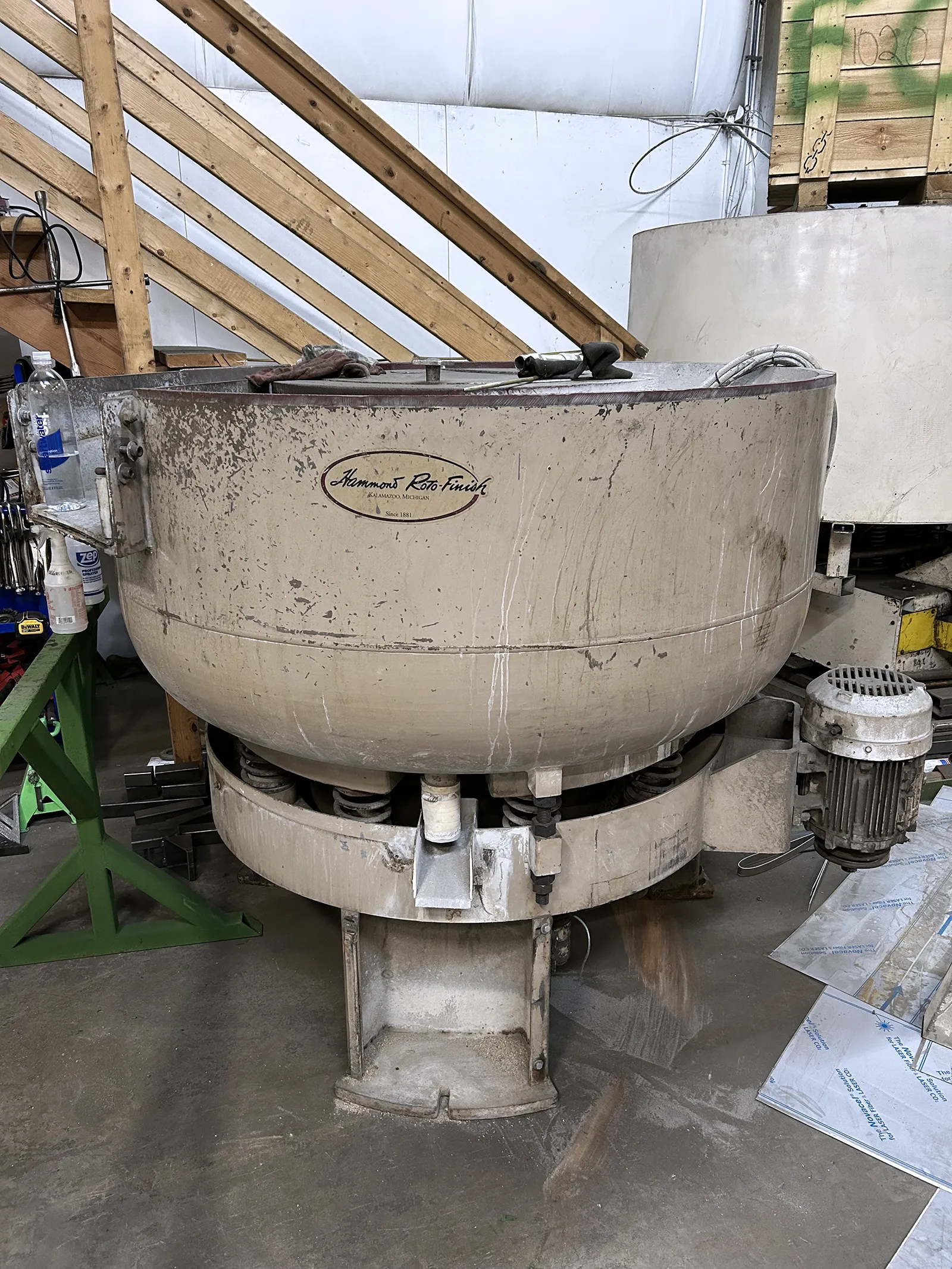

Roto-Finish ER-1011 2006

machine specifications

• Number of Drains:

  3

• Driven Sheave P/N:

  SHS1AB0860001

• Shaft Speed (RPM):

  1264.6

• Belt Size:

  B-98

• Machine Amplitude (mm):

  4

• DBA w/ & w/o Noise Cover:

  82 W/O Cover

• Process Compound:

  L-620

• Compound Pump Settings:

  10

• Water Flow Rate (GPH):

  10

• Driven Sheave Pitch Dia:

  8.6"

• Drain Diameter:

  4 INCH

• Drain Operating & Size:

  1/8 SLOTS

• Media Type:

  ceramic

• Media Shape:

  ace

• Media Size:

  5/8 x 1/4

• Separation Screen Type:

  wire mesh

• Separation Screen Opening:

  1 1/2

• Screen Coating Type:

  plastisol

• Number of Drains::

  3

• A Overall Diameter:

  61.25"

• B Overall Height:

  55.25"

• C Process Channel Width:

  12.50"

• H Center Column Diameter:

  33.25"

• D Screen Deck Width:

  12.5"

• E Screen Deck Height:

  44.0"

• F Base Diameter:

  57.0"

• G Drain Size:

  4.0"

• Motor Horse Power:

  7.5

• 460 Volts Amp Load:

  14.0

• 220 Volts Amp Load:

  25.0

• Approximate Shipping Weight:

  5,000lbs

• Index Plate Setting:

  9

• Master Weight P/N:

  964-0013

• Weight Segment P/N:

  964-0009

• Number of Segments:

  8

• Working Capacity:

  10.0
